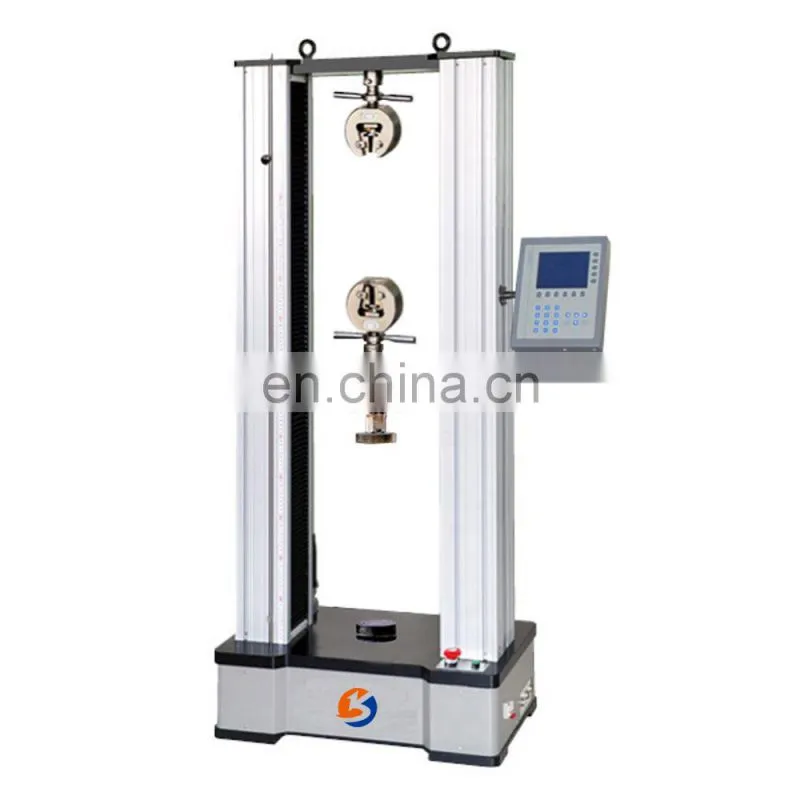

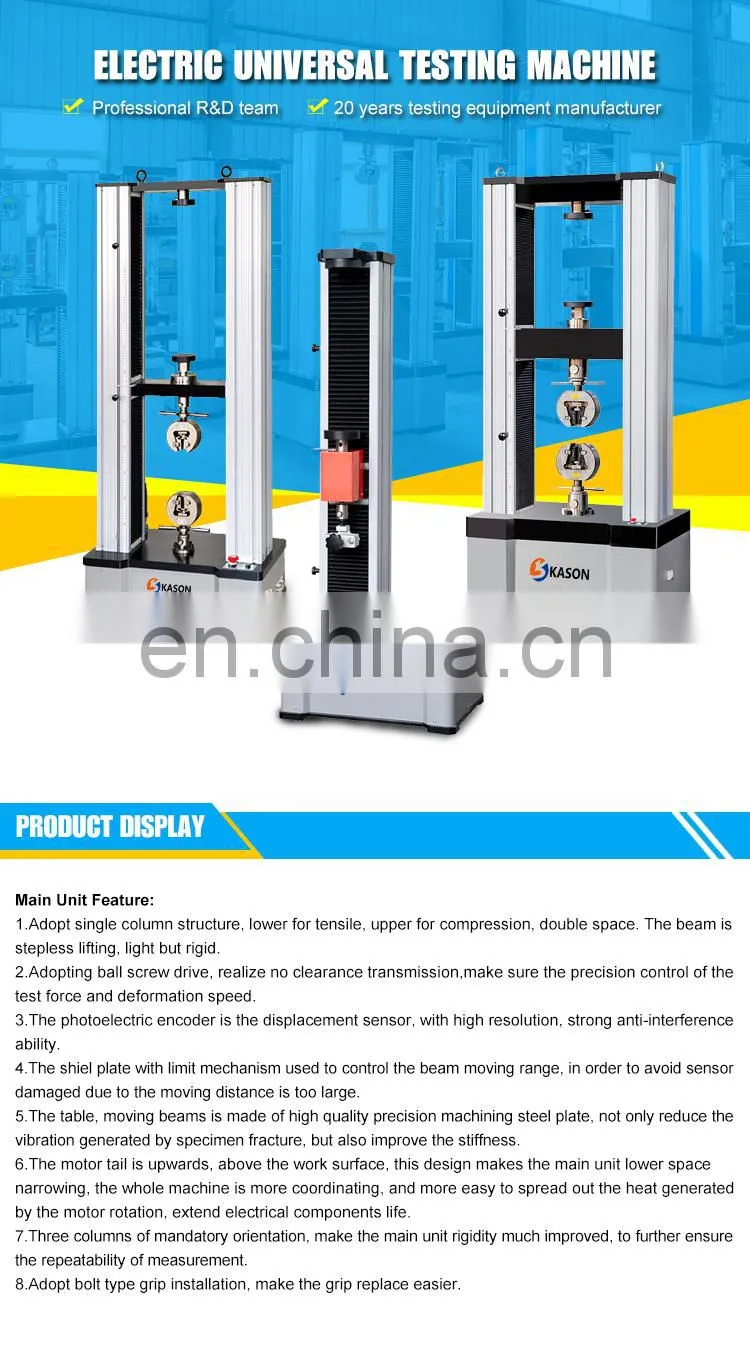

WDS-100 100kN Digital Display Electronic Universal Tensile Testing Machine Price

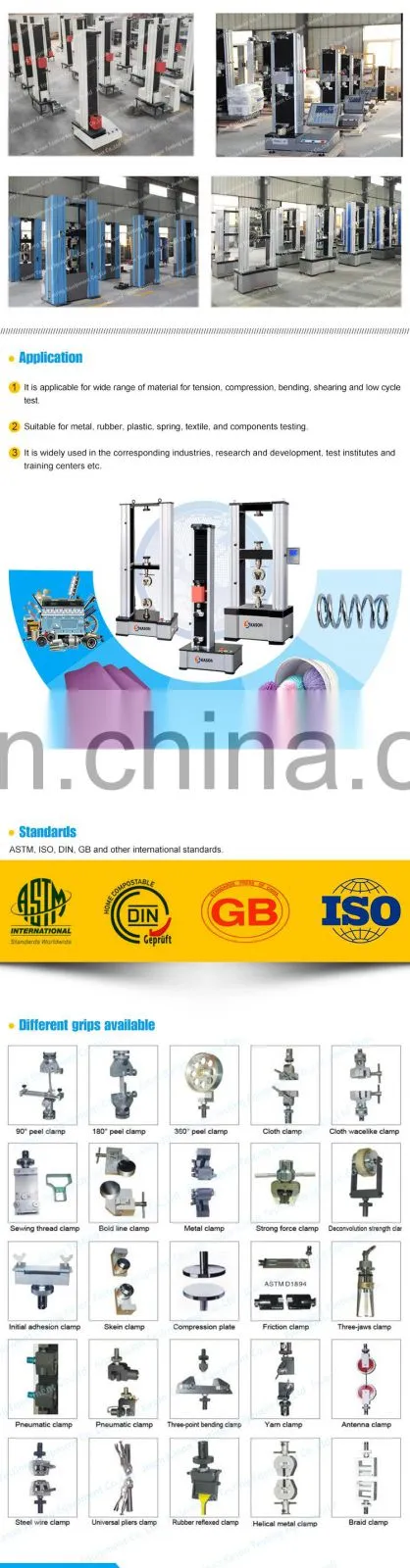

1.Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test.
Suitable for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training
centers etc.
2.Standard:
ASTM, ISO, DIN, GB and other international standards.

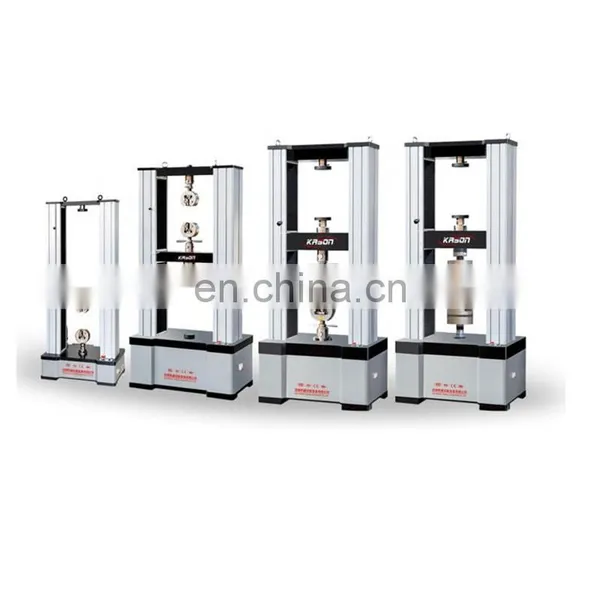

3.Main Technical Parameters:
|
Model |
KASON WDS-50 |
KASON WDS-100 |
KASON WDS-200 |
KASON WDS-300 |
|||
|
Load frame |
|||||||
|
Max. Load(kN) |
50 |
100 |
200 |
300 |
|||
|
Tensile space(mm) |
700 |
700 |
550 |
550 |
|||
|
Compression space(mm) |
700 |
700 |
550 |
550 |
|||
|
Travel distance(mm) |
1150 |
||||||
|
Ambient temperature |
+10 ... +35 °C |
||||||
|
Conformity |
ISO 9000 and CE |
||||||
|
Force transducer |
|||||||
|
Load accuracy |
Class 1 |
||||||
|
Load range |
2%~100%F·S |
||||||
|
Test speed(mm/min) |
0.05-1000stepless arbitrary setting |
||||||
|
within ±1% / ±0.5% of set speed |
|||||||
|
Power supply |
AC220V±10%,50Hz/60Hz(can be customized) |
||||||
