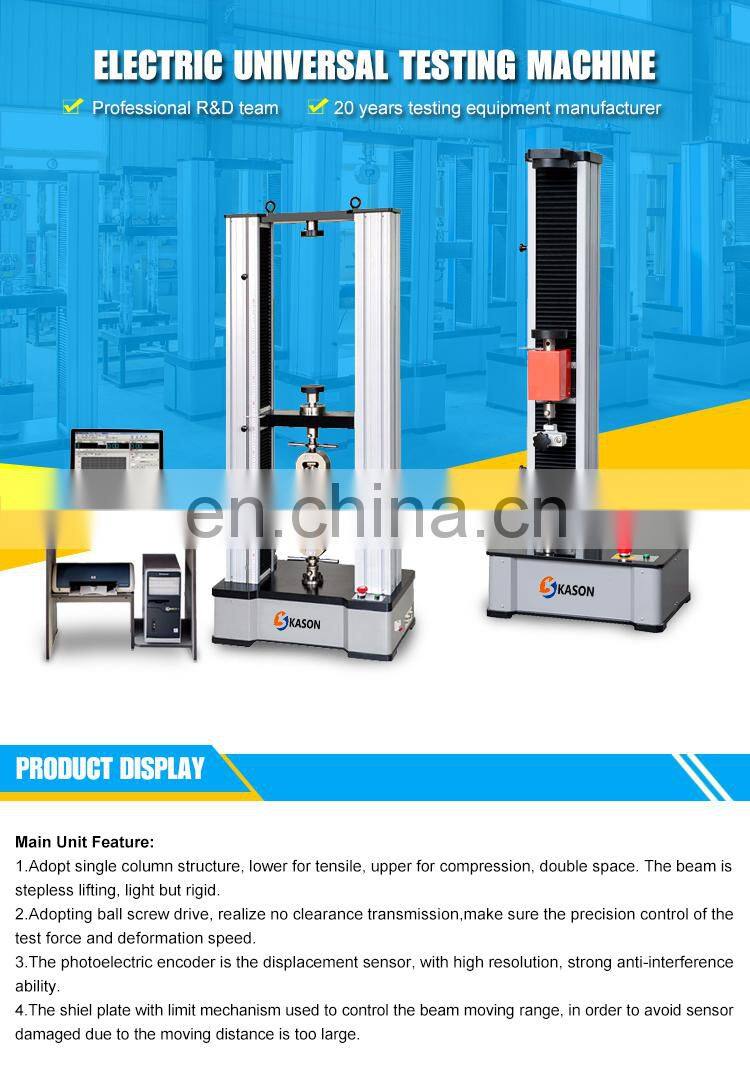

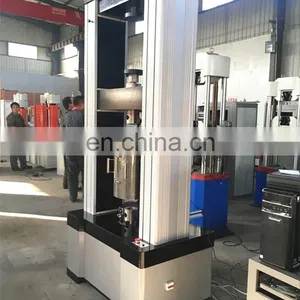

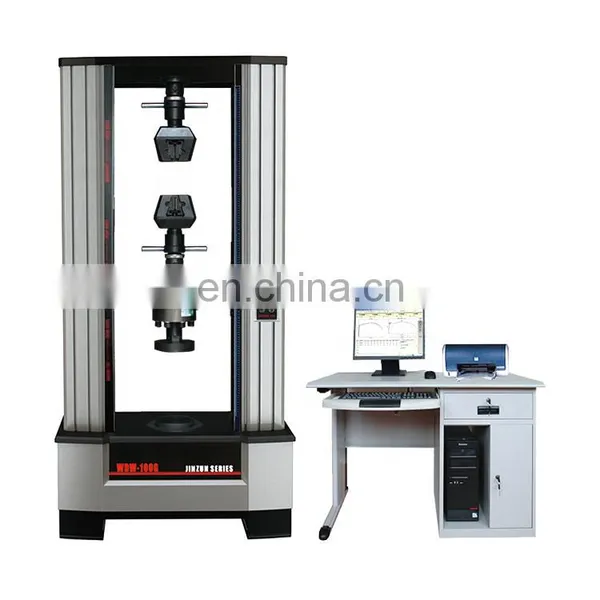

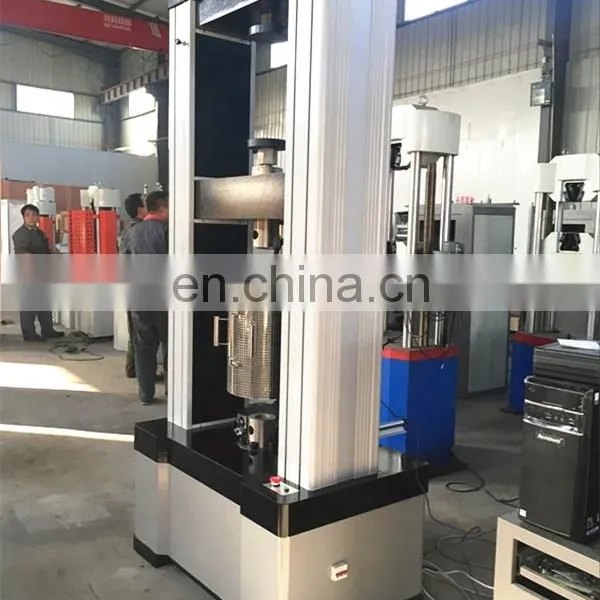

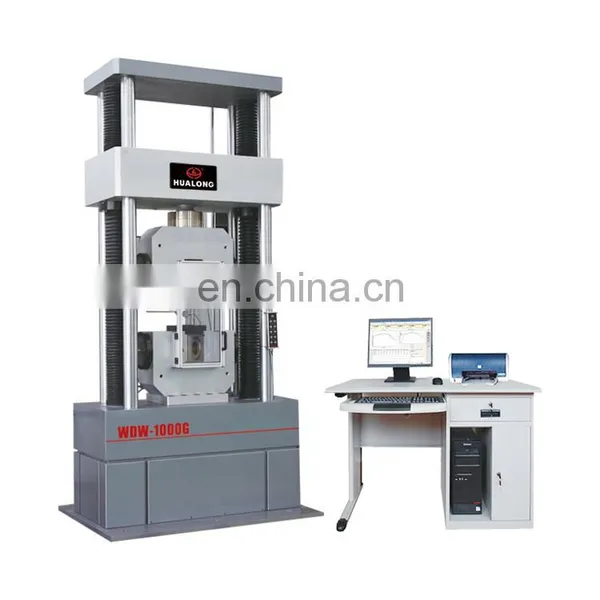

KASON electronic price computerized universal testing machine with high quality
|
|
|
Specifications: |
|
|||||
|
Model |
ETM503 |
ETM104 |
ETM204 |
ETM304 |
ETM504 |
ETM105 |
|
Columns |
Double Column |
|||||
|
Load Capacity (kN) |
5 |
10 |
20 |
30 |
50 |
100 |
|
Test Grade |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Testing Force Accuracy |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Testing Force Range |
0.4%-100%FS |
0.4%-100%FS |
0.4%-100%FS |
0.4%-100%FS |
0.4%-100%FS |
0.4%-100%FS |
|
Force Resolution |
1/300000 |
1/300000 |
1/300000 |
1/300000 |
1/300000 |
1/300000 |
|
Displacement Accuracy |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Displacement Resolution |
0.05mm |
0.05mm |
0.05mm |
0.05mm |
0.05mm |
0.05mm |
|
Speed Range (mm/min) |
0.01-1000 |
0.01-1000 |
0.01-1000 |
0.01-1000 |
0.01-1000 |
500 |
|
Control Accuracy |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
Max. Tensile Testing Space(mm) |
670 |
670 |
670 |
770 |
770 |
650 |
|
Max. Compression Testing Space(mm) |
900 |
900 |
900 |
1000 |
1000 |
1000 |
|
Test width (mm) |
450 |
450 |
450 |
450 |
450 |
550 |
|
Compression Platen |
80mm |
80mm |
80mm |
80mm |
80mm |
|
|
Load cell |
High-precision USA load cell offers high stiffness, high stability, and high linearity Over-load protection ,lateral loading protection, Bi-direction allows tension and compression test Self-recognition (TEDS) function, Regular self-calibration |
|||||
|

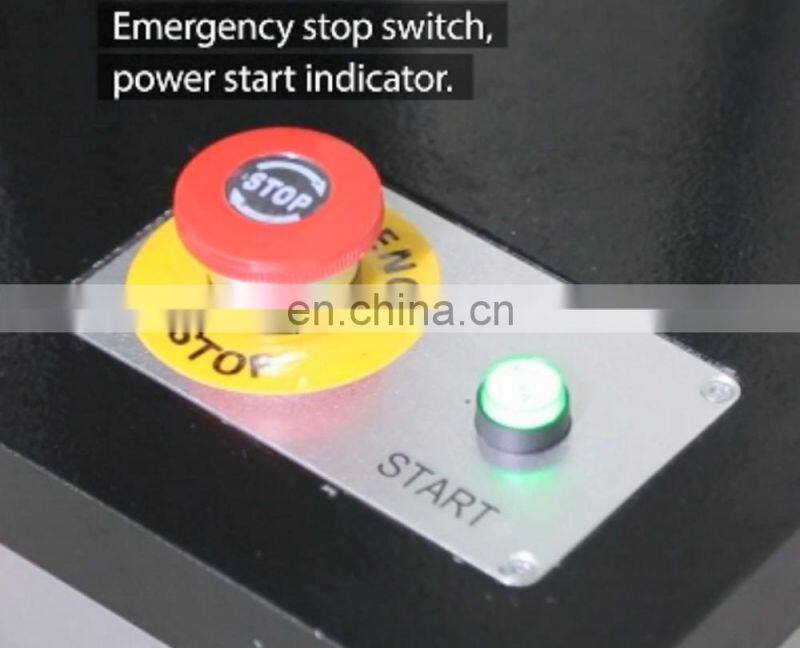

Position limit switch |
Upper and lower lights |
|||||
|
Power Supply |
AC220V±10%, 50Hz/60Hz |
|||||
|
Overall Dimensions (L*W*H: mm) |
850 x 590 x 1750 |
840 x 570 x 1850 |
950x660x2000
|
|||
|
Net Weight(kG) |
370 |
370 |
370 |
420 |
420 |
680
|
|
Note:Extra wide and/or extra height frames are available.Power supply system is completely customizable.Tensile space, test width, and speed is completely customizable.
|
||||||
Please contact KASON directly for best quotation

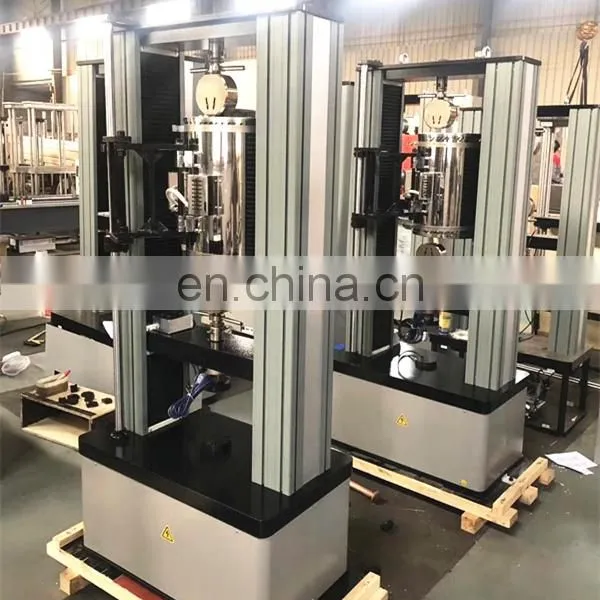

Customer Photos
