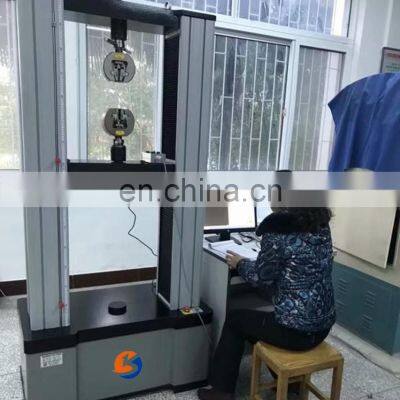

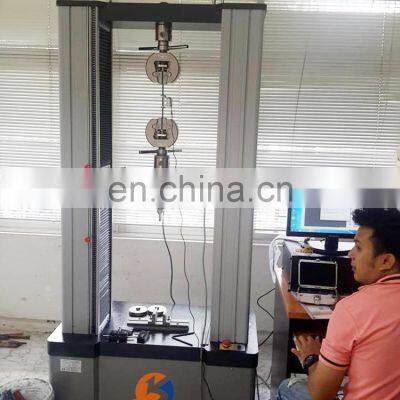

WDW-200 200kN Electronic Universal Measuring Bend Test Machine Tensile And Compressive Test Machine
1. Application:
WDW series computerized electronic universal testing machines are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2. Main Specifications:
|
Model |
WDW- 10/20/50 |
WDW- 100 |
WDW- 200/ 300 |
WDW- 500/ 600 |
|||||||
|
Max. Load |
10kN 1000kgf |
20kN 2000kgf |
50kN 5000kg |
100kN 10000kgf |
200kN 20000kgf |
300kN 30000kgf |
500kN 50000kgf |
600kN 60000kgf |
|||
|
Structure |
Floor Type |
||||||||||
|
Control model |
Computer control |
Constant stress, constant strain, constant displacement closed-loop control System |
|||||||||
|
Load accuracy |
≥±1% or ( ≥±0.5%) |
||||||||||
|
Load range |
2%-100% of full scale or (0.4%-100%) |
||||||||||
|
Load resolution |
1/20000 of full scale |
||||||||||
|
Deformation test range |
/ |
2%~100 |
|||||||||
|
Deformation accuracy |
/ |
≥±0.5 |
|||||||||
|
Deformation resolution |
/ |
1/20000 |
|||||||||
|
Displacement accuracy |
≥±1% |
||||||||||
|
Disp. resolution |
0.01mm |
||||||||||
|
Displacement Test speed |
0.005-500mm/min |
0.001-200mm/min |
|||||||||
|
Tensile space |
700mm |
650mm |
600mm |
650mm |
|||||||
|
Test width |
400mm |
450mm |
550mm |
650mm |
|||||||
|
Clamp way |
Manual clamp |
Hydraulic clamp |
|||||||||
