WDW-300E 300kN 0.5 Class Tensile Test Equipment Universal Tensile Testing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2016
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WDW-200 200kN Electronic Universal Measuring Bend Test Machine Tensile And Compressive Test MachineNegotiableMOQ: 1 -
WDW-30E 30kN Electronic Universal Material Testing Machine TesterNegotiableMOQ: 1
-
WDW-100 Computerized Electronic 100KN Tensile Testing Machine for Plastic Tensile TestsNegotiableMOQ: 1
-
WDW-200 Computerized Electronic Tensile Testing Machine/ Composite Spring Testing Machine From ChinaNegotiableMOQ: 1
-
WDW-200E Imported 20ton Universal Tensile Strength Testing MachineNegotiableMOQ: 1
Product Description

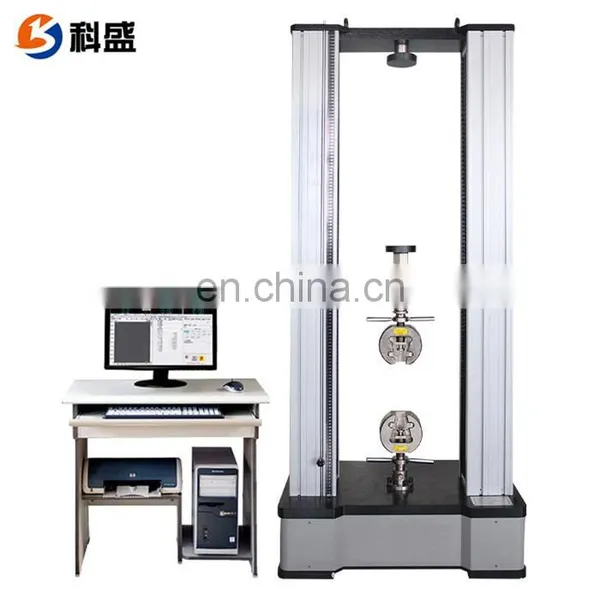

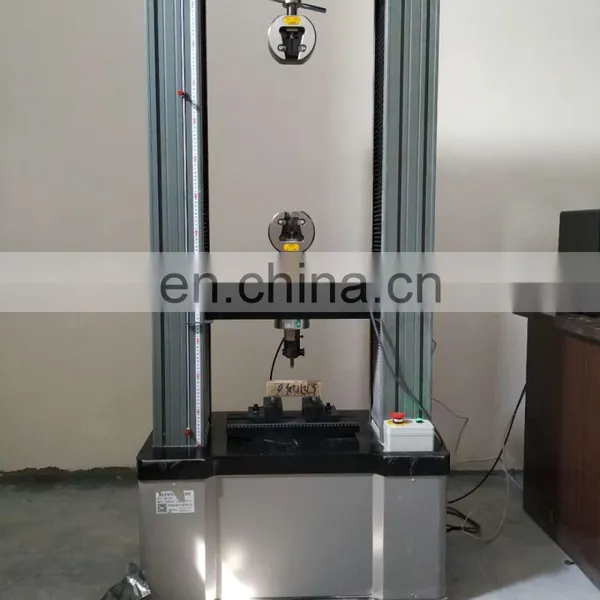

WDW-300E 300kN 0.5 Class Tensile Test Equipment Universal Tensile Testing Machine
This series material testing machine product group was primarily developed for
standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test, include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM, D3479, ASTM E517,ASTM, D695, ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008, GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Safety Device
Stroke protection: Machinery,computer double protection, prevent over preset; Force protection: system setting, Emergency stop device: handing emergencies.
Specification
Items | Model | ||||||||
WDW-10E | WDW-20E | WDW-30E | WDW-50E | WDW-100E | |||||
Structure | Column and 2 Ball Screw | ||||||||
Max. Load(kN) | 10 | 20 | 30 | 50 | 100 | ||||
Tensile space(mm) | 670 | 770 | 650 | ||||||
Compression space(mm) | 900 | 1000 | |||||||
Effective test width | 450 | 550 | |||||||
Size(mm) | 850 * 590 * 1750 | 840*570*1850 | 950*660*2000 | ||||||
Host Weight (kG) | 370 | 420 | 680 | ||||||
Power Supply | 220V/50-60Hz | ||||||||
Items | Model | ||||||||
Model | WDW-200E | WDW-300E | WDW-500E | WDW-600E | |||||
Structure | 4 Column and 2 Ball Screw | ||||||||
Max. Load(kN) | 200 | 300 | 500 | 600 | |||||
Tensile space(mm) | 700 | 700 | 800 | 800 | 650 | ||||
Compression space(mm) | 1100 | 1100 | 800 | 800 | |||||
Effective test width(mm) | 600 | 600 | 700 | 700 | 950*660*2000 | ||||
Size(mm) | 1102*870*2395 | 1450*1140*2730 | 680 | ||||||
Host Weight (kG) | 2200 | 4000 | |||||||
Power Supply | 380V/50-60Hz | ||||||||
Company Profile
Packing & Delivery

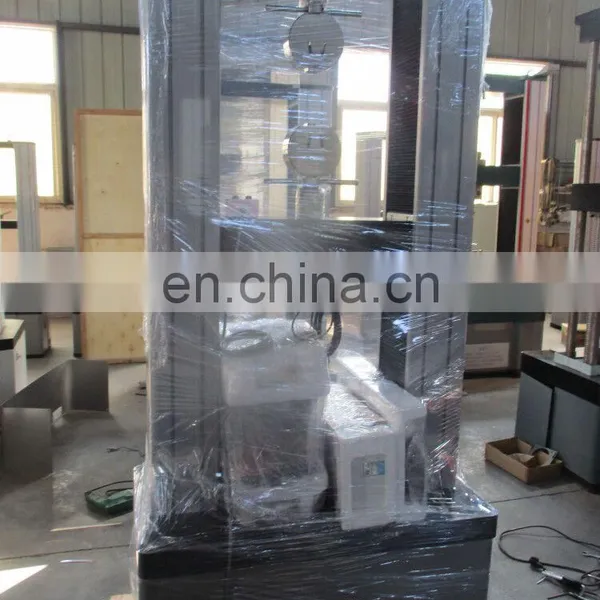

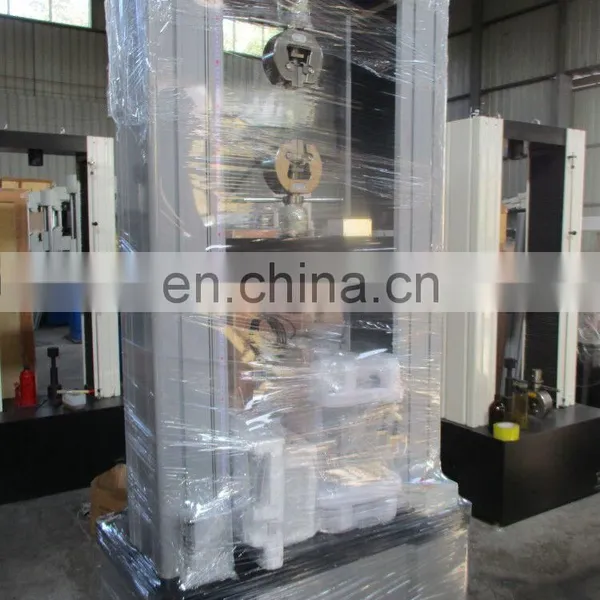

Standard exporting case
Company Profile
Packing & Delivery
Standard exporting case
