Contour & Roughness Measuring Machine / Profliometer

Contour & Roughness Measuring Machine / Profliometer

1.Surface contour evaluation: It can evaluate the radius, angle, distance, coordinates, circle, circular section; and determine the points, intersections, coordinate axes, straight line, vertical line, circle & circular section; also analysis the contour straightness, roundness, etc.
More functions:
(1)Create the regression line and circle
(2)Create the points, intersections, free points, center point, the highest point and the lowest point
(3)Create the coordinate system
(4)Calculate the radius, distance, angle, coordinates and linear deviation (5)Compare actual value with nominal value
(6)The measurement program runs automatically

2.Evaluation of surface roughness: Ra, Rz, Rt, RS, RSm, Rp, Rv, Rq, Rt, Rmax, D, Rmr curve, Rdc, etc.

3.Support CNC Automation Mode and SPC Statistical Analysis

4.Support to import CAD file and annotate CAD profile.

5.Support to import PDF profile data.

6.Be able to export test data to Word, Excel, AutoCAD(Optional)

7.Be able to output many kinds of report format, and support report customization (optional)

8.Measured records can be inquired and managed according to the type of tested objects, production units, manufacturing numbers, inspectors, inspection units, equipment numbers, inspection date, or effective date, etc.

9.Be able to prints measured records from the database.

10.Data backup and recovery.

1.High precision, High stability and High repeatability
1)Using advanced linear encoder system, resolution is up to 0.01μm which satisfies the high precision measurement;
2)With the precision guideway made of wear resistance materials, the straightness is up to 2μm/200mm, which ensured the stability and reliability of the system.
3)High-performance linear motor driving system.

2.Intelligent measurement software
With the friendly UI, operator can easily grasp the basic operation of the instrument.

3.Measuring force system
By using voice coil motor driving system, the measuring force is continuously adjustable from (10~150)mN, and the resolution of measuring force is up to 0.2mN;

4.Intelligent protection system
Once the measuring probe collides with measuring object/fixture, or tension of the measuring probe is too large during scanning, the instrument will stop immediately to protect the measuring probe and measuring system.

5.Flexible manual control
The instrument is equipped with a joystick, which can be used to position the probe before measurement, operators can move the measuring probe quickly without the computer.

                                                                        Built-in roughtness standards

                                                                      Scanning curve of Roughness

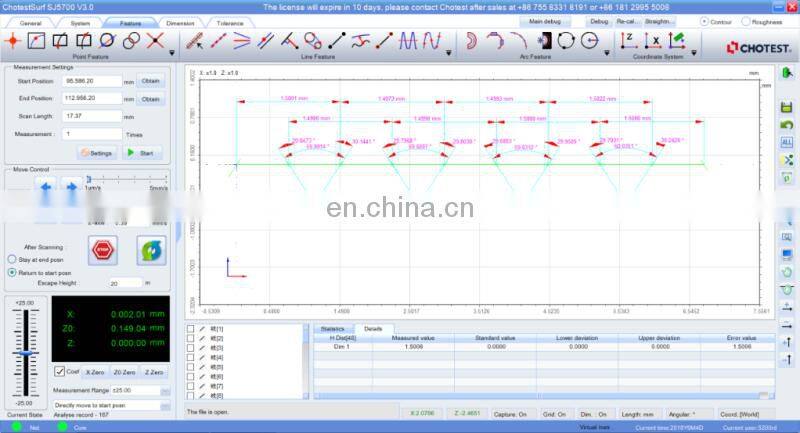

                                                                         Scanning curve of Profile

Standard configuration:

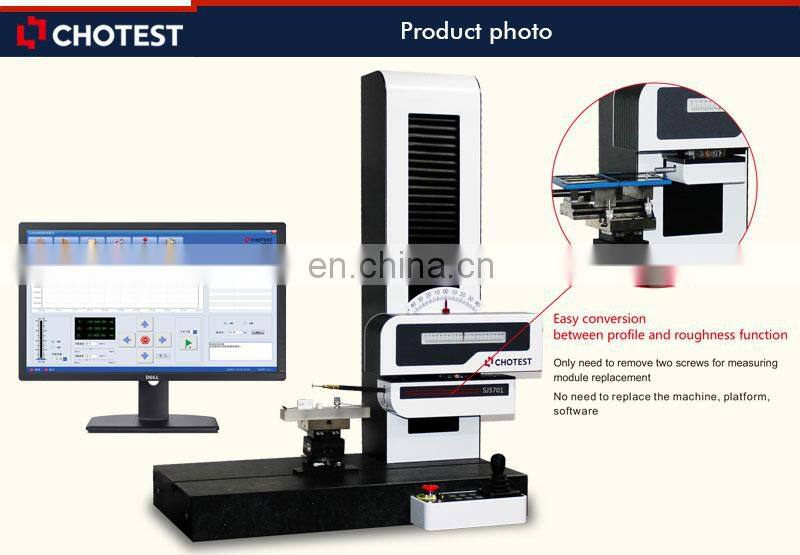

1. Host machine

  1)Profile measurement module

  2)Roughness measurement module(including Measuring probe)

2. Calibration gauges

3. Measuring probe with taper spherical face for profile measurement

4. Measuring probe with uniplanar face for profile measurement

5. Jaw vice

6. Object table

7. Measuring software

8. Desktop computer and 24” monitor

9. HP laser printer

10. Aluminium alloy suitcase for accessories

11. User manual

12. Product certification and Warranty card

Optional configuration:

1. Measuring probe for roughness of hole ≥2mm

2. Measuring probe for roughness of radius of curvature ≥3mm

3. Measuring probe for roughness of groove height > 3mm, depth <10mm

4. Multi-function V-shaped fixture

5. Steel Workbench with marble countertop(Size: 1040×630×800mm)

6. Summer or winter laboratory uniform

CHOTEST is a software company but also a national high-tech enterprise integrating research, development, production and sales. Committed to the design and production of precision measuring instruments and calibration instruments.

Since the company established, we insist on technological innovation as the basis of development. With more than ten years of development, our company has accumulated rich practical experience and established a strong professional technical team in light, machine, electronics and information technology, also owns a number of technology patents and software intellectual property rights. We have unique designing and manufacturing advantages in Micro-Nano motion, 3D Reconstruction of Micro- Nano measurement, 3D Form and Surface Analysis of Micro-Nano measurement, Large- scale 3D Measurement, Precision Sensing Probe, Control & Measurement of Glass-Scale and Guide Rail etc. That is why we have ability to provide our customers with professional precision measurement solution from nano meter to hundred meter.

At present over 200 employees in our company, we got modern office in Nanshan, Shenzhen and precision machining & assembly factory in Baoan, Shenzhen. In addition, we also built a number of professional laboratories with advanced research facilities. All products are manufactured in accordance with ISO9001, 6S standard and always provide customers with top quality products.

The sales network and service outlets of our company has covered more than 30 provinces in China, in the meanwhile our overseas market is also growing fast.

With more than 10 years of professional technology accumulation, we designed and manufactured White Light Interferometer measurement system of, Laser Tracker of GT series, Universal Thread Measuring Machines of SJ5200 series, Universal Length Measuring Machines of SJ5100 series, SJ6000 Laser Interferometer, Profilometers of SJ5700 series, Dial Indicator Testing Machines of SJ2000 series and other high-end measuring equipment. We provide high precision measurement solution from nanometer to hundred meters.

At present our products has been used widely in government Metrology and Quality Inspection agencies, automotive, aerospace, machinery, metallurgy, electric power, petrochemical and other industries.

CHOTEST focuses on technology development & innovation of precision measurement equipment and sophisticated testing equipment with motto of Self-Discipline. Our goal is to provide high-end measuring equipment to manufacturing industry in all over the world.

1. Are you factory?

Yes, we are specialized in designing and producing precision measurement instruments and calibration instruments.

2. How many years experience do you have?

We have 16 years experience on measurement instruments and calibration instruments since 2002.

3. What size of your factory?

We have 5000 square meters of factory and 2,000 square meters of modern office

4. Can you accept OEM and ODM?

No, we only sell the products under Chotest brand.

5. Can I become your distributor of distance measuring binoculars?

Yes, please contact our sales engineer.

6. What is the lead time?

Lead time is 30-60days in usual.

7. What is your payment term?

30% deposit first, balance payment before delivery.

We accept T/T, L/C.

8. How to install the machine?

We dispatch our engineers to install and debug the machine in site of the customer.

9. What is your warranty term?

We provide 1 year warranty after acceptance inspection by customer.

Free repair or replacement in 1 year warranty in case of any problem.

Response in 12 hours for emails or calls from customers in working days.
