CNC Mode Supported Calibrator Dial Gauge Universal Testing Machine for Dial Test Indicators Calibration

Shenzhen supplier Chotest measuring machines ltd for lever-type indicators measurement

1. Measure dial indicators/gauges, micrometer dial gauges, lever-type indicators, bore dial indicators, dial test indicators automatically according to the newest relevant regulations and standards.

2. Measure the above with digital display automatically.

3. Measure the above with imperial system automatically.

4. Semi-auto testing function, which is for testing dial indicators with stains.

5. Function of automatic zeroing without manual zeroing before testing.

6. Function of overstandard hinting in measuring process.

7. Process and qualify the measured data automatically.

8. Can display and print former test results and test reports including error sheet or curve of measuring points and deviation values compared to specified standard.

9. Can query and manage the test records according to object type, manufacturer, manufacturing number, inspector, submitted institution, equipment number, inspection date or effective date etc.

10. Can print multiple selected test records or test certificates from database at once time.

11. Can export test data to the Word file.

12. Data backup and restore.

13.Can customize format of test report and test certificate according to requirements of customer.

14. Can customize testing standards according to requirements of customer.

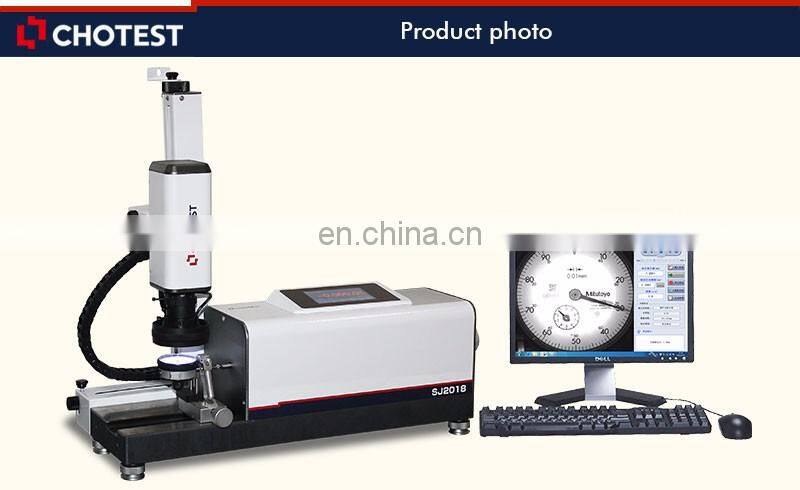

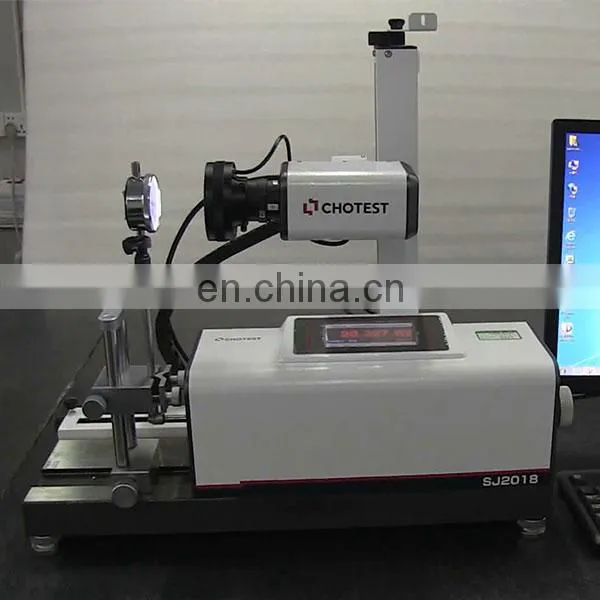

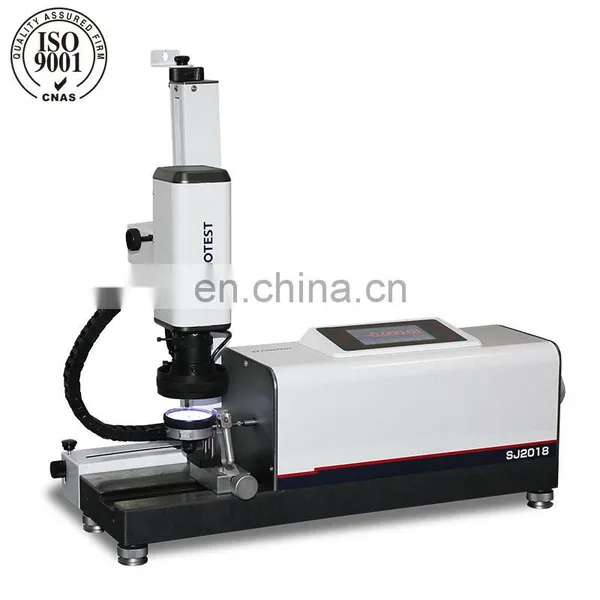

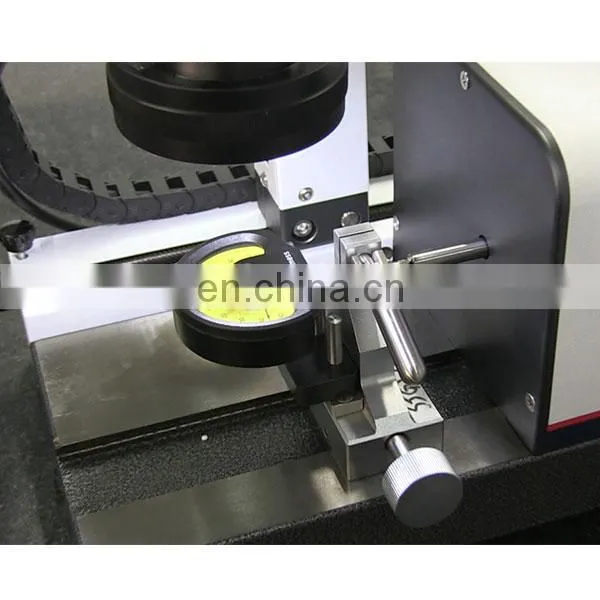

SJ2018 measures dial indicators/gauges accurately and automatically by using Heidenhain precision linear encoder system, accurate measurement and control technology of glass-sale displacement, long-life patented precision rail, imported motorized control system, patented non-reflective light source, high-resolution CCD camera, control system with LCD touch screen, and the newest intelligent image processing technology.

A motor controlled by computer drives glass-scale to travel accurately, without manual adjustment by hand wheel or microdrum; All data is acquired by software automatically, without manual sampling; Scale and indication value are identified automatically by the CCD camera which completely simulates manual reading, without observed and read by operator; That Significantly reduces human labour and brainwork, as well as improves the testing speed.

SJ2018 is a fully automated testing machine. The operator only needs to install the dial indicator and select indicator type, division value, measuring range and other parameters in software, then the machine measures automatically after click the "Start" button, in accordance with relevant regulations. After measurement, the test record and result can be printed quickly(including data list of measuring points, error carve of forward – reverse measuring, qualification & eligibility level of indication errors, and so on).

1. Artificial intelligence: Do not need manual reading & recording & calculating and manual adjustment with hand wheel or microdrum.

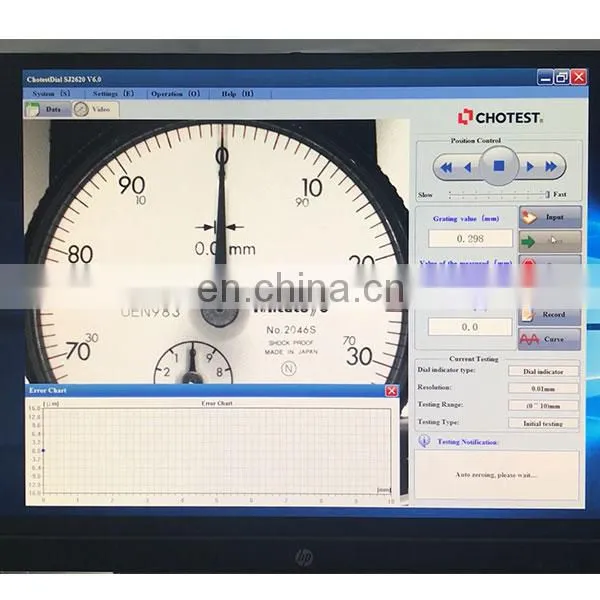

    (1) Scale and indication value are identified automatically by the CCD camera which completely simulates manual reading, without observed, read and recorded by operator

   (2) Function of automatic zeroing without manual zeroing before testing;

   (3) A motor controlled by computer drives measuring spindle to arrive measuring point accurately, without manual adjustment by hand wheel or microdrum

   (4) Powerful software automatically processes and qualifies the measured data, finally generates test result, additionally all test records can be queried, displayed, saved, printed.

2. Special light source:

   (1) Patented no-reflective light source(Patent No.: ZL200620056214.1)

   (2) If the surface of dial indicator is convex, the no-reflective light source is necessary to assure reliability of test data.

3. New patented slider:

National utility model patent(Patent No.: ZL201220239454.0)

Eliminate gap in forward – reverse measuring by reducing the wear between the slider and the guide rail;

High repeatability: significantly improve lifespan of the slider and guide rail.

4. Humanized design:

With Humanized design for both machine and software, the operator can be trained to use it in a short time. Operation of software with user-friendly UI is extremely simple. Particularly the system can identify pointer on dial indicator and acquire the indication value accurately even if the dial indicator is not in the right center of camera, so the dial indicator can be installed fast, and that simplifies the operating procedure and save operating time.

5. Large-capacity database

With built-in large-capacity storage space for database, the system can record and save all test records automatically.

6. Powerful print

Output 3 formal and nice report formats(curve, sheet or error value). Test data can be saved automatically, particularly a number of test results can be printed at a time, which saves operating time.

1. SJ2018 host machine

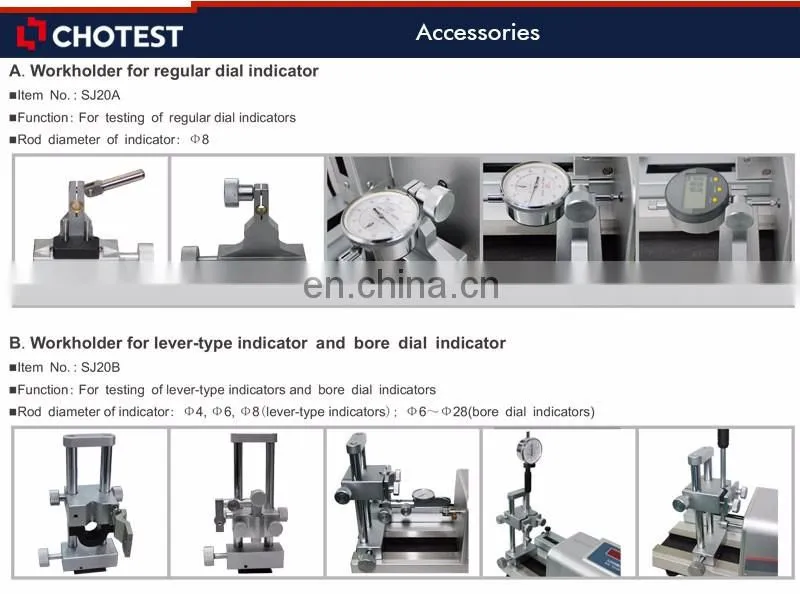

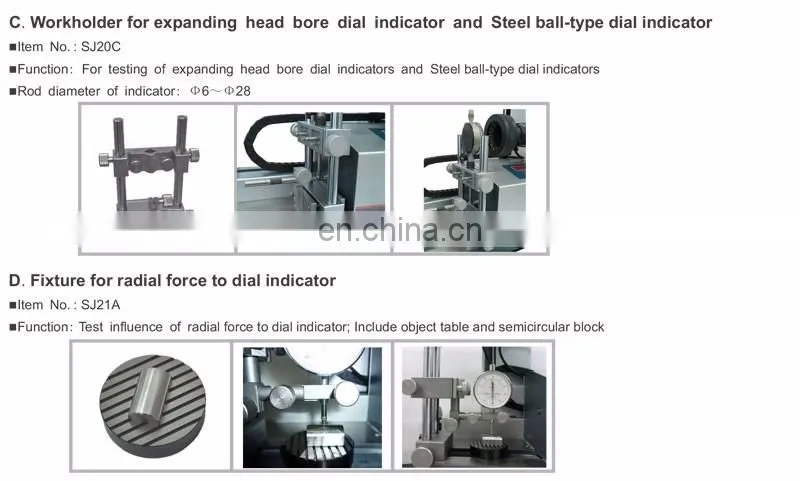

2. Workholder

3. Desktop computer

4. HP laser printer

5. Aluminum alloy case

6. Measuring software

7. Cables

8. User manual

9. Product certification and Warranty card

CHOTEST is not only a software company but also a national high-tech enterprise integrating research, development, production and sales, which is specialized in designing and producing precision measurement instruments, calibration instruments and measuring machines ltd.

The company has 2,000 square meters of modern office well equipped with advanced research facilities. In addition, it owns 5,000 square meters of precision machining and assembly factory. All products are manufactured in accordance with ISO9001 standard. The company is always living up to the motto that is providing our customers with top quality products.

At present, the company has dozens of self-developed products with new technology, widely used in government Metrology and Quality Inspection agencies, international military, automotive, aerospace, machinery, metallurgy, electric power, petrochemical and other industries. The company also has involved in developing a number of national standards and has made its due contribution for China's metrology and testing technology progress.

CHOTEST focuses on technology development of precision measurement equipments and sophisticated testing equipments. It constantly challenges to all kinds of technical barriers and technology monopoly. The goal of the company is to provide high-end measuring equipments to manufacturing industry in all over the world.

Contact Us:  chk(at)          Skype: crane_ck

1. Are you factory?

Yes, we are specialized in designing and producing precision measurement instruments and calibration instruments.

2. How many years experience do you have?

We have 16 years experience on measurement instruments and calibration instruments since 2002.

3. What size of your factory?

We have 5000 square meters of factory and 2,000 square meters of modern office

4. Can you accept OEM and ODM of Dial gauge universal testing machine?

No, we only sell the products under Chotest brand.

5. Can I become your distributor?

Yes, please contact our sales engineer.

6. What is the lead time?

Lead time is 30-60days in usual.

7. What is your payment term?

30% deposit first, balance payment before delivery.

We accept T/T, L/C.

8. How to install the machine?

We dispatch our engineers to install and debug the machine in site of the customer.

9. What is your warranty term?

We provide 1 year warranty after acceptance inspection by customer.

Free repair or replacement in 1 year warranty in case of any problem.

Response in 12 hours for emails or calls from customers in working days.
