Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Cutting Machine > Metal Sheet & Tube Laser Cutting Machines GEC-T Series

Metal Sheet & Tube Laser Cutting Machines GEC-T Series

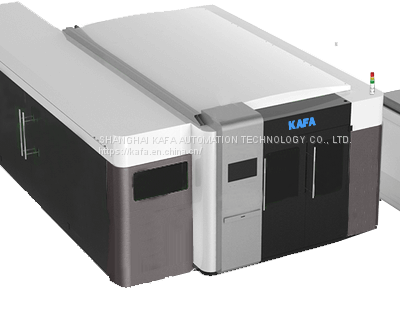

Metal Sheet & Tube Laser Cutting Machines GEC-T Series photo-1

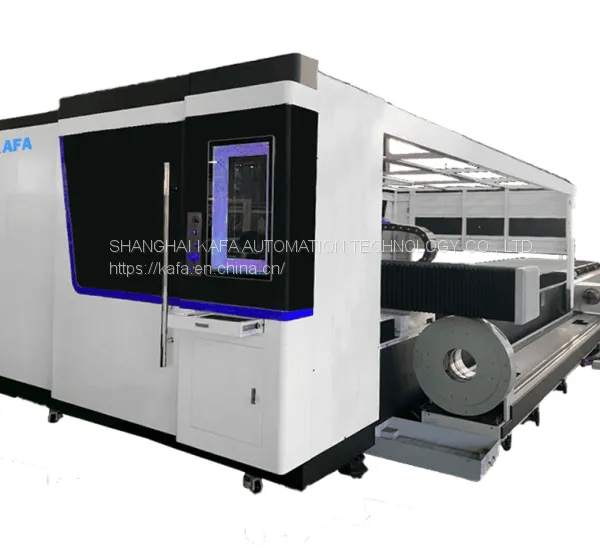

Metal Sheet & Tube Laser Cutting Machines GEC-T Series photo-2
Metal Sheet & Tube Laser Cutting Machines GEC-T Series photo-3
Metal Sheet & Tube Laser Cutting Machines GEC-T Series photo-4
Metal Sheet & Tube Laser Cutting Machines GEC-T Series photo-5
US$ 35000 - 40000 MOQ: 5 Sets
Key Specifications
Get Latest Price
Brand Name:
KAFA
Place of Origin:
China
Model Number:
GEC-T Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in china
Delivery Detail:
15 days
Brand Name KAFA
Place of Origin China
Model Number GEC-T Series
After-sales Service Provided Engineers available to service machinery overseas
Warranty 6 Month
Weight 3700Kgs
Dimension(L*W*H) 1500*3000*200mm
Voltage 110-220V,380V/50-60Hz
Rated Power ≤12KW
Condition New

Kafa GEC-T Serise is a fiber laser cutting machine for Aluminum, Carbon Steel Sheet, Stainless Steel Sheet laser cutter with cheapest price on dynamic functionality. Specialized fast speed cutting of a variety of metal plates, pipes(add pipe cutting device), mainly used in carbon steel, stainless steel, galvanized sheet, steel, rare metal various alloy plate and other materials.

Parameters:


Model GEC-T Series
Working Area 1500*3000mm
Laser Power 500W/750W/1000W/2000W Raycus
Laser Wave Length 1064nm
Working Table Saw tooth
Maximum Idle Running Speed 1200mm/s
Position Accuracy ±0.05mm/m
Position Speed 60m/min
Minimum Line Width ± 0.02mm
Cutting Thickness ≤6mm
Software and Control System NC Editor (Optional Cypcut)
Position Type Red DOT
Power Consumption ≤12KW
Working Voltage 110-220V,380V/50-60Hz
Auxiliary Gas Oxygen, nitrogen, air
Air Proportional Valves For power 1000W and higher
Working life of fiber module More than 100000 hours
Fiber laser cutting head WEIHONG or Raytools
Software Compatible with various formats
Computer Yes
Water cooling system S&A industry chiller
Motor Japan Yasakawa two 850W Y motors + 850W X motor
Driver Yasakawa 1000W
Reducer Shimpo/ ASG From Japan
Liner guider system Taiwan HIWIN
Rack gear transmission YYC Precision double rack drive
Electric component made in France
Weight 3700Kgs
Big safety cover Optional
Add Tube cutter Optional

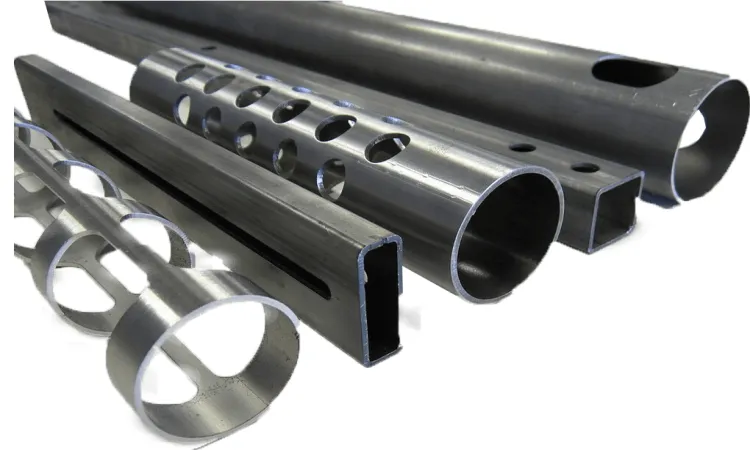

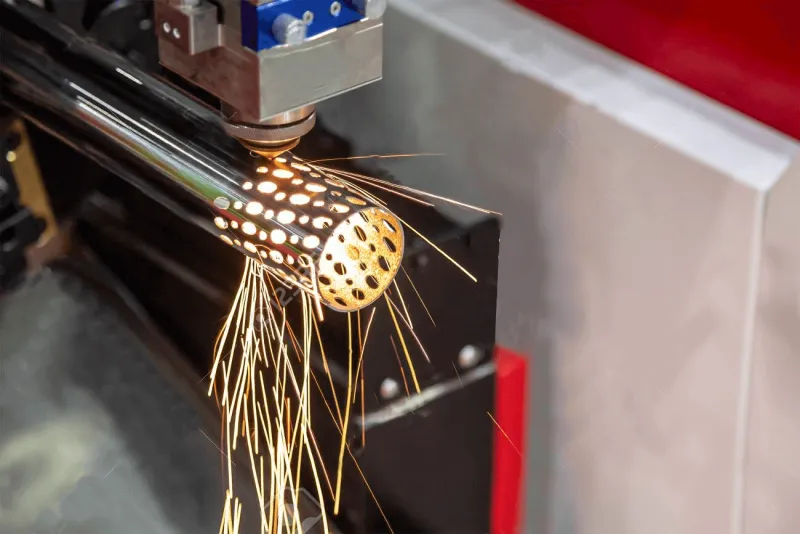

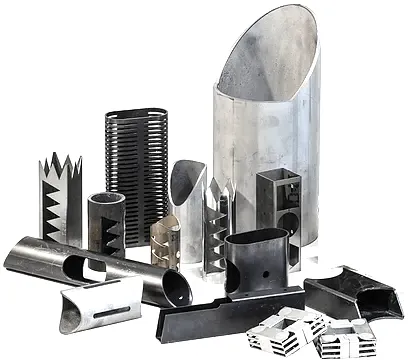

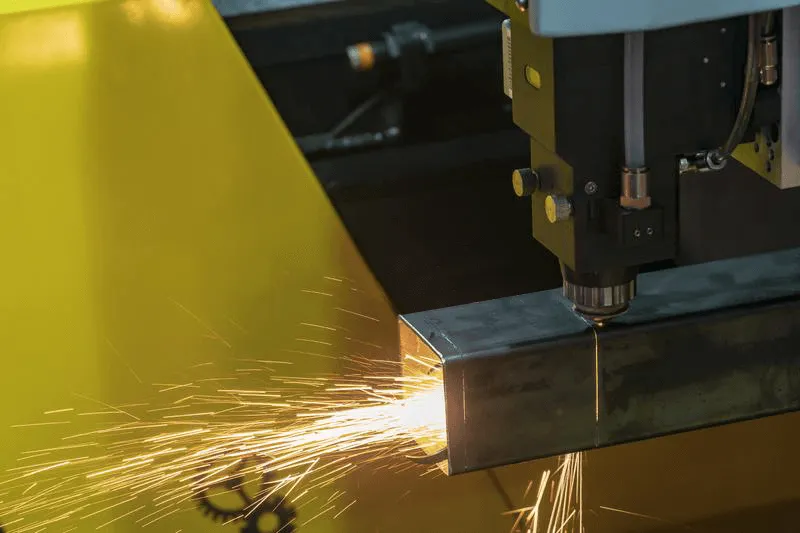

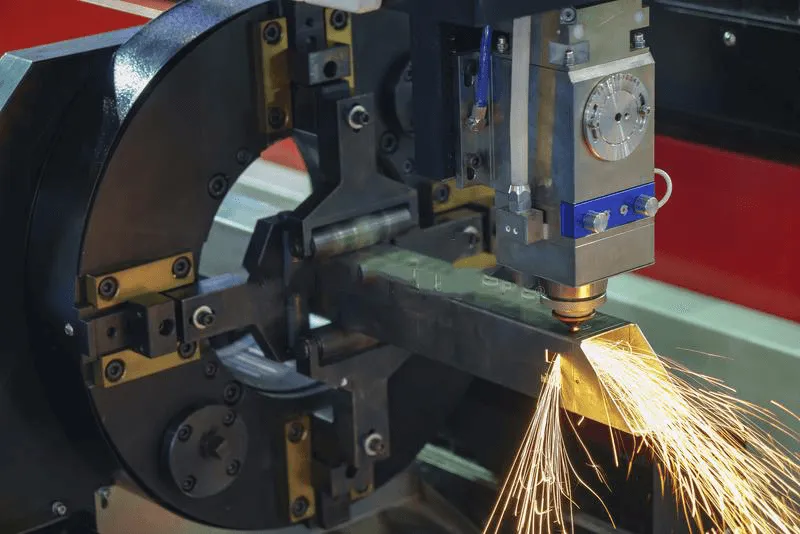

Working Process & Sample



For more details please click the link: /laser-metal-cutting-machine-ge-t-series/
