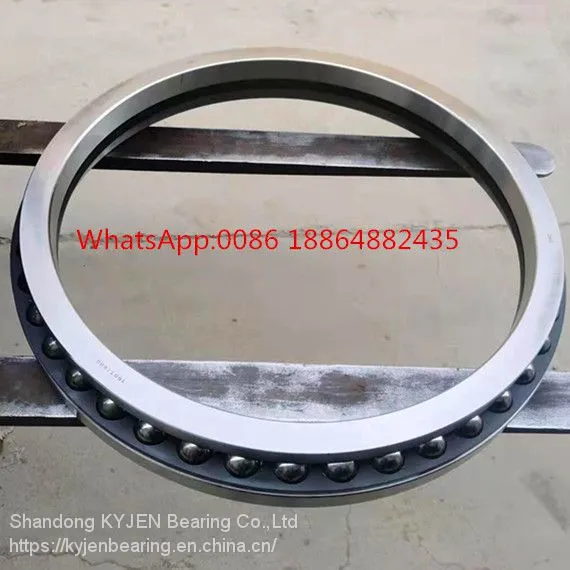

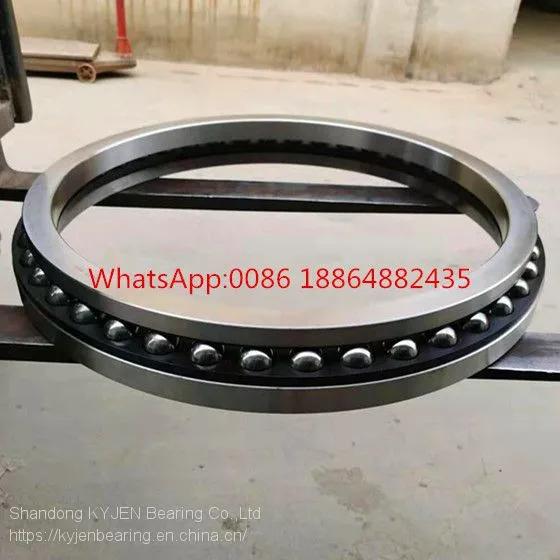

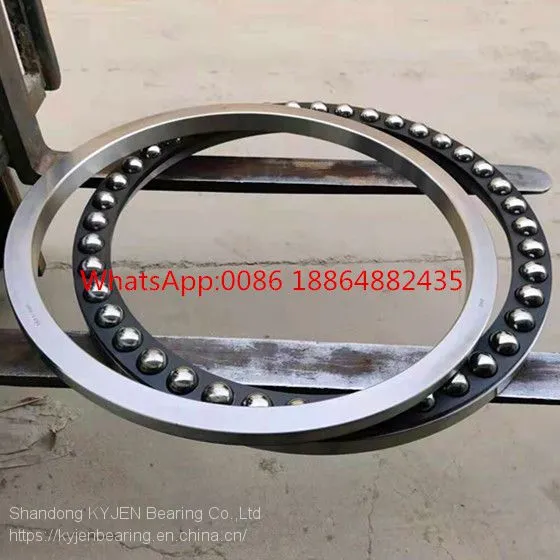

Angular contact thrust ball bearing for ZP205 rotary table 5617/620(1687/620)

Angular contact trust ball bearings

The angular contact thrust ball bearing mainly carries axial load, and it can also carry a certain radial load. Compared with thrust ball bearings of the same dimension, the limiting speed is also higher. It can make an axial location in one direction. Angular contact thrust ball bearings can make up for the weakness of the thrust ball bearings with flat back face which cannot carry radial loads. The contact angles are 45°and 60°. The smaller the degree of contact angle, the higher the capacity of the radial load is.

Specification

Manufacturer Product Code：5617/620

Original Bearing Code：1687/620

Basic Product Description：Thrust ball bearing

Bore Type:Straight

Measurement:Metric

Clearance:Normal

Precision:P0;P6;P5

Cage:Cast iron

d(mm):620

D (mm):780

Width H (mm):102

Weight (Kg):95

Sealing:Open(No seal)

Rotary Table Bearings
For Rotary Table ZP175
Bearing No.: 5692/530, 5617/520, NU2322EM, 22322CA C3W33
For Rotary Table ZP205
Bearing No.: 5692/650X1/YA3, 5617/620, NU2330EM, 22330CA C3W33
For Rotary Table ZP275
Bearing No.: 5692/800, 5611/800, 22330CA C3W33, NU2330EM
For Rotary Table ZP375
Bearing No.: 2327/1049YA, NU2330EM, 22330CA C3W33
