HC-B001 Hot Sale Auto Hematology Analyzer /CBC Test Machine

Test flow: fully auto and the blood don’t need dilute or other process

Quantity technology: ultra sound quantity method, resistance from disturb

Clot clear: high voltage burn and high pressure flush

Sample volume: 9.8μl peripheral blood or venous blood

Throughput: 35 samples/hour

Language: English

QC mode: auto draw and print QC figure

Calibration mode: auto mode and manual mode are selectable, provide original calibrator and control

Reference range type: newborn,children,male,female and universal

Reagent: provide original reagent

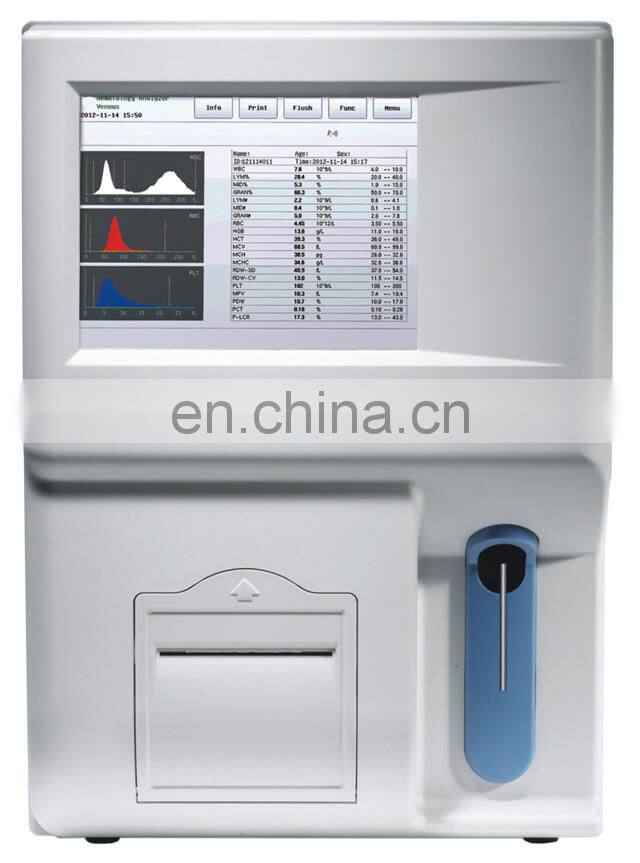

Display: Large colour LCD, show all parameters and histograms at same screen

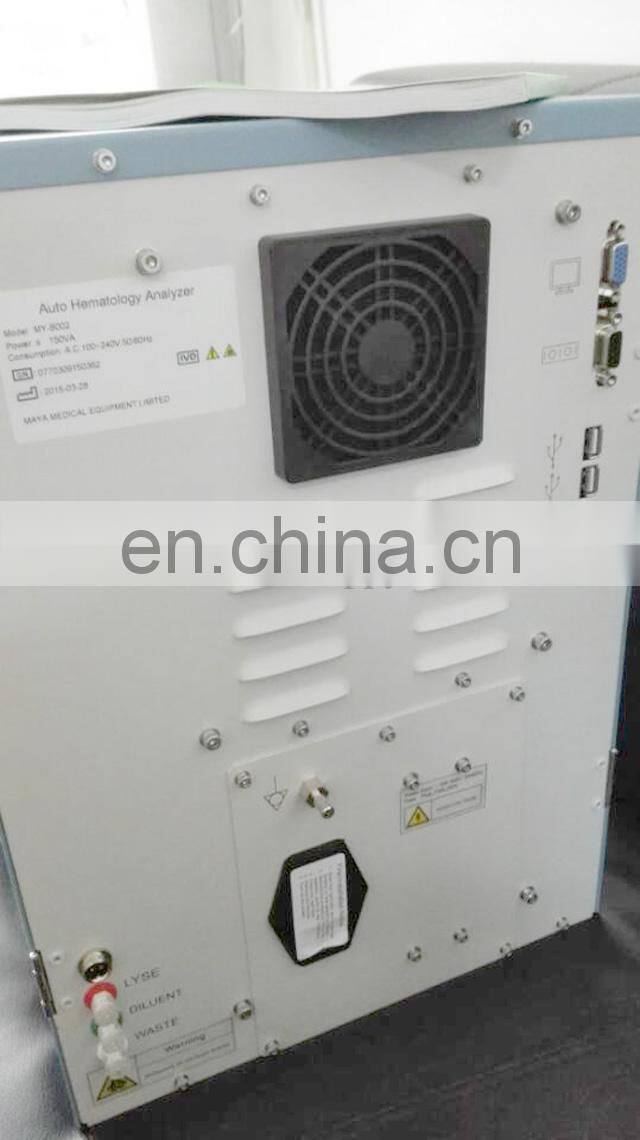

Input and output: keyboard,mouse,Parallel Port,RS232 serial port, can be connected to computer

Printer: Inner thermal printer,can be connected to external computer and printer

Working Environment: Temperature:18℃~35℃;Humidity:40%RH-80%RH

Voltage: AC 175 V~265V,Auto adapt according to the input voltage

Dimension: 300 mm×400 mm×440mm(L×W×H)

Net weight: 17Kg

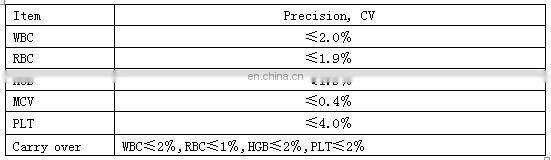

Performance

Technical parameter

Sample volume: normal mode: 9.8μl, dilution mode: 20μl

Aperture diameter: 70μ m

Quantity technology: ultra sound quantity method, resistance from disturb

Throughput: 35 samples/hour

Clot clear: high voltage burn and high pressure flush

Calibration mode: auto mode and manual mode are selectable, provide original calibrator and control

Memory: save more than 30000 sample’s detail results including histograms

Input and output: keyboard,mouse,Parallel Port,RS232 serial port, can be connected to computer

Printer: Inner thermal printer,can be connected to external computer and printer

Test parameters:

WBC

Lymph#

Mid#

Gran#

Lymph%

Mid%

Gran%

RBC

HGB

HCT

MCV

MCH

MCHC

RDW-SD

RDW-CV

PLT

MPV

PDW

PCT

P-LCR

WBC Histogram

RBC Histogram

PLT Histogram

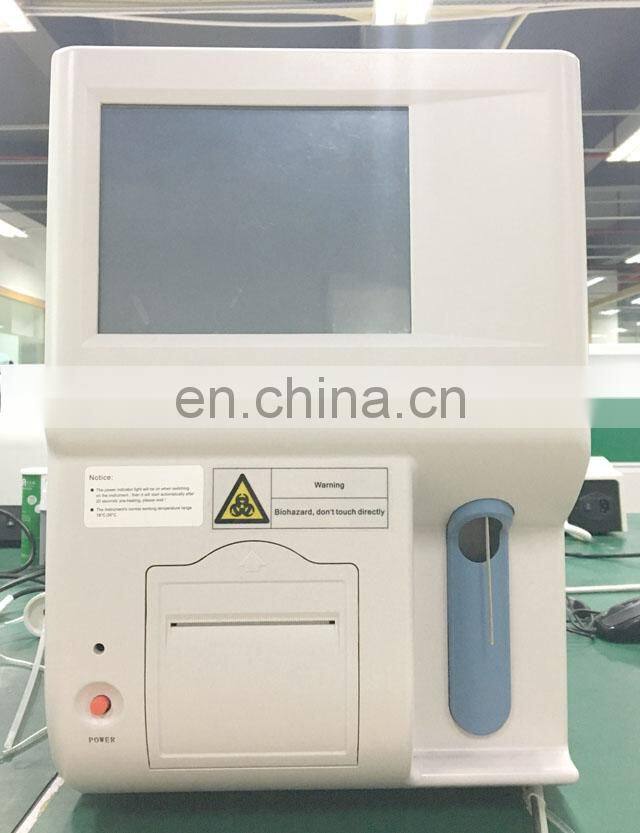

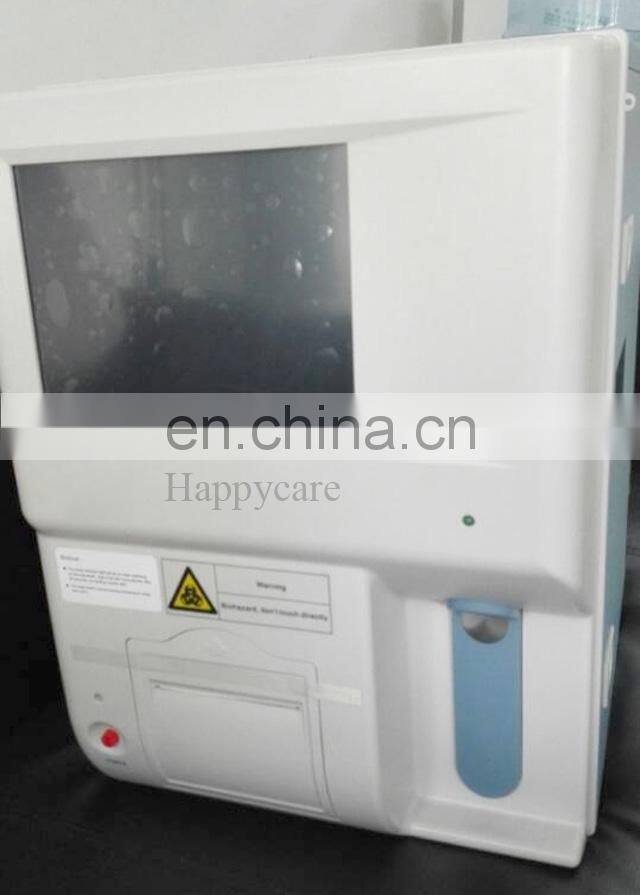

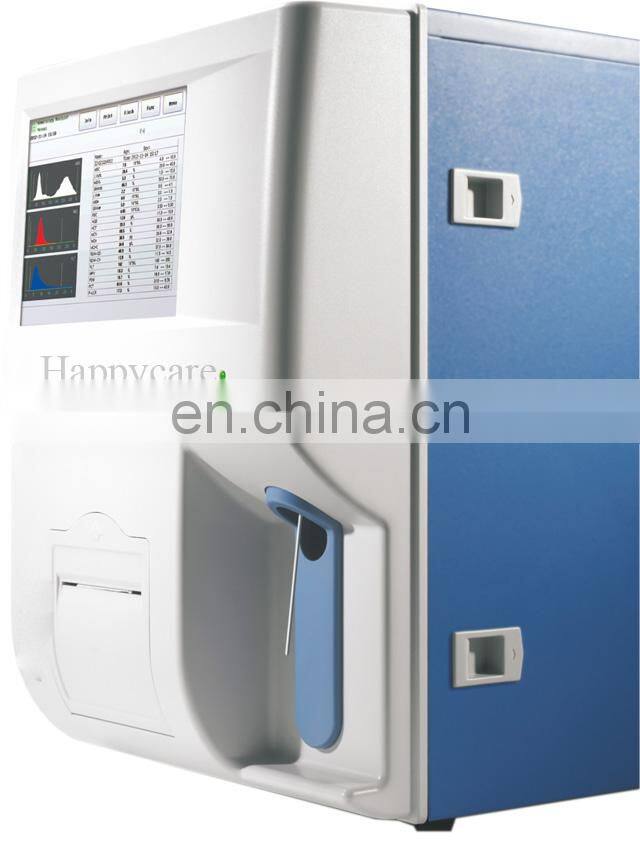

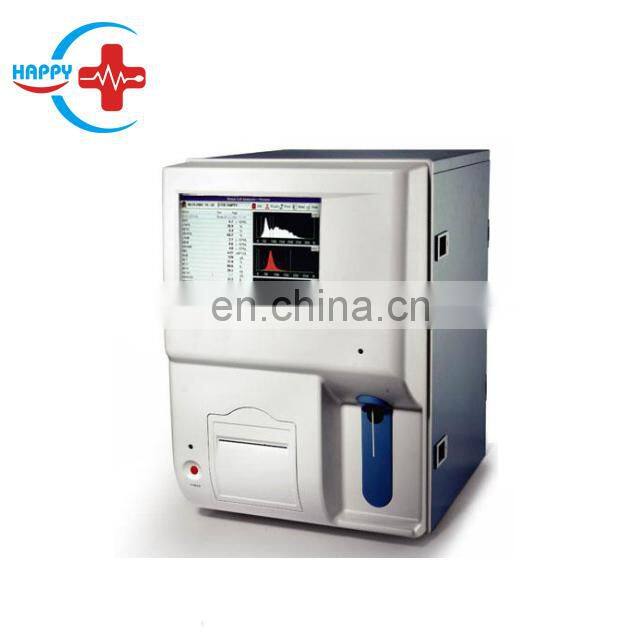

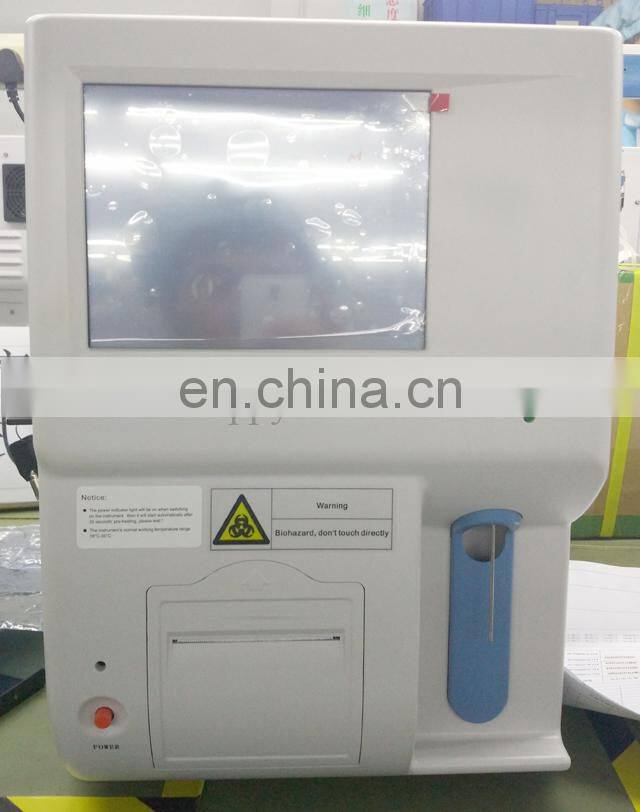

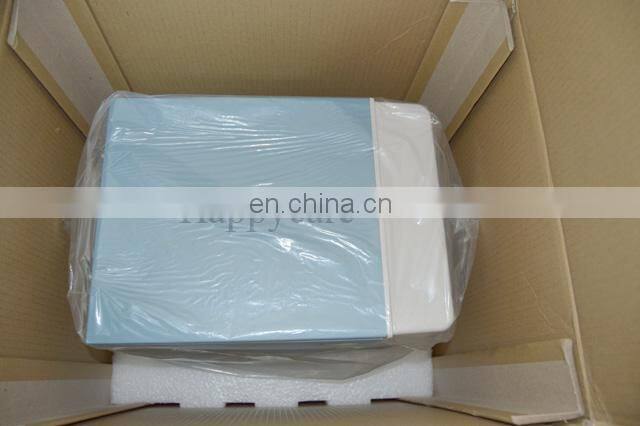

Pictures for HC-B001 Hot Sale Auto hematology analyzer /CBC test machine:
