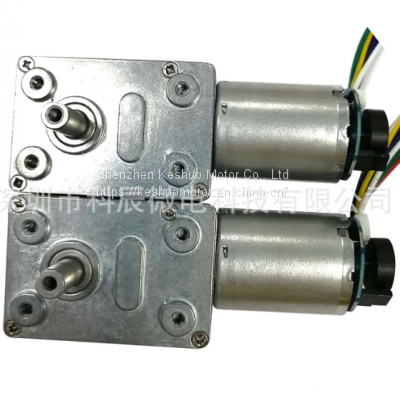

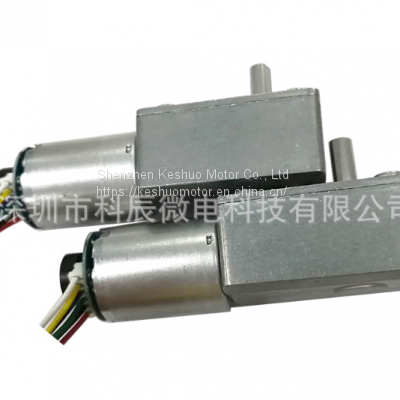

Home > Electrical & Electronics > Electric Motor > DC Motor > 370 Worm and Gear Micro Reduction Motor With Encoder
US$ 4.99 - 5.99
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
keshuo
Place of Origin:
China
Model Number:
GM3246-370CA-EN
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Customized GM12-N20 Micro DC Reduction Motor Worm Wheel Worm Thread Screw Reduction MotorUS$ 12.1 - 12.5MOQ: 5 Pieces -
Miniature DC Deceleration Motor M3/M4 Screw Expansion Motor N20 Motor With Encoder Propulsion MotorUS$ 12.2 - 12.5MOQ: 5 Pieces
-
Manufacturers Customized N20/N30 Micro DC Reduction Motor Smart Home Smart Lock Special Reduction Motor MotorUS$ 11.2 - 11.5MOQ: 5 Pieces
-
Specializing in the Production of Micro Reduction Motor 370 Reduction Motor 25mm Cylindrical Gearbox Variable Speed MotorUS$ 10.7 - 11MOQ: 5 Pieces
-
Micro DC Reduction Motor GM12-N20 Metal Gear Reduction Motor Automatic Lock Low SpeedUS$ 10.7 - 11MOQ: 5 Pieces
Brand Name
keshuo
Place of Origin
China
Model Number
GM3246-370CA-EN
Type
Gear Motor
Certification
ROHS
Torque
3.11kg.cm
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Drip-proof
Voltage(V)
8
Output Power
0.55W
Continuous Current(A)
69mA
Speed(RPM)
6.08RPM
Commutation
Brush
Product model: GM3246-370CA-EN
Product type: DC reduction motor
Rated power: 0.55W
Rated current: 69mA
Rated speed: 6.08rpm
Rated voltage: 8V
Rated torgue: 3.11kg.cm
Application: Beauty instruments, robots, automation equipment, small household appliances, precision instruments
Mixed batch and OEM can be accepted!
