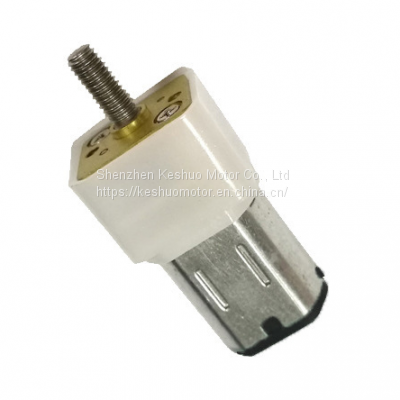

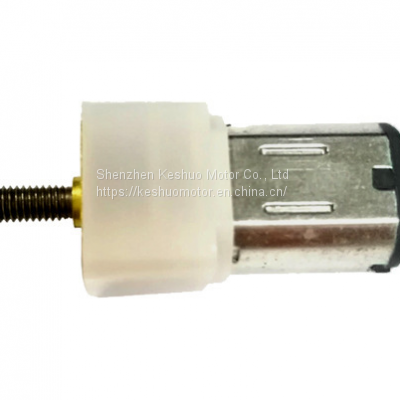

Micro DC Reduction Motor GM12-N20 Metal Gear Reduction Motor Automatic Lock Low Speed
US$ 10.7 - 11
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Type:
Gear Motor
Certification:
ROHS
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Specializes in the Production of GM12-N20 DC Reduction Motor and Mini Reduction Motor Gear MotorUS$ 10.7 - 11MOQ: 5 Pieces -
Gm16-030 Precision Micro Deceleration Motor for Beauty Equipment Medical SystemUS$ 3.64 - 4.05MOQ: 5 Pieces
-
050 Micro Reduction MotorUS$ 4.27 - 5MOQ: 5 Pieces
-
370 Worm and Gear Micro Reduction Motor With EncoderUS$ 4.99 - 5.99MOQ: 5 Pieces
-
Customized GM12-N20 Micro DC Reduction Motor Worm Wheel Worm Thread Screw Reduction MotorUS$ 12.1 - 12.5MOQ: 5 Pieces
Place of Origin
China
Type
Gear Motor
Certification
ROHS
Torque
0.0015NM
Usage
Car, Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Totally Enclosed
Voltage(V)
2.4
Output Power
0.31
Continuous Current(A)
0.2
Speed(RPM)
1200
Commutation
Brush
Product Model: GM-N20VA-1
Product type: Brush dc motor
Rated power: 0.31W
Rated current: 200mA
Rated speed: 1200rpm
Rated voltage: 2.4V
Rated torgue: 0.0015NM
Application: Electronic locks. Small appliances. Power grid intelligent switch. Instruments and meters, etc...
Mixed batch and OEM can be accepted!
