Air Drying Circular Wind Knife Compressed Annular Air Blade Round Ring Air Knife

Name: Air Drying Circular Wind Knife Compressed Annular Air Blade Round Ring Air Knife
Brand: LUOMEI
SKU: 171209901

Air Drying Circular Wind Knife Compressed Annular Air Blade Round Ring Air Knife thumbnail-1

Air Drying Circular Wind Knife Compressed Annular Air Blade Round Ring Air Knife thumbnail-2

Air Drying Circular Wind Knife Compressed Annular Air Blade Round Ring Air Knife photo-1

Air Drying Circular Wind Knife Compressed Annular Air Blade Round Ring Air Knife photo-2

US$ 1 - 1000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

LUOMEI

Place of Origin:

China

Model Number:

ZH-008

Contact Supplier Request Quote Chat Now

Foshan Luomei Electric Technik Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name LUOMEI

Place of Origin China

Model Number ZH-008

Condition New

Product Description

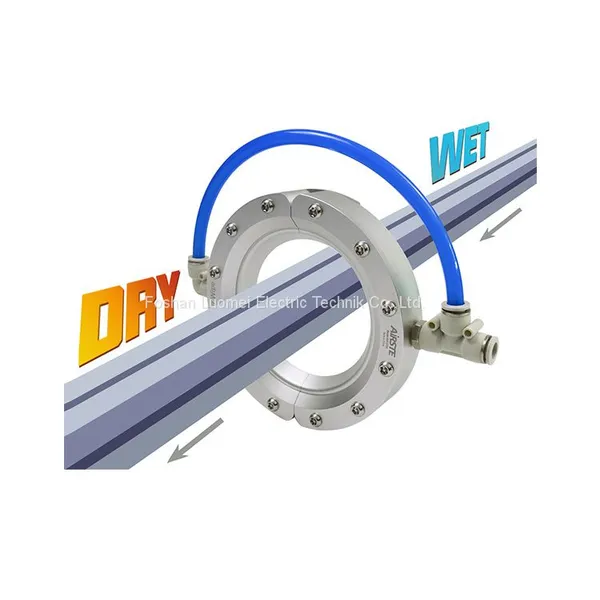

Air compressed circular air knife for drying and blowing

Circular air knife/air knife:

Features: low noise, low air consumption, no moving parts, maintenance-free, powerful blowing force, efficient water and dust removal.

Application: Widely used in cable and wire, steel pipe, automobile manufacturing, metallurgy, extrusion products, steel, plastic hose and other industries for rapid cooling, dust removal, drying, cleaning, etc.

Material: Aluminum Alloy & Stainless Steel (Special materials can be customized)

The company develops, produces and sells various types of circular air knives/air knives. The standard size models are shown in the table below. If there are special specifications and sizes, they can be customized according to customer needs. We will provide customers with free designs. Please feel free to contact us.

Super Air Wipe Parameter List
Material
Aluminum alloy	Stainless steel	A (mm)	B (mm)	C (mm)	D (mm)	Consumption (L/min)	Noise (db)
ZH008	ZH008SS	8	73	28	57	320	60
ZH013	ZH013SS	13	81	28	67	350	60
ZH025	ZH025SS	25	93	28	77	490	60
ZH038	ZH038SS	38	107	28	91	650	62
ZH051	ZH051SS	51	118	28	104	791	62
ZH064	ZH064SS	64	134	28	120	850	62
ZH076	ZH076SS	76	144	28	128	960	65
ZH089	ZH089SS	89	157	29	143	998	65
ZH0102	ZH0102SS	102	170	29	154	1035	65
ZH0127	ZH0127SS	127	194	32	180	1040	65
ZH0152	ZH0152SS	152	226	34	205	1380	70
ZH0178	ZH0178SS	178	253	37	235	1670	72
ZH0203	ZH0203SS	203	278	37	260	1980	73
ZH0229	ZH0229SS	229	304	37	286	2350	75
above parameters are for reference only, under the air intake pressure test of 6.5kg, air outlet gap is 0.05mm

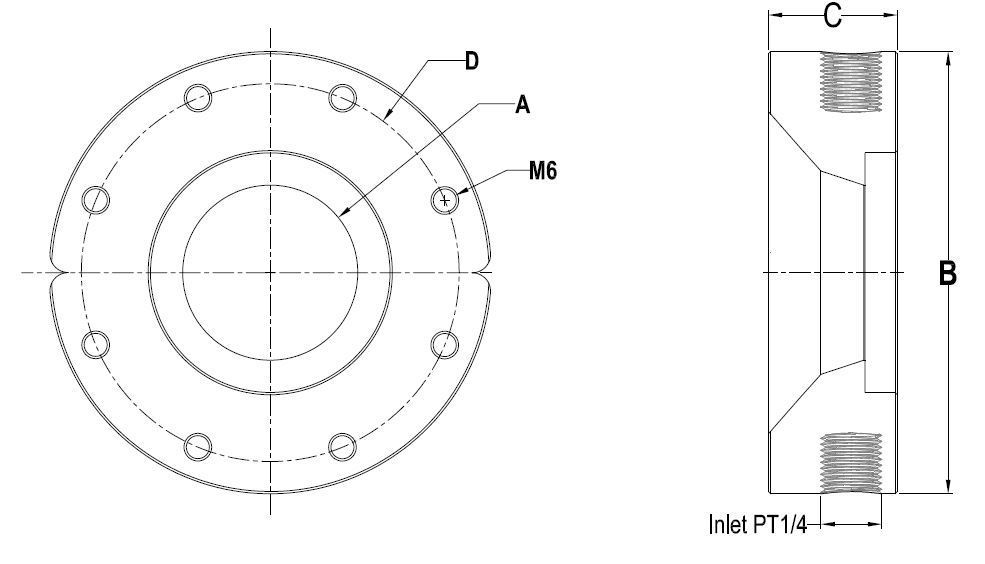

Outline structure drawing of circular air knife:

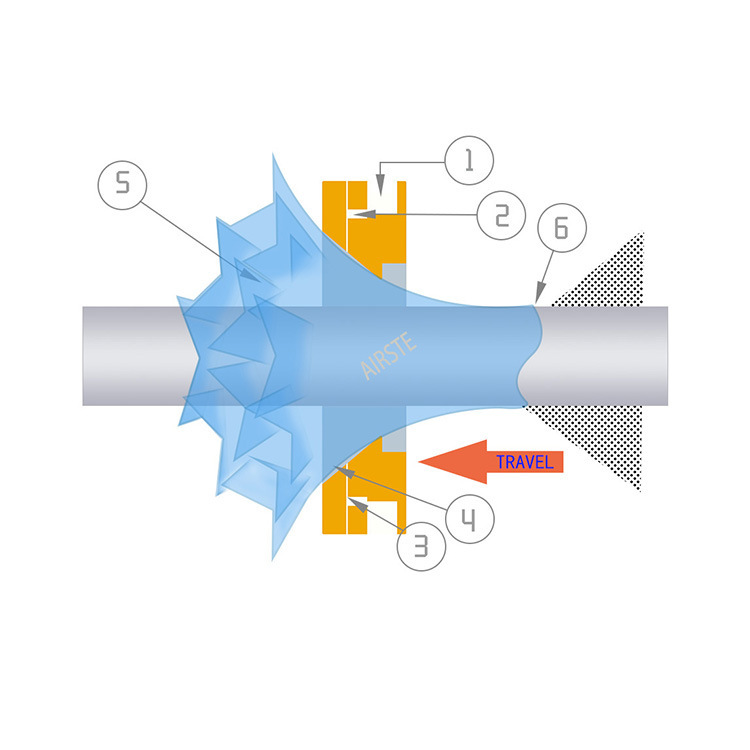

Working principle diagram of annular air knife:

When compressed air enters the high-pressure chamber (2) of the annular air knife through the air inlet (1), the air flow is sprayed out along the side wall (4) of the annular air knife at an ultra-high speed through the small nozzle (3). A powerful vacuum zone (5) is generated in the back. The high-speed jet of air pulls a large amount of air around the air knife and jets it to the other side of the air knife, thereby generating a powerful 360-degree sweeping force. This uniform and powerful air flow The oily dirt, water and other impurities on the material (6) passing through the air ring can be blown continuously and stably.

The magnification of RAW airflow is 40:1, and the high-flow airflow it produces can provide cooling and drying on all sides of the product. The 360-degree circular structure can produce a stable, powerful airflow wrapped around the side of the object, so that all water and oil can be removed. Used for drying, dust removal, oil removal, water removal and liquid removal, etc.

Features of circular air knife:

1) Balanced air flow, super blowing force, air compression ratio up to 40:1 ratio
2) Very low input and operating costs, which can save 35-50% of compressed air costs
3) No moving parts, long service life. Can work in high and low temperature environments
4) Low noise, in most cases only 65 decibels, the noise is about 25% lower than that of a straight blown pipe
5) It has small size, easy installation and maintenance-free
6) No electricity, no electromagnetic radiation, no explosion hazard, safe and reliable

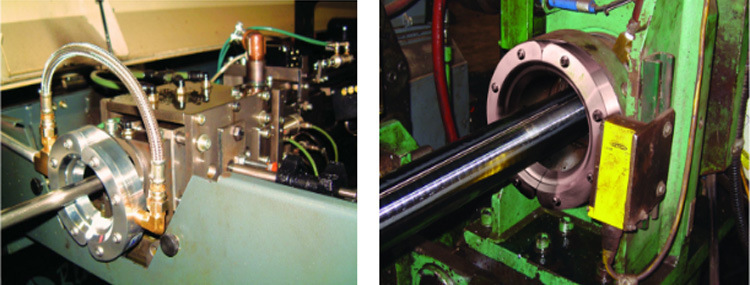

Environmental application of ring air knife:

- Drying is required after washing, cleaning, plating or coating
- Cooled and extruded parts
- Blow off oil, debris, waste, water and dust on the tubular surface
- Cooling molds or castings
- Cool continuous length parts such as metal wires, wires, hoses, pipes, etc.
- In the process of removing the material in the radial conveying process, the dirt passes through to provide an ideal drying solution for pipes, cables, extruded materials, wires, rulers and water pipes.
