Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Cleaning Machine > Windjet Low Flow Super Air Knife for Compressed Air

Windjet Low Flow Super Air Knife for Compressed Air

Name: Windjet Low Flow Super Air Knife for Compressed Air
Brand: LUOMEI
SKU: 171209887

Windjet Low Flow Super Air Knife for Compressed Air thumbnail-1

Windjet Low Flow Super Air Knife for Compressed Air photo-1

US$ 1 - 1000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

LUOMEI

Place of Origin:

China

Model Number:

100mm

Contact Supplier Request Quote Chat Now

Foshan Luomei Electric Technik Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name LUOMEI

Place of Origin China

Model Number 100mm

Condition New

Product Description

Application.

Suitable for cleaning, drying, dust removal, water removal, cooling, cooling, etc.
Material.
1) Aluminum alloy: suitable for normal temperature environment, cost-effective, can also be treated with anti-oxidation electroplating to improve corrosion resistance. 2) Stainless steel: suitable for high temperature environment above 200 degrees Celsius or highly corrosive working environment

Principle

As shown in the figure on the left, after the compressed air (1) enters the air knife, it is blown out at a high speed by an airflow sheet (2) with a thickness of only 0.05 mm. Through the principle of the Coanda effect and the special geometry of the air knife, the air curtain of this sheet can drain the maximum flow. 30 to 40 times the environment (3), and a thin layer of high-strength, atmospheric impact air curtain is formed, and the strength of the air curtain is very uniform

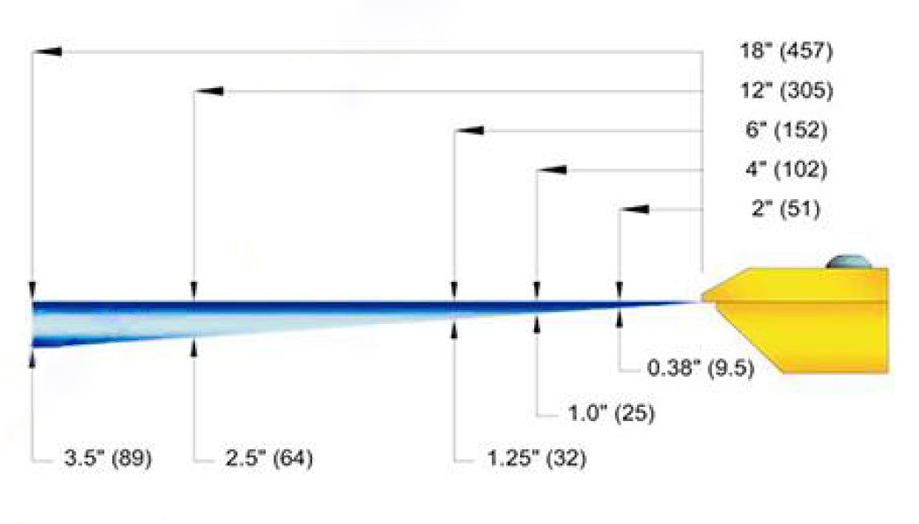

Air diffusion.

At the air outlet of the air knife, since no ambient air is introduced, the strength of the air curtain is the largest, but the air volume is the smallest. As the distance increases, the air curtain strength gradually weakens and the air volume gradually increases. The distance between the air outlet and the product surface should be kept between 10~50mm.

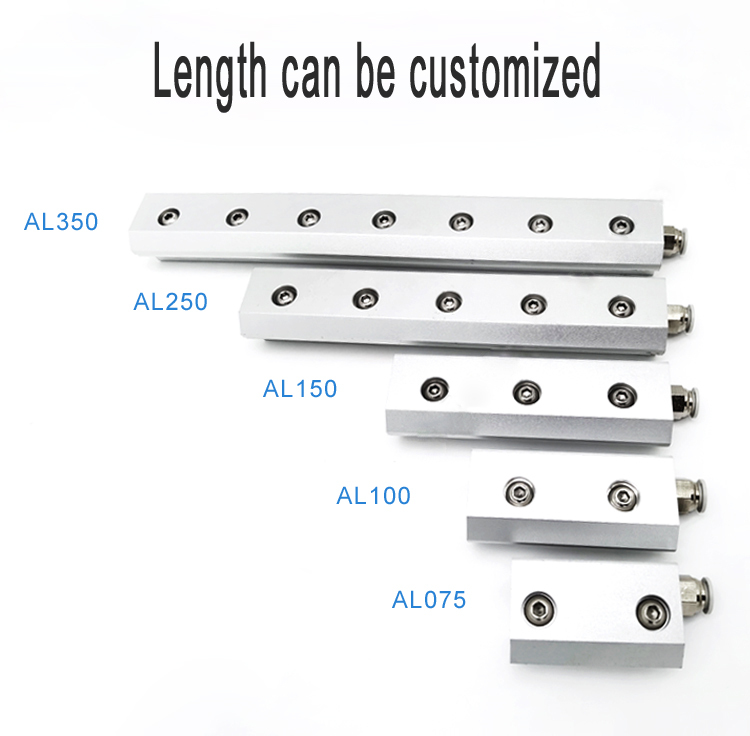

Specification

Super Air Knife
aluminum alloy	stainless steel	Length	Airflow	Air intake thread	Noise
LM030AL	LM030SS	30mm	85L/min	PT-1/8 (1)	30db
LM050AL	LM050SS	50mm	180L/min	PT-1/8 (1)	42db
LM075AL	LM075SS	75mm	260L/min	PT-1/4 (2)	46db
LM100AL	LM100SS	100mm	350L/min	PT-1/4 (2)	50db
LM150AL	LM150SS	150mm	521L/min	PT-1/4 (2)	54db
LM200AL	LM200SS	200mm	700L/min	PT-1/4 (2)	56db
LM250AL	LM250SS	250mm	885L/min	PT-1/4 (2)	58db
LM300AL	LM300SS	300mm	1050L/min	PT-1/4 (2)	60db
LM350AL	LM350SS	350mm	1220L/min	PT-1/4 (2)	61db
LM400AL	LM400SS	400mm	1410L/min	PT-1/4 (2)	63db
LM450AL	LM450SS	450mm	1605L/min	PT-1/4 (2)	63db
LM500AL	LM500SS	500mm	1770L/min	PT-1/4 (2)	63db
LM550AL	LM550SS	550mm	1965L/min	PT-1/4 (2)	65db
LM600AL	LM600SS	600mm	2135L/min	PT-1/4 (3)	65db
LM650AL	LM650SS	650mm	2310L/min	PT-1/4 (3)	66db
LM700AL	LM700SS	700mm	2480L/min	PT-1/4 (3)	68db
LM750AL	LM750SS	750mm	2665L/min	PT-1/4 (3)	70db
LM800AL	LM800SS	800mm	2860L/min	PT-1/4 (3)	70db
LM850AL	LM850SS	850mm	3050L/min	PT-1/4 (4)	70db
LM900AL	LM900SS	900mm	3235L/min	PT-1/4 (4)	70db
LM950AL	LM950SS	950mm	3430L/min	PT-1/4 (4)	70db
LM1000AL	LM1000SS	1000mm	3635L/min	PT-1/4 (4)	75db
LM1200AL	LM1200SS	1200mm	4320L/min	PT-1/4 (5)	75db

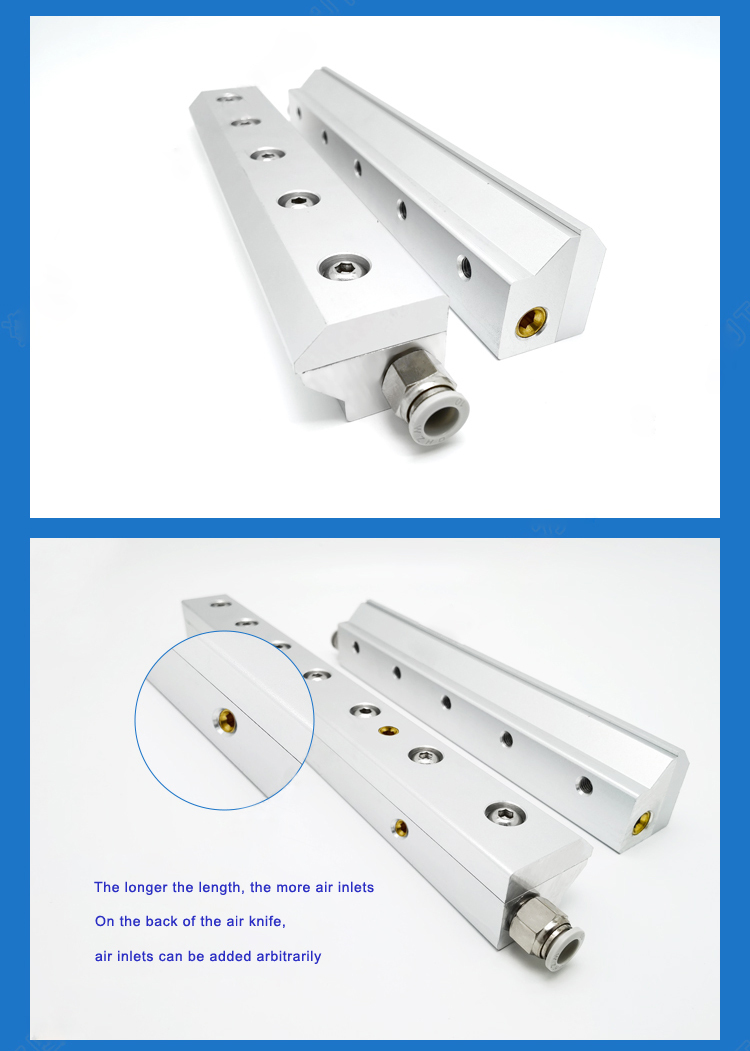

Note:1) Super air knives above 450mm should have air intake at both ends as much as possible. The longer the length is, the air inlets should be increased accordingly, otherwise the effect of the air knife will be affected.2) The super air knife deliquoring and purging distance should be between 20mm and 60mm, otherwise the effect will be reduced.
3) Compressed air should be 0.55~0.69Mpa.
4) An air filter should be used to ensure the air is dry.
5) The distance between all filters and the objects to be blown should be controlled within 5meter.
6) When connecting the hose, no foreign objects can enter the hose.
7) The air consumption stated in the above table refers to the super air knife with a port clearance of 0.05mm.
