Home > Electrical & Electronics > Electric Motor > AC Motor > Fan Cooled 22kW Rated 105 Nm 2000 Rpm Max. 7000 Rpm CNC Spindle Motor

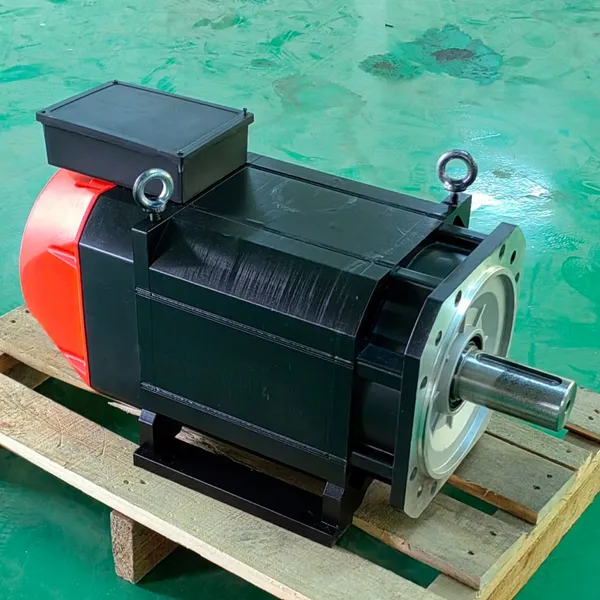

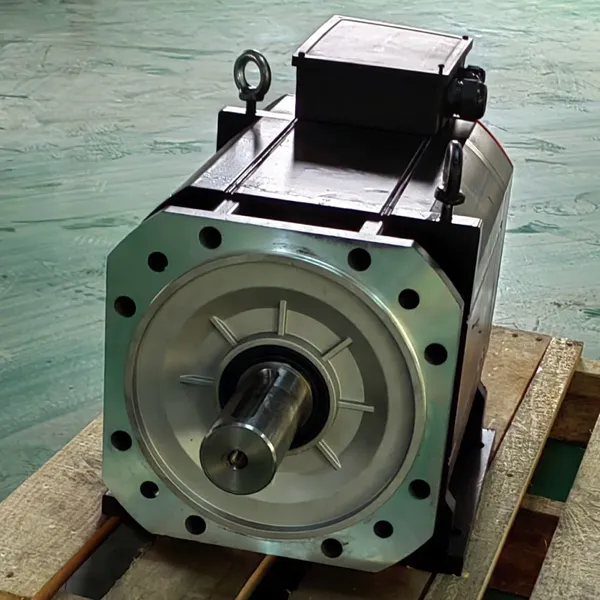

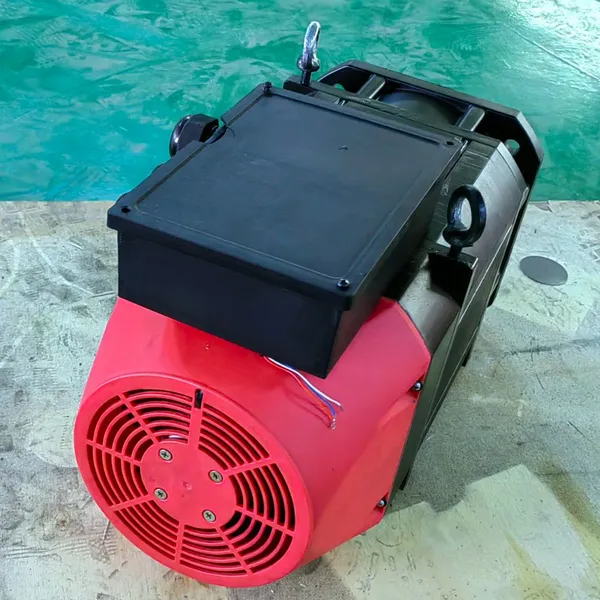

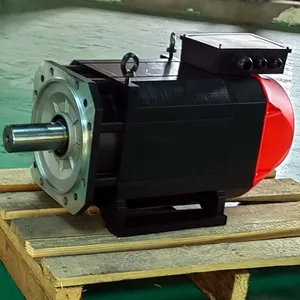

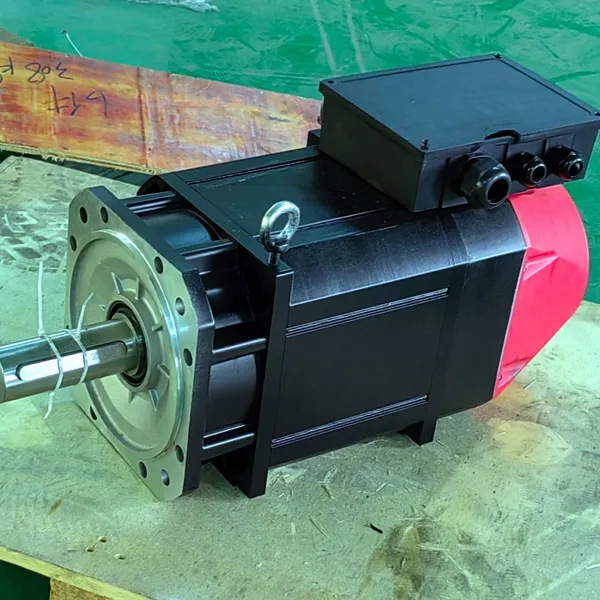

Fan Cooled 22kW Rated 105 Nm 2000 Rpm Max. 7000 Rpm CNC Spindle Motor
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Type:
Servo Motor
Output Power:
22kW
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fan Cooled 18.5kW 118Nm Rated 1500 Rpm Max. 6000 Rpm Closed Loop CNC Servo Spindle MotorUS$ 995 - 1150MOQ: 1 Set -
3.7kW Max 12000rpm Rated 3000rpm Spindle MotorUS$ 900 - 1350MOQ: 2 Sets
-
Fan Cooled 22kW Rated 105 Nm 2000 Rpm Max. 7000 Rpm CNC Spindle MotorNegotiableMOQ: 1 Set
-
Three Phase AC Electric Siemens Simotics Motor 220 Volt 13kw15 Kw 100kwNegotiableMOQ: 1 Piece
-
NOES 0.20mm 0.27mm for High Speed Motor 10000RPM Spindle Drive Core Low Loss GradeUS$ 0.55 - 1.25MOQ: 100 Kilograms
Place of Origin
China
Type
Servo Motor
Output Power
22kW
Frequency
0-200Hz
Efficiency
IE 3
AC Voltage
Other, 380V
Certification
CE
Phase
Three-phase
Protect Feature
Totally Enclosed
Fan cooled 22kW spindle motor
Powerful motors for high acceleration with high mechanical precision and low vibration
wide range of constant power up to high speed by winding switching
power range 1.5-40 kW
large torque at low speed available
protection class IP54
| Type | SZ230B35-2022 | |
| Rated Power | 22 | kW |
| Pmax S6-30% | 30 | kW |
| Rated Torque | 105 | Nm |
| Rated Voltage | 380 | V |
| Rated Current | 40 | A |
| Rated Frequency | 68 | Hz |
| Rated Speed | 2000 | r/min |
| Max Speed of Constant Power |
6000 | r/min |
| Max Speed | 7000 | r/min |
| Moment of Inertia | 0.105 | kg•m2 |
