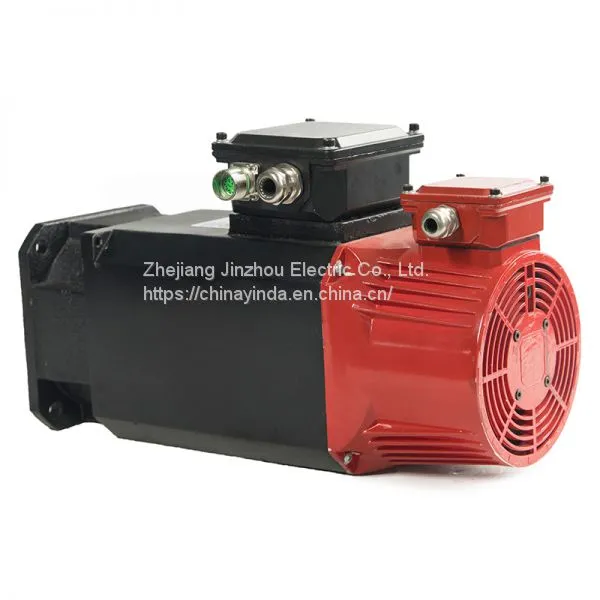

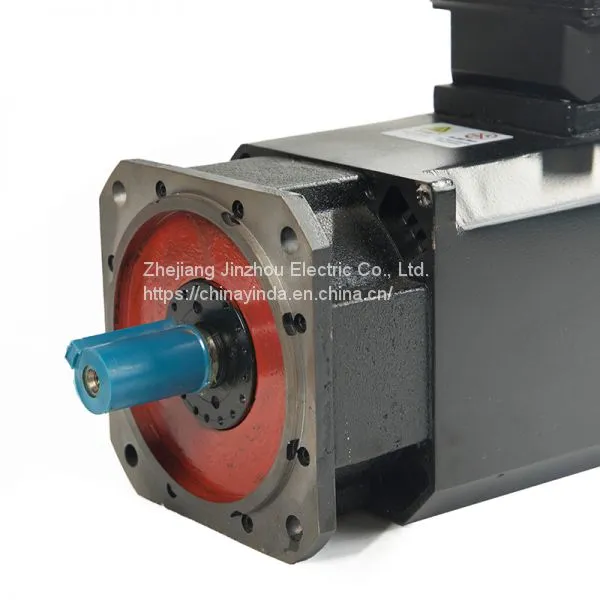

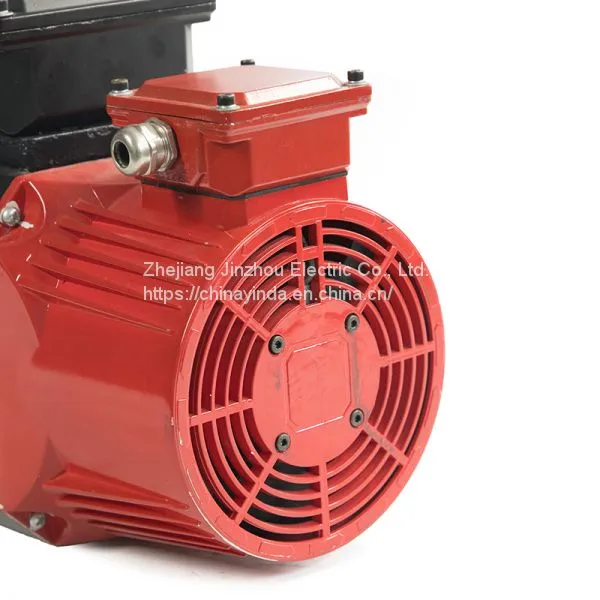

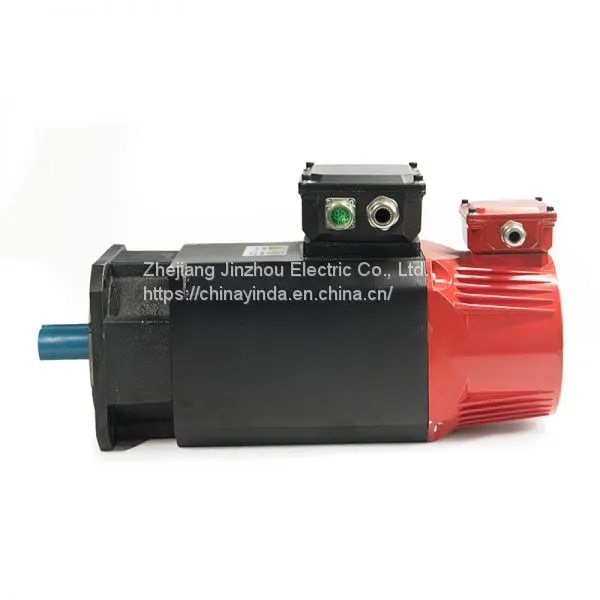

3.7kW Max 12000rpm Rated 3000rpm Spindle Motor
US$ 900 - 1350
MOQ: 2 Sets
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
SZG150301201203R7
Type:
Servo Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fan Cooled 18.5kW 118Nm Rated 1500 Rpm Max. 6000 Rpm Closed Loop CNC Servo Spindle MotorUS$ 995 - 1150MOQ: 1 Set -
Fan Cooled 22kW Rated 105 Nm 2000 Rpm Max. 7000 Rpm CNC Spindle MotorNegotiableMOQ: 1 Set
-
3.7kW Max 12000rpm Rated 3000rpm Spindle MotorUS$ 900 - 1350MOQ: 2 Sets
-
NOES 0.20mm 0.27mm for High Speed Motor 10000RPM Spindle Drive Core Low Loss GradeUS$ 0.55 - 1.25MOQ: 100 Kilograms
-
Non Oriented Silicon Steel Coil 20QG130 Third Party Inspection Trial Order for Spindle Motor ManufacturersUS$ 0.5 - 1.5MOQ: 500 Kilograms
Place of Origin
China
Model Number
SZG150301201203R7
Type
Servo Motor
Output Power
3.7kW
Efficiency
IE 3
AC Voltage
208-230 / 240 V
Certification
CE
Phase
Three-phase
Protect Feature
Totally Enclosed
0-12000rpm high speed motors offer broadmachining conditions, as well as shorter machine times
The outstanding electrical design reduces the internal temperature rise and energy loss
High accuracy and low motor vibrationreduces thermal displacement, enlarges
service life.
SZG main motors are squirrel cageasynchronous motors
| Model Type | Continuous rating | Short time rating(30m) | Rated Voltage | Rated speed | Rated Torque | Max Speed | Moment of Interia |
| kW | kW | V | r/min | N·m | r/min | kg·m² | |
SZG150301201203R7 |
3.7 | 5.5 | 200、220、380 | 3000 | 11.78 | 12000 | 0.01 |
