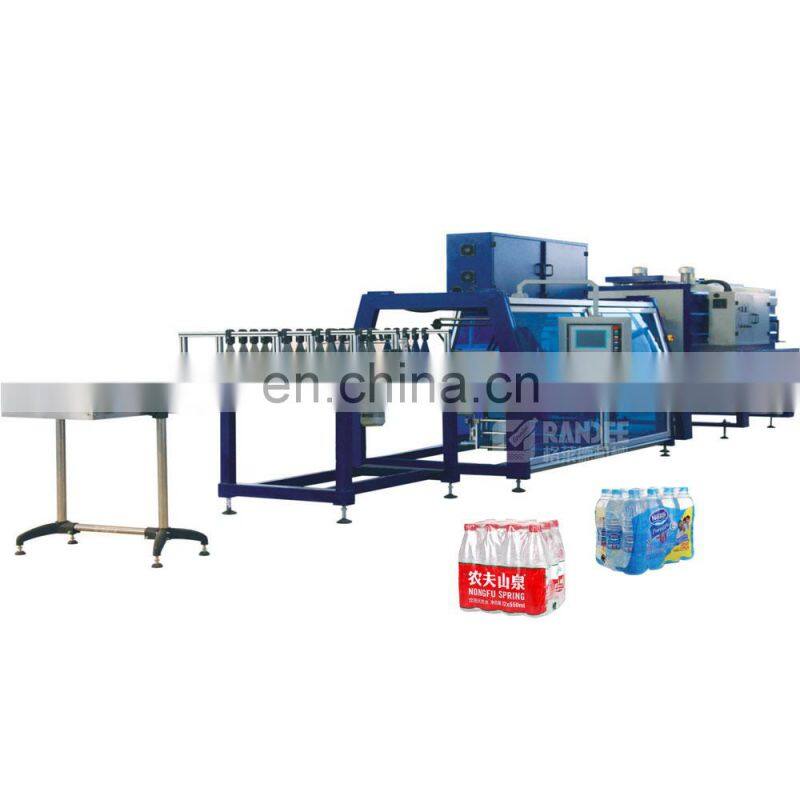

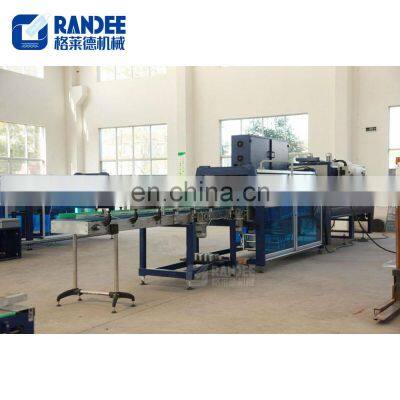

One piece single roll heat thermal shrink film overlap packing colorful automatic wrapping packaging machine sleeve wrapper
Machine description and features:
Packing Flow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ cooling
1.Feeding: The bottles enter into conveyor trough of sealing machine, on the conveyor trough there are adjustable guardrail. The feeding will stop when the bottle arrived to the set position.
2.Pushing bottles: After the bottles arrived to the pushing platform, the pushing cylinder will work at the same time to push the bottles over the sealing-cutting line.
3.Cover film and sealing: After bottles pushed over the sealing-cutting line, the upper pressing device will press the bottles, this process will protect the bottles falling. After pushing cylinder return, the film sealing cylinder and film cutting cylinder will work together to finish the film covering and sealing process.
4.Shrink: After finishing the film covering the bottles will enter to the shrinking stove.

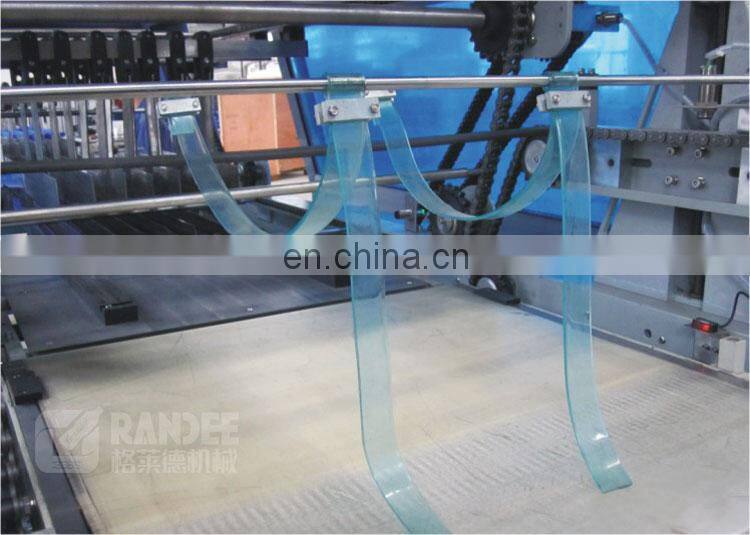

5.Cooling: After shrinking, the bottles will enter into the cooling device which installed on the end part, then enter into the stock shelf and waiting for stacking.
Main machine:

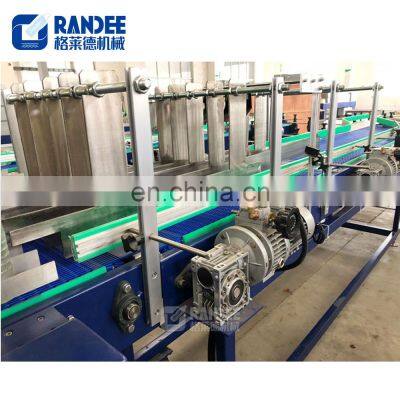

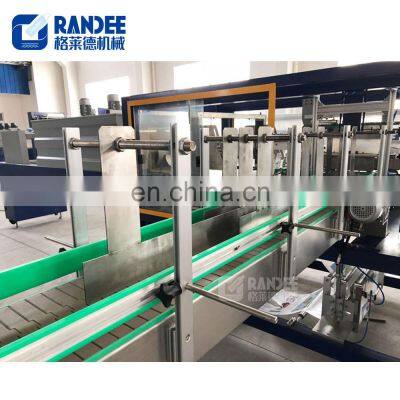

Feeding bottle mechanism

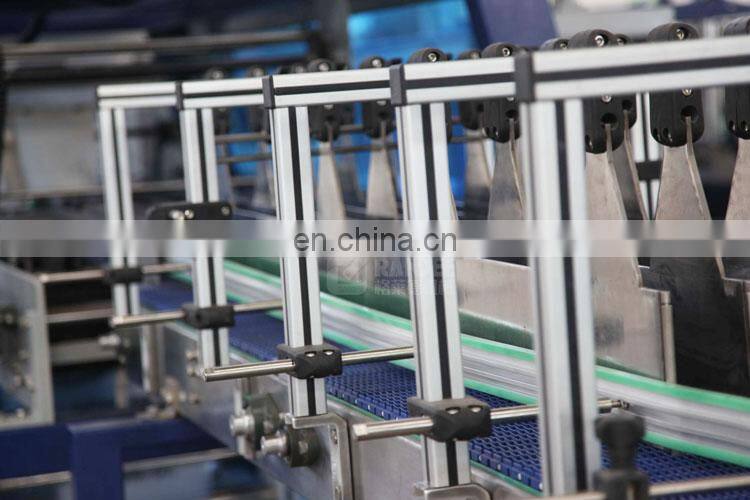

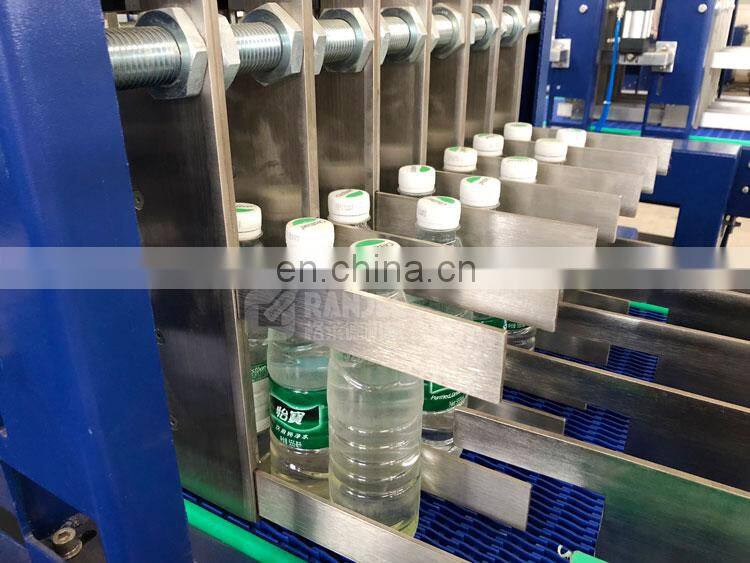

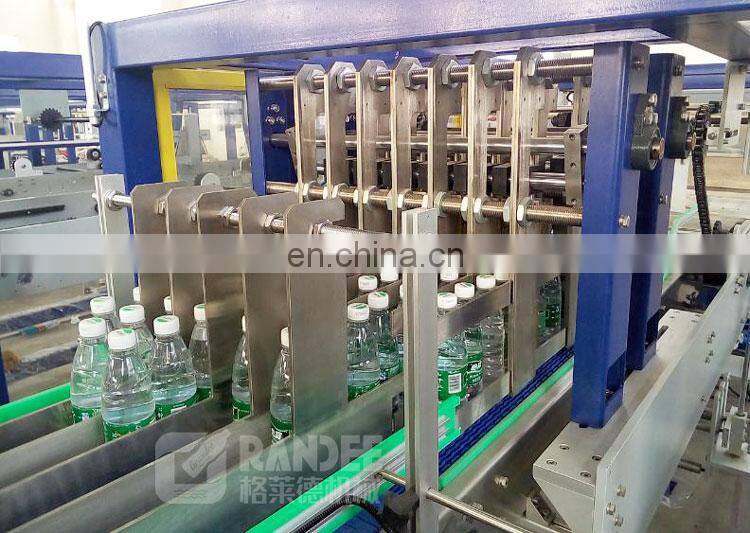

Dividing bottle mechanism

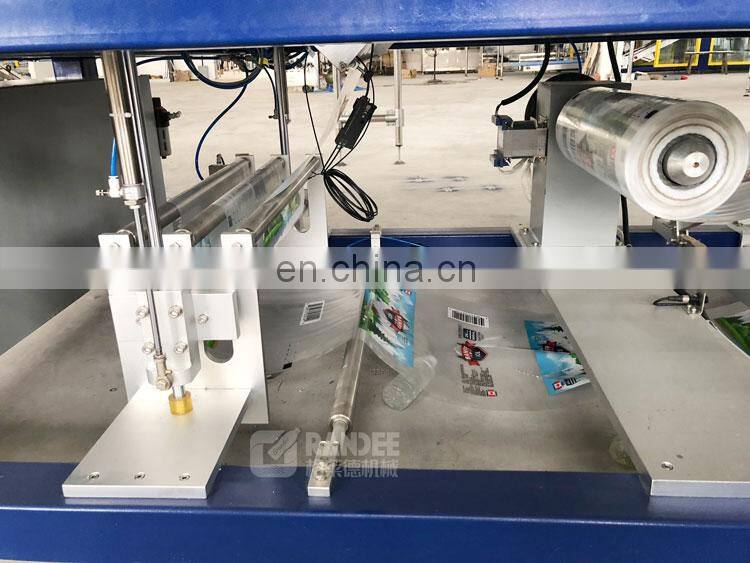

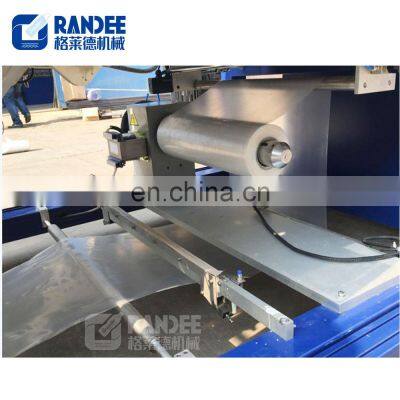

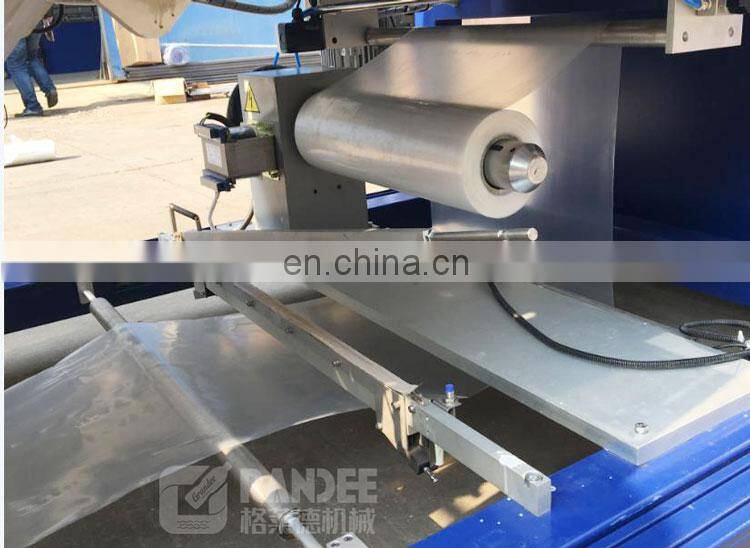

Film and cutting part

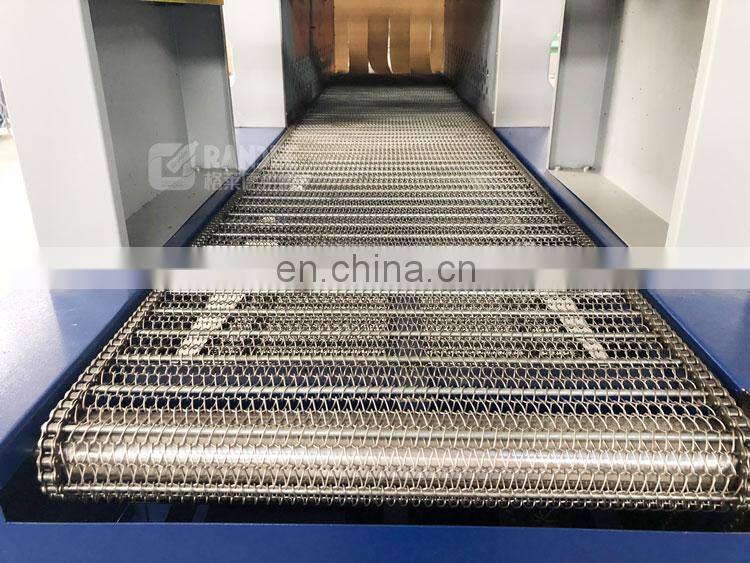

Shrink tunnel

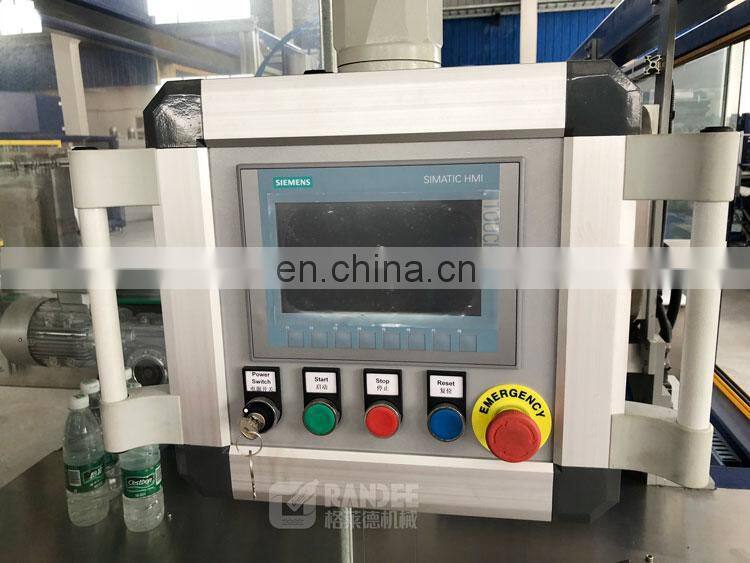

Touch screen

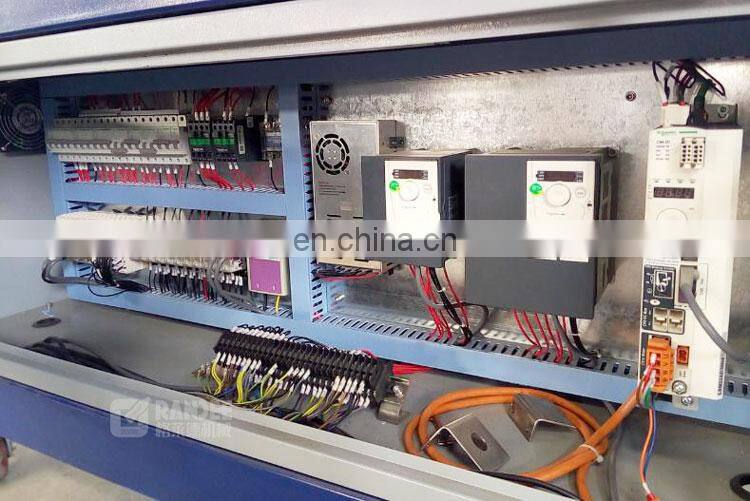

Electrical control box
Main technical parameter:
|
Name |
Automatic high speed heat shrink film shrink packing machine |
|
Model |
GD-450A |
|
Maximum size of package |
420*300*350mm |
|
Max. sealing size |
620mm |
|
Level of the conveyor |
950 ± 30mm |
|
Material of shrink film |
PE |
|
Maximum shrinkage temperature |
160-260℃ |
|
Maximum production speed |
20-25packs / min |
|
Working pressure |
0.6MPa-0.8Mpa |
|
Power (rated/real) |
48kw |
|
Weight |
3150KG |
|
Dimension of the equipment |
10300*1560*2150mm |
Customer's service:
1.Grandee company can provide turn-key project for you, only you have any idea to start beverage factory plant.
2. Grandee company have professional design team, our engineer can draw bottle samples and flow chart of
workshop for you .
3. Grandee company give you the best quotation for all kinds of beverage production, only you can tell me which kind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottle
material, pet or glass,etc
After service:
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
3. After one year guarantee, the seller provides payable spare parts and technician’s VISITING maintenance
service.
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
