Semi automatic PE film heat shrink wrapping machine / manual shrink packing machine
Semi-automatic shrink packaging machine, widely used in beverage, food, pharmaceutical,chemical and combination packaging. It can be adapted to no bottom, the semi-care, cartons, regardless of square, round, flat or shaped packaging can be perfect, the visual effect is very good, low-cost packaging. The machine adopts novel optimization design, electrical automatic control and accurate positioning. Changing bottle and packaging specifications, and flexible adjustment. The machine is safe and beautiful. hot air circulation structure can be adjustable,suitable for a variety of shrink film, film replacement is quick and easy, high-quality electrical components to ensure reliable operation. So as to provide a solid guarantee for constant quality, stable and reliable, continuous production for a long time. Machine are made of high-quality carbon steel and stainless steel precision manufacturing, compact structure, durable, energy-saving effect is remarkable, and first choice device of sleeve PE packaging .
Main machine:

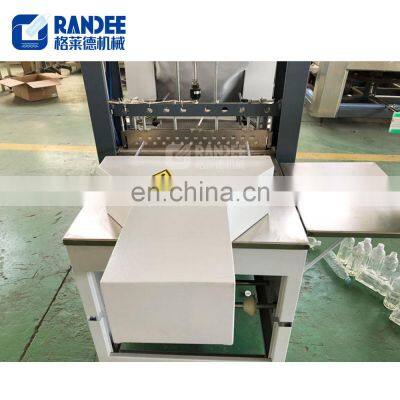

Cutting and shrinking part
Shrink tunnel inside with Stainless stell net belt
Main Technical Parameter:
|
Name |
semi automatic heat shrink film packing machine |
|
Model |
GD-5038B |
|
Max. Packing size(L*W*H) |
450*400*330mm |
|
Min. Packing size(L*W*H) |
250*60*140mm |
|
Power |
20KW |
|
Packing speed(packs/min) |
0-6 |
|
Loading weight(kg) |
25 |
|
Film thickness(mm) |
0.03-0.25 |
|
Dimension(L*W*H) |
4400*830*1800mm |
|
Machine weight |
800KG |
|
Bottle diameter |
50mm-108mm |
|
Working air pressure |
≥ 0.55Mpa |
|
Voltage |
380V 50Hz |
|
level height of conveyor belt |
800±30mm |
|
Water filling machine:
The machine is mainly used for producing PET bottled mineral water, pure water and non-carbonated drink, and washing filling screwing is integrated in one unit. |
|
|
Blowing machine with different options:
1. Semiautomatic Blowing Machine for 800BPH-2000bph from 0.2-2.5L bottle with 2 or 4 cavities.
2. Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle. |
|
RO system
This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 100000L/hr. This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised. We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc |
|
|
Semi automatic labeling machine: 1. Steam Heating Shrink Tunnel can be applied to different and irregular bottle types, e.g. round,square and flat bottles. It adopts seamless tube, the distribution of low-pressure steam drum and the spout of steam use the separation style which make the tunnel smooth. 2. Steam generator the water is fed into the series of wholly automatic electrical heating generator by high pressure potential vortex pump made of copper with short water-supply time and durable service. |
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
•Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
