Product Description

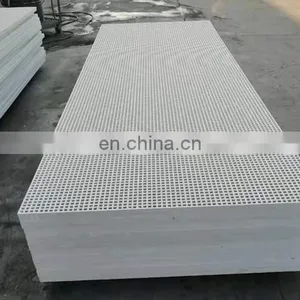

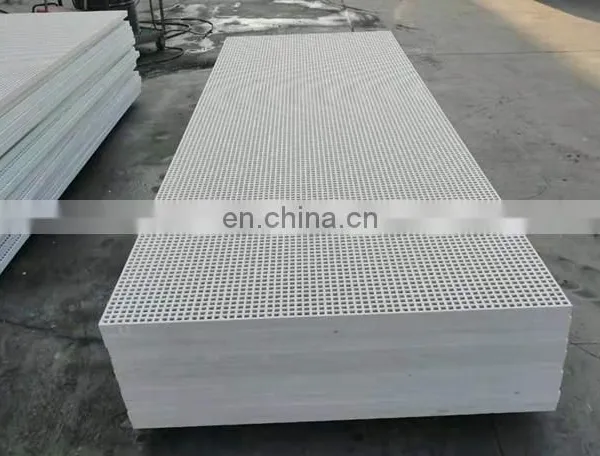

Certified manufacturer fiberglass grating panel FRP Grillerates grating grid frp
FRP Molded Grating is a structural panel which uses high-strength E-Glass roving as reinforcing material, thermosetting resin as matrix and then casted and formed in a special metal mold.
FRP grating feature:
Anti-Fire | Anti-Corrosion | Chemical Resistant | Anti-Slippery | Light Weight | High Loading Capacity | Long Service Life
Non-Conductive or Magnetic | Easy Installation | Cut to Size division available with quick turn-around time.
Anti-Fire | Anti-Corrosion | Chemical Resistant | Anti-Slippery | Light Weight | High Loading Capacity | Long Service Life
Non-Conductive or Magnetic | Easy Installation | Cut to Size division available with quick turn-around time.
Usual size are as following:
1.Sheet size: 1.22*3.66m and 1m*4m
2.Thickness: 25mm, 30mm, 38mm, 50mm, 65mm
3.Mesh size: 38mm*38mm, 40mm*40mm, 50mm*50mm
1.Sheet size: 1.22*3.66m and 1m*4m
2.Thickness: 25mm, 30mm, 38mm, 50mm, 65mm
3.Mesh size: 38mm*38mm, 40mm*40mm, 50mm*50mm
Specification |
Bar Size (Top/Below)
|
Panel Size |
Open area |
Weight |
Mesh size 38mm*38mm, 25mm thickness |
6.5/5.0mm |
1.22*3.66m |
68% |
12.5kgs/m2 |
Mesh size 38mm*38mm, 30mm thickness |
6.5/5.0mm |
1.22*3.66m |
68% |
14.75kgs/m2 |
Mesh size 38mm*38mm, 38mm thickness |
7.0/5.0mm |
1.22*3.66m |
68% |
19.5kgs/m2 |
Mesh size 50mm*50mm, 50mm thickness |
8.0/6.0mm |
1.22*3.66m |
78% |
23.5kgs/m2 |
Mesh size 19*19/38*38mm, 50mm thickness |
7.0/5.0mm |
1.22*3.66m |
40% |
23.5kgs/m2 |

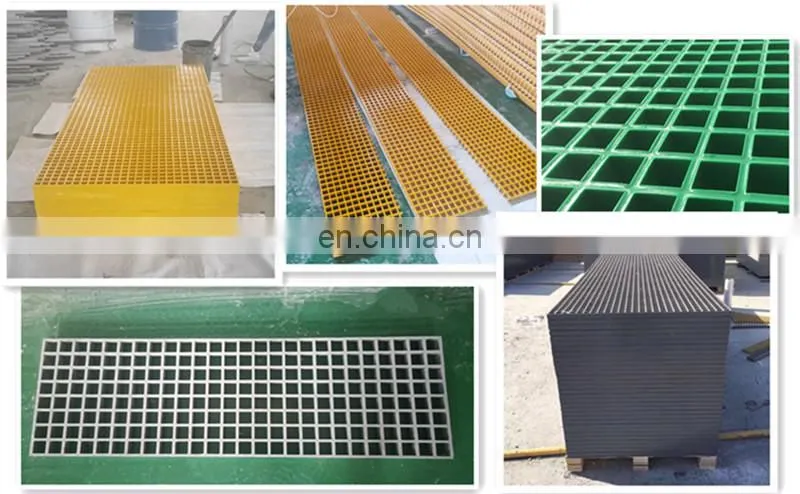

Smooth Surface – Great for Bar Screens at Wastewater Treatment plants or Architectural applications
Grit Surface – Excellent slip resistant surface
FRP grating with top cover
Higher loading weight
38mm height FRP grating
25mm height FRP grating
whole panel size: 1220mm*3660mm
Customized sheet size, such as 1m*2m, 1.22m*2m, 1m*3m or other required size.
Certified manufacturer fiberglass grating panel FRP Grillerates grating grid frp
FRP Molded Grating is widely used in oil industry, power engineering, water & waste water treatment, ocean survey as working floor, stair tread, trench cover, etc. and is an ideal loading frame for corrosion circumstances.
Our Lanyu company is very professional FRP grating manufacturer in China.
The process for the FRP grating production is as following:
Welcome your inquiry about FRP grating anytime.
