FRP Grating in Marina FRP Fiberglass Reinforced Panels GRP Grating UAE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Heavy Duty FRP Mesh Grating Anti-slip Floor GratingNegotiableMOQ: 1 -
Anti Slip Walkway Grille Glass Fiber Slot Grille Mini Mesh Fiberglass GratingNegotiableMOQ: 1
-
Anti Slip Splicing Grille Floor Mat Garage Indoor Corner Plastic Floor Plastic Floor GrillesNegotiableMOQ: 1
-
Non Slip Floor Tile Garage Removable Plastic Grille Interlocking Ground Mat Solid Cover PlateNegotiableMOQ: 1
-
High Quality Plastic Sheet Panels PP Grating Plastic Splicing GrilleNegotiableMOQ: 1
FRP grating in marina FRP fiberglass reinforced panels GRP grating UAE

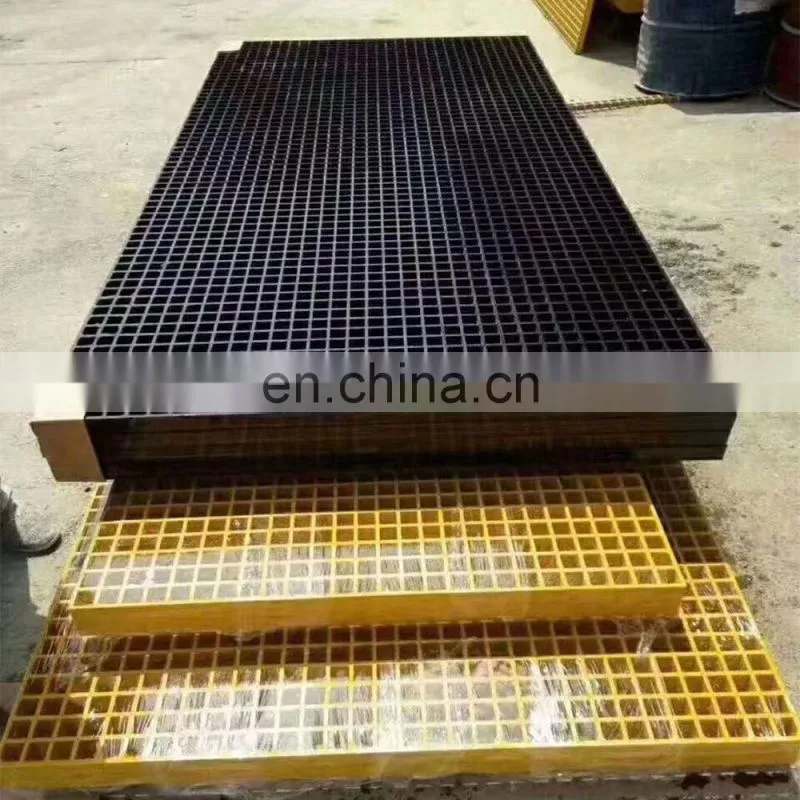

FRP Molded Grating is a structural panel which uses high-strength E-Glass roving as reinforcing material, thermosetting resin as
matrix and then casted and formed in a special metal mold. It provides properties of light FRP Molded Grating is a structural
panel which uses high-strength E-Glass roving as reinforcing material, thermosetting resin as matrix and then casted and formed in
a special metal mold. It provides properties of light weight, high strength, corrosion resistance, fire resistance and anti-skid.
matrix and then casted and formed in a special metal mold. It provides properties of light FRP Molded Grating is a structural
panel which uses high-strength E-Glass roving as reinforcing material, thermosetting resin as matrix and then casted and formed in
a special metal mold. It provides properties of light weight, high strength, corrosion resistance, fire resistance and anti-skid.

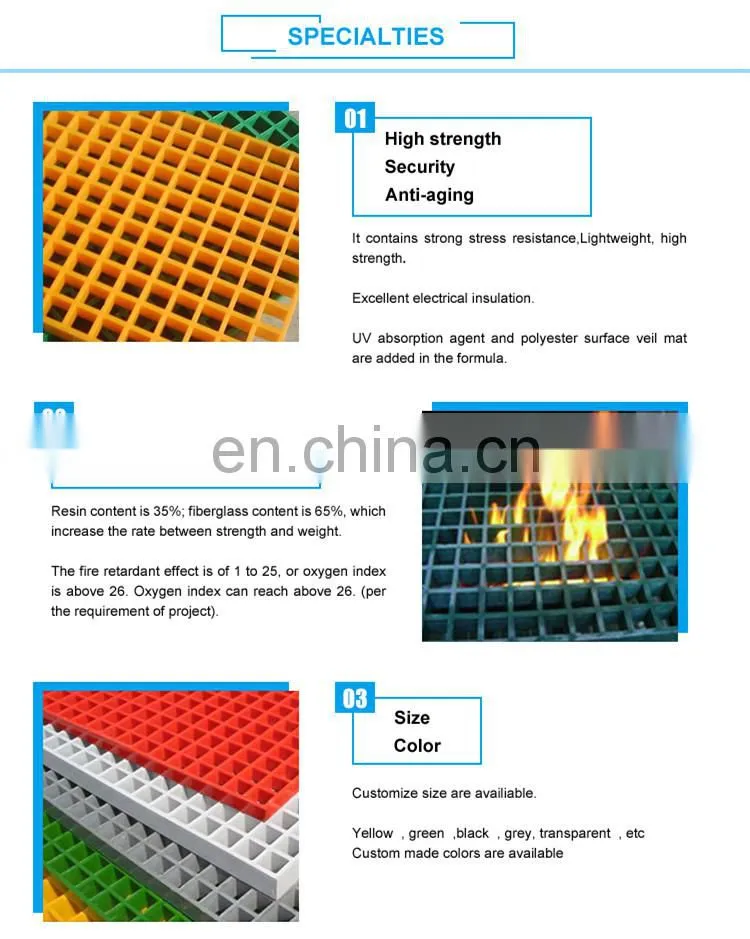

FRP Molded Grating Strong Points:
1. Corrosion ResistanceDifferent types of resin provide their own different anti-corrosion properties, which could be used in different corrosion circumstance such as acid, alkali, salt, organic solvent (in gas or liquid form) and the like over a long
period.
2. Fire ResistanceOur special formula provide grating with excellent fire resistant performance.
3. Light Weight & High StrengthThe perfect combination of the continuous E-glass roving and thermosetting polyester resin provide grating with light weight and high strength and its specific gravity is only 1/4 of that of steel, 1/3 of aluminum. Its rigidity is up to and even exceeds that of steel. Different thickness and mesh size bring the client more choice.
4. Safety & Anti-slipThe high modulus of elasticity and various surfaces provided the super anti-skid performances. Its surface could be smooth surface, meniscus surface, grit surface and chequer plate cover which is suitable for different working places.
5. Electrical InsulatingHigh strength E-glass roving and high-grade resin provide the product super electric performance. Its electric break strength could reach 10KV/mm. There is no electric spark even when impact by tools, meanwhile it is non-magnetism. FRP Molded Grating could be used safely under the antiknock, diamagnetism and electric-resistance environments.
6. Aging ResistanceThe high-grade resin and anti-ageing stabilizer provide grating long-life ageing resistant performance and the unique design make grating excellent self-cleanness function and keep its brightness and strength over a long time. The service life of grating could be 25 years.
1. Corrosion ResistanceDifferent types of resin provide their own different anti-corrosion properties, which could be used in different corrosion circumstance such as acid, alkali, salt, organic solvent (in gas or liquid form) and the like over a long
period.
2. Fire ResistanceOur special formula provide grating with excellent fire resistant performance.
3. Light Weight & High StrengthThe perfect combination of the continuous E-glass roving and thermosetting polyester resin provide grating with light weight and high strength and its specific gravity is only 1/4 of that of steel, 1/3 of aluminum. Its rigidity is up to and even exceeds that of steel. Different thickness and mesh size bring the client more choice.
4. Safety & Anti-slipThe high modulus of elasticity and various surfaces provided the super anti-skid performances. Its surface could be smooth surface, meniscus surface, grit surface and chequer plate cover which is suitable for different working places.
5. Electrical InsulatingHigh strength E-glass roving and high-grade resin provide the product super electric performance. Its electric break strength could reach 10KV/mm. There is no electric spark even when impact by tools, meanwhile it is non-magnetism. FRP Molded Grating could be used safely under the antiknock, diamagnetism and electric-resistance environments.
6. Aging ResistanceThe high-grade resin and anti-ageing stabilizer provide grating long-life ageing resistant performance and the unique design make grating excellent self-cleanness function and keep its brightness and strength over a long time. The service life of grating could be 25 years.
Product Description

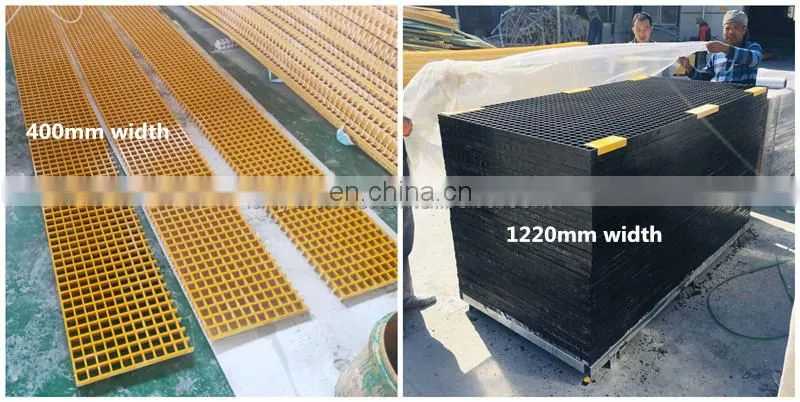

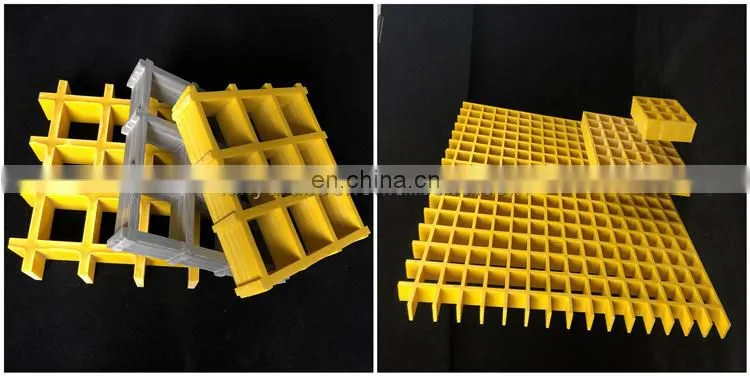

Mesh Size
(mm)
|
Full panel size
(mm)
|
Thickness
(mm)
|
Recommended Span
(200kg/m2)
|
38.1x38.1mm
(1.5''x1.5'') |
1220x3660mm
1000x4038mm
1530x3130mm
1220x4007mm
1526x4046mm
|
25mm
|
≤800mm
|
1220x3660mm
1220x4038mm
|
30mm |
≤1000mm |
|
1220x3660mm
1530x4007mm
1220x4038mm
|
38mm
|
≤1300mm
|
|
Upper19x19mm Below: 38.1x38.1mm |
1224x4042mm |
30mm
(double mesh layers)
|
- |
50.8x50.8mm (2''x2'') |
1220x4020mm |
50mm |
≤1700mm |
100x25mm (4''x1'') |
1010x4030mm |
25mm |
- |
Fibreglass grating frp molded grating
* High anti-fire
* High anti-corrosion and anti-aging
* High anti-slippery
* Light,but high loaded strength
* Long service life and maintenance free
* Non-conduction or magnetic
* Easy installation and rich colors

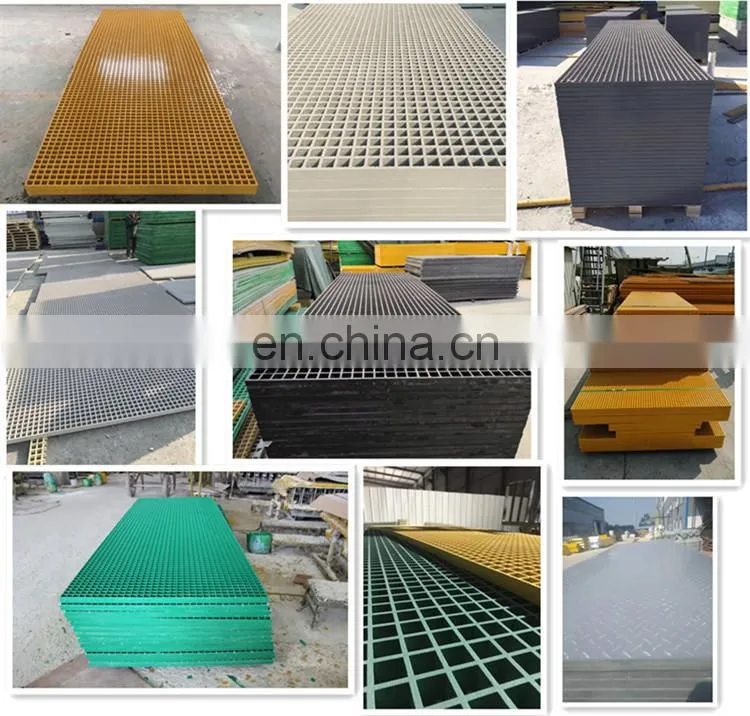

* Various sizes and colors available
It has been widely used in areas such as: industrial , commercial , recreational such as:walkway, operation platform, drilling platforms, stair treads, equipment walkways, trench cover, pedestrian over bridge, ship deck, scaffolding floor, ventilation gate, fence,etc.
FRP grating in marina FRP fiberglass reinforced panels GRP grating UAE
FRP Molded Grating is widely used in oil industry, power engineering, water & waste water treatment, ocean survey as working floor, stair tread, trench cover, etc. and is an ideal loading frame for corrosion circumstances.weight, high strength, corrosion resistance, fire resistance and anti-skid. FRP Molded Grating is widely used in oil industry, power engineering, water & waste water treatment, ocean survey as working floor, stair tread, trench cover, etc. and is an ideal loading frame for corrosion circumstances.

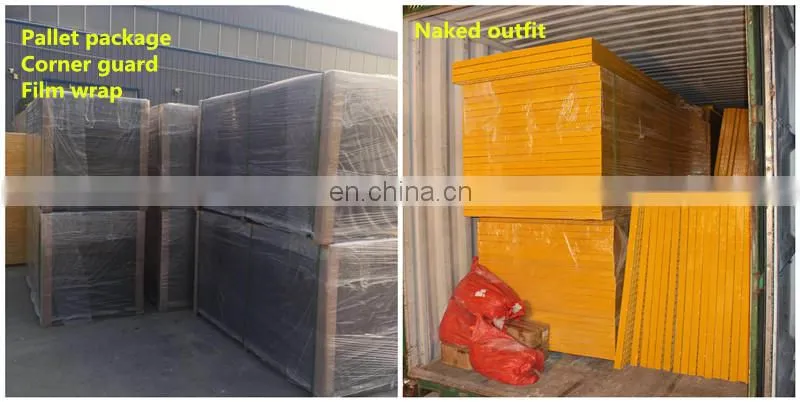

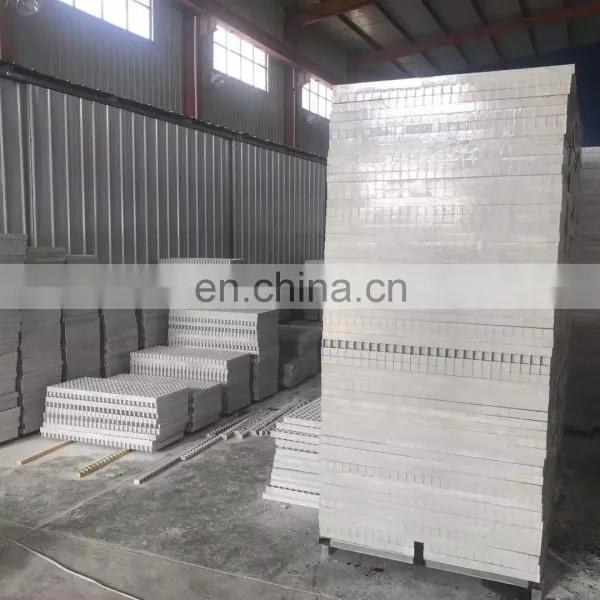

Packing & Delivery
Fibreglass grating frp molded grating |
||
Packing
|
1. Protected by stretch film; |
|
2. Fasten by packing banding and packed on pallet |
||
3. Grating corners are protected by FRP angle or thick papercard. |
||
Delivery
|
1. Stock grating: 3-5 working days. |
|
2.. Manufacturing: 1-2 weeks, or depends on the order quantity. |
||
Welcome your inquiry about FRP grating anytime.
