Product Description

micro mesh frp grating borden grating frp bar grate

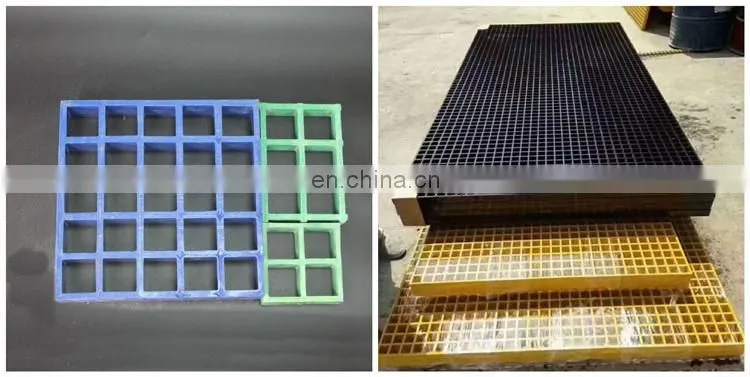

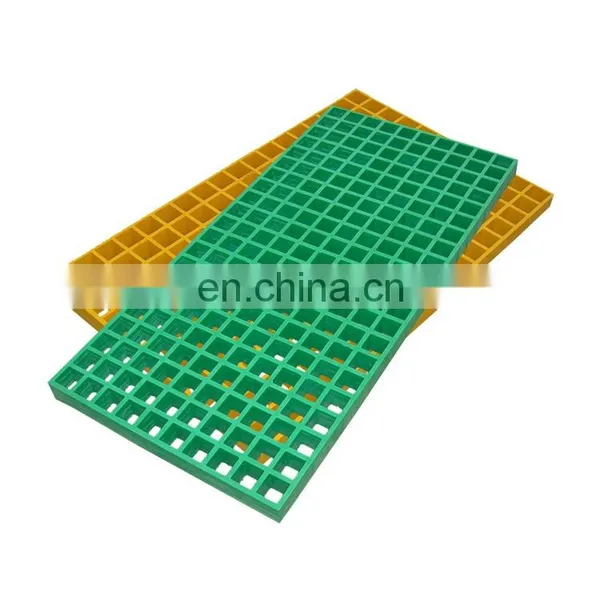

FRP Molded Grating is a structural panel which uses high-strength E-Glass roving as reinforcing material, thermosetting resin as matrix and then casted and formed in a special metal mold.
FRP grating feature:
Anti-Fire | Anti-Corrosion | Chemical Resistant | Anti-Slippery | Light Weight | High Loading Capacity | Long Service Life
Non-Conductive or Magnetic | Easy Installation | Cut to Size division available with quick turn-around time.
Usual size are as following:
1.Sheet size: 1.22*3.66m and 1m*4m
2.Thickness: 25mm, 30mm, 38mm, 50mm, 65mm

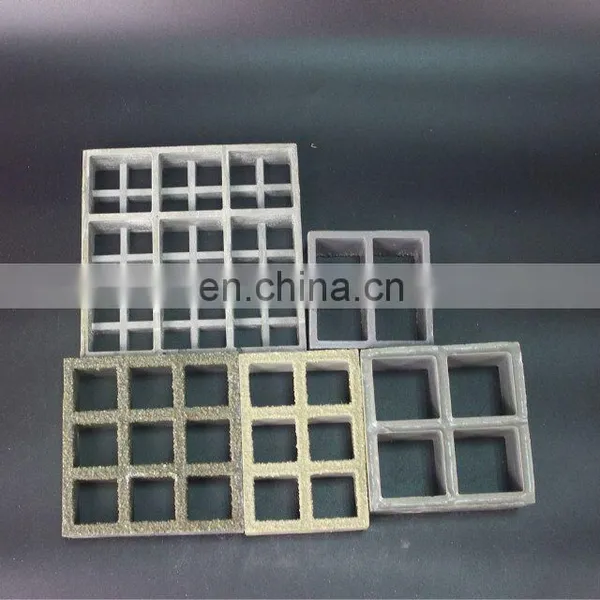

3.Mesh size: 38mm*38mm, 40mm*40mm, 50mm*50mm
Specification
Bar Size
(Top/Below)
Panel Size
Open area
Weight
Mesh size 38mm*38mm, 25mm thickness
6.5/5.0mm
1.22*3.66m
68%
12.5kgs/m2
Mesh size 38mm*38mm, 30mm thickness
6.5/5.0mm
1.22*3.66m
68%
14.75kgs/m2
Mesh size 38mm*38mm, 38mm thickness
7.0/5.0mm
1.22*3.66m
68%
19.5kgs/m2
Mesh size 50mm*50mm, 50mm thickness
8.0/6.0mm
1.22*3.66m
78%
23.5kgs/m2
Mesh size 19*19/38*38mm,  50mm thickness
7.0/5.0mm
1.22*3.66m
40%
23.5kgs/m2
Smooth Surface – Great for Bar Screens at Wastewater Treatment plants or Architectural applications

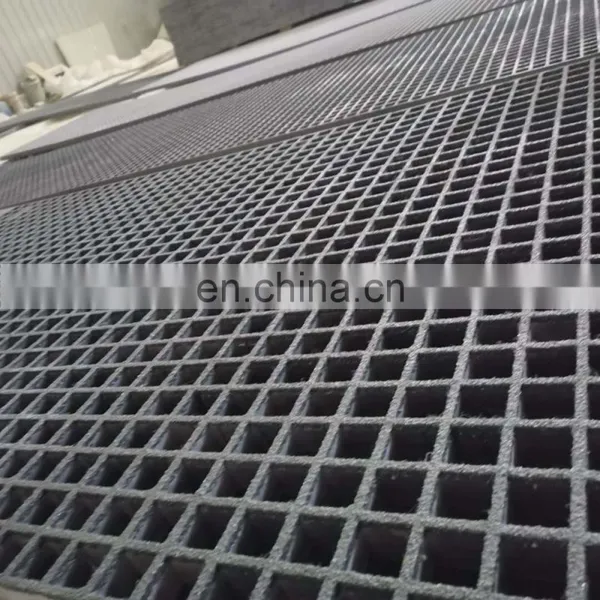

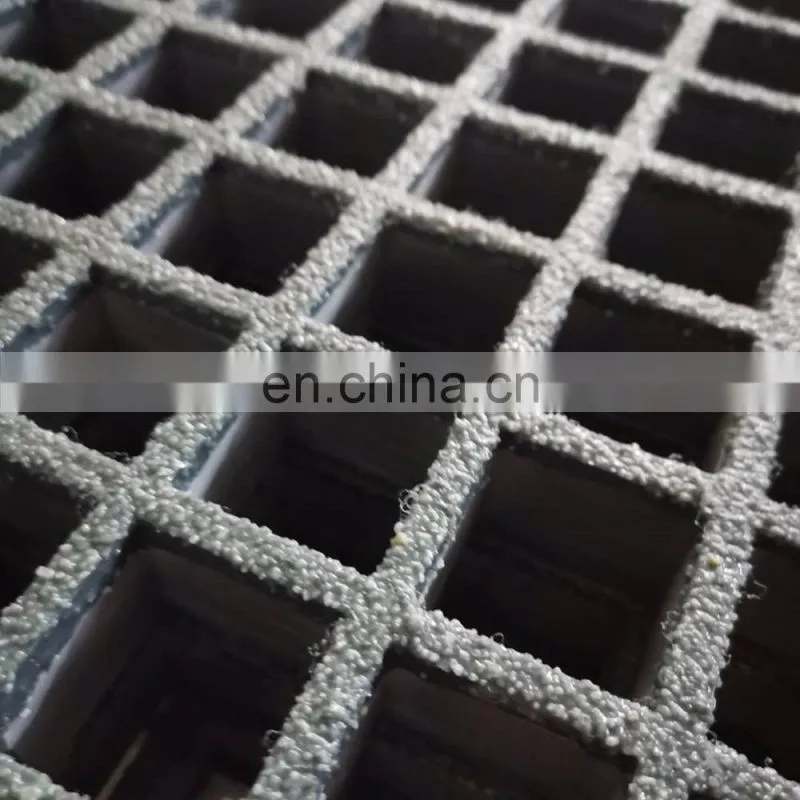

Grit Surface – Excellent slip resistant surface

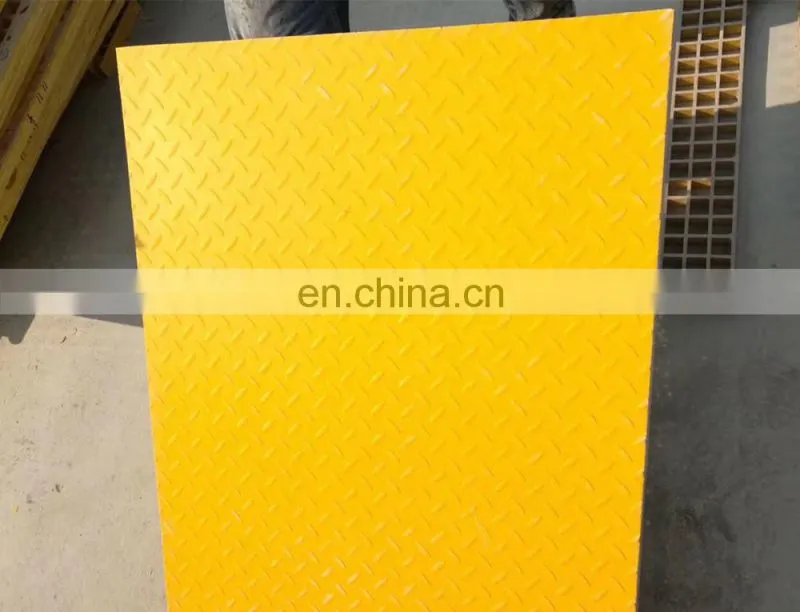

FRP grating with top cover
Higher loading weight
38mm height FRP grating

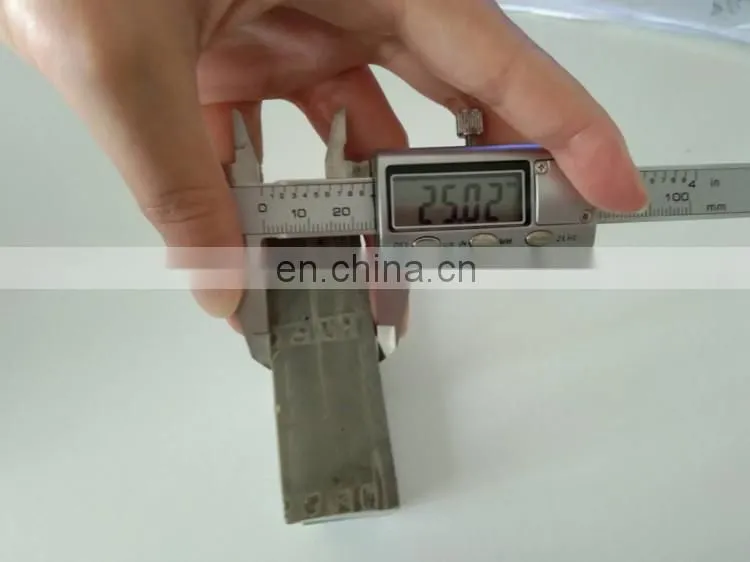

25mm height FRP grating

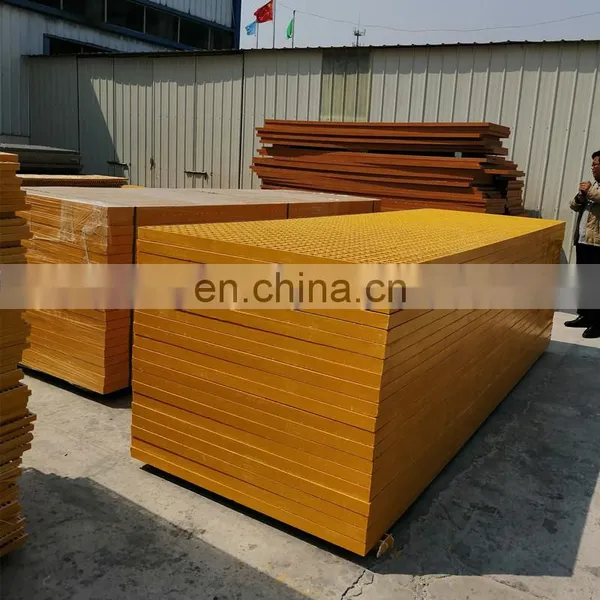

whole panel size: 1220mm*3660mm
Customized sheet size, such as 1m*2m, 1.22m*2m, 1m*3m or other required size.

transparent fiberglass molded grating walkway fiberglass sewage grating

FRP Molded Grating is widely used in oil industry, power engineering, water & waste water treatment, ocean survey as working floor, stair tread, trench cover, etc. and is an ideal loading frame for corrosion circumstances.
Welcome your inquiry about FRP grating anytime.
