Product Details

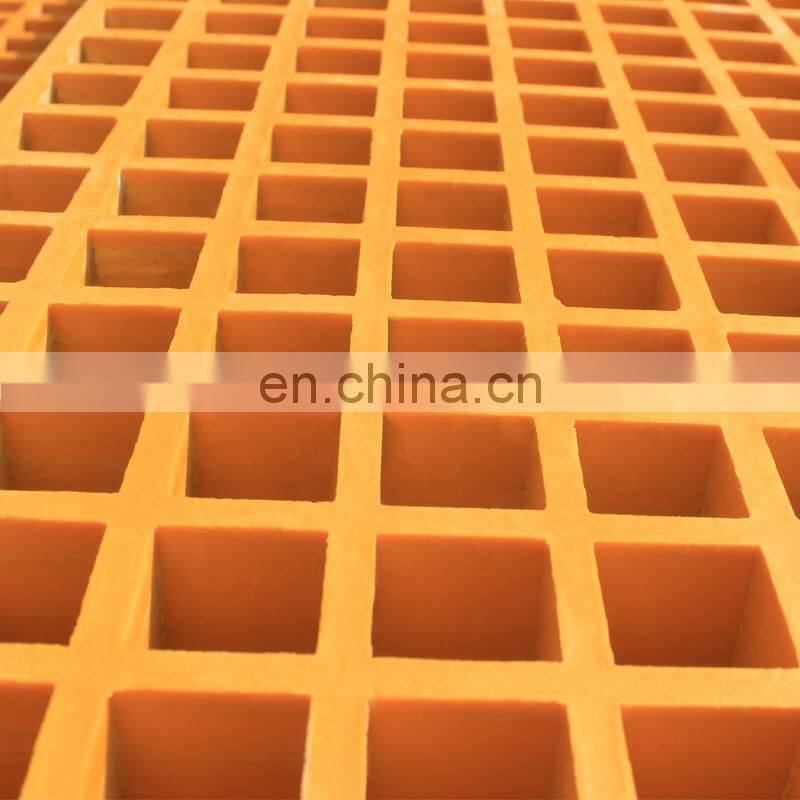

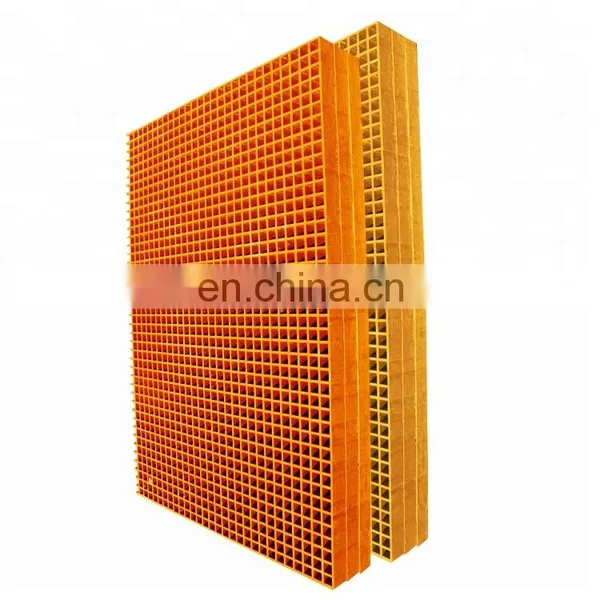

38*38mm Mesh Size Frp Plastic Composite Molded Floor Grating Anti-slip Fiberglass Panel Frp Grating
38*38mm floor drain plastic slatted flooring fiberglass mesh

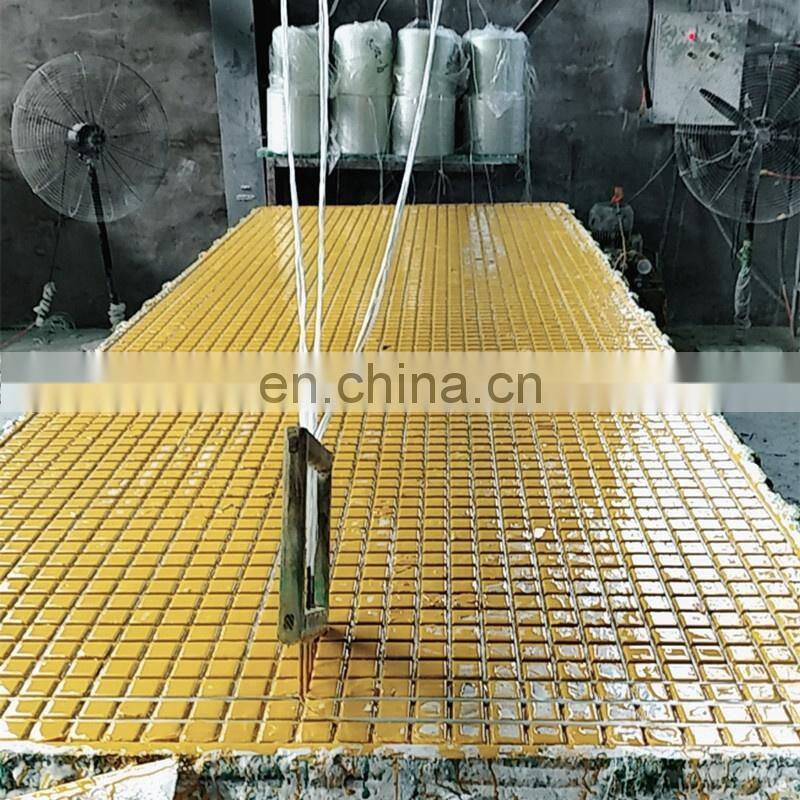

Firberglass Molded grating is manufactured by laying continuous glass fibres in the mould in the direction of vertical and horizontal, and thurougly wetted out with resin, layer by layer.
FRP grating are designed with a high safety factor and are manufactured according to the DIN 24537-3 standard. Our gratings are manufactured in a wide range of sizes in order to guarantee an immediate solution to various design problems and are produced in monolithic panels that are easy and fast to install.
Fiber glass grating producing process such as post applied grit could be bonded after as a secondary operation.This continuous process produces an integral, one piece panel,Frp grating offers excellent corrosion resistance as well as bi-directional strength.
Specification(mm) | Panel size(mm) | Weight(kg) | Customize |
38*38*25 | 1220*3660 | 54 | yes |
38*38*30 | 1220*3660 | 70 | |
38*38*38 | 1220*3660 1000*4007 | 88 81 | |
50*50*50 | 1220*3660 | 98 | |
19*19*38*38*30 | 1075*3626 | 72 | |
38*38*65 | 1030*4040 | 141 | |
40*40*40 | 1010*4040 | 81 | |
19*19*38*38*38 | 1220*3660 | 92 | |
25*25*50*50*30 | 1220*3660 | 62 |
Product Details Show

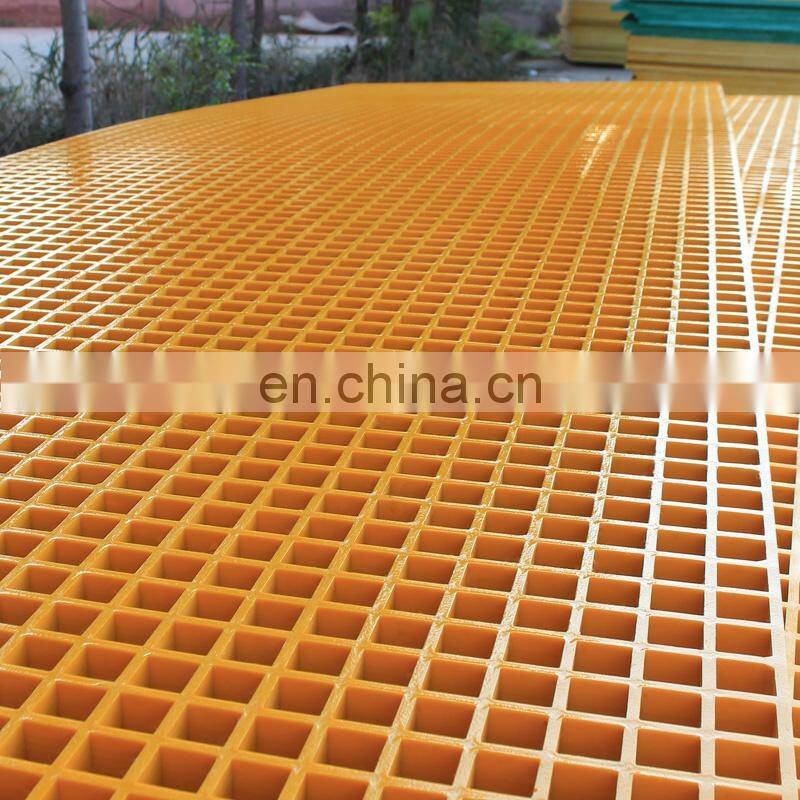

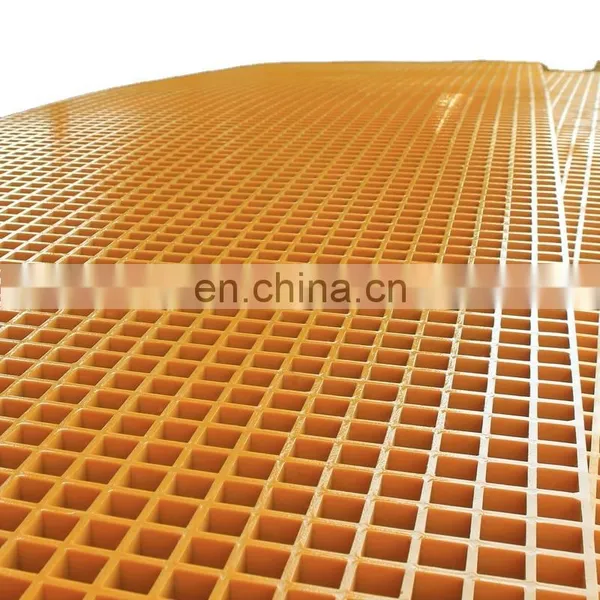

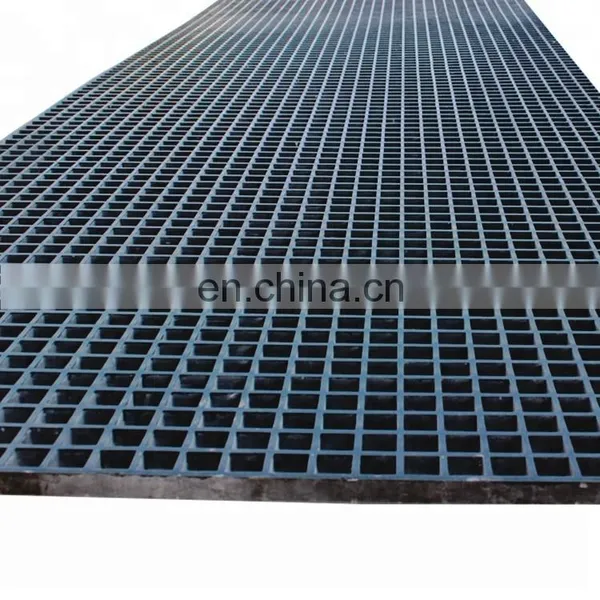

Frp grating with smooth surface is normal use in walkway.Grating contains strong stress resistance, Lightweight, high strength.
Excellent electrical insulation.
UV absorption agent and polyester surface veil mat are added in the formula.
UV absorption agent and polyester surface veil mat are added in the formula.

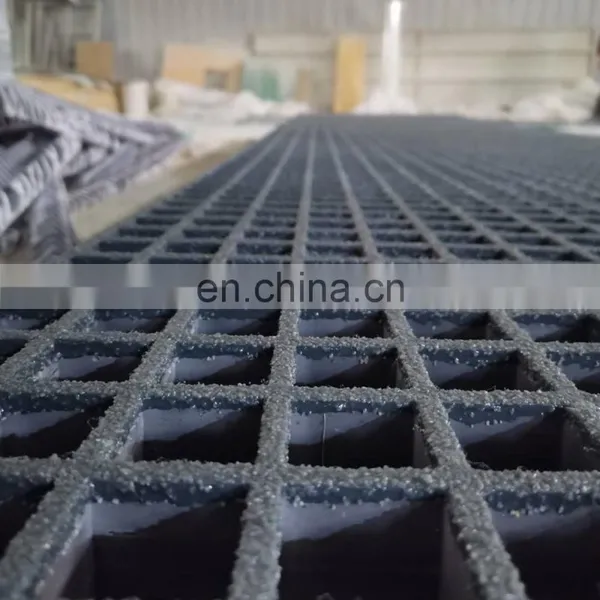

Gritted surface of frp grating
Frp grating of gritted surface
Good mechanical property Inflaming RetardingResin content is 35%, fiberglass content is 65%, which increase the rate between strength and weight.
The fire retardant effect is of 1 to 25, or oxygen index is above 26. Oxygen index can reach about 26.(Per the requirement of
project)
Frp grating with concave surface can customized size

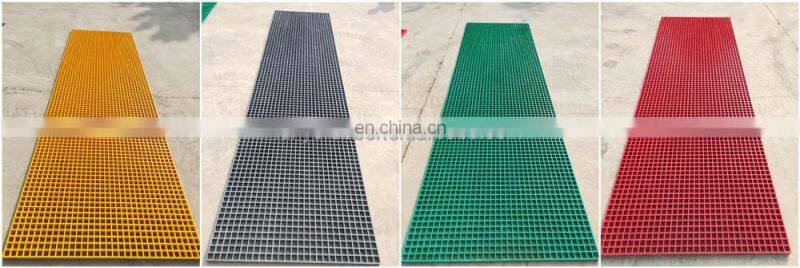

Yellow, green, black, grey, transparent, etc
Customized color are available.
Yellow, green, black, grey, transparent, etc
Customized color are available.

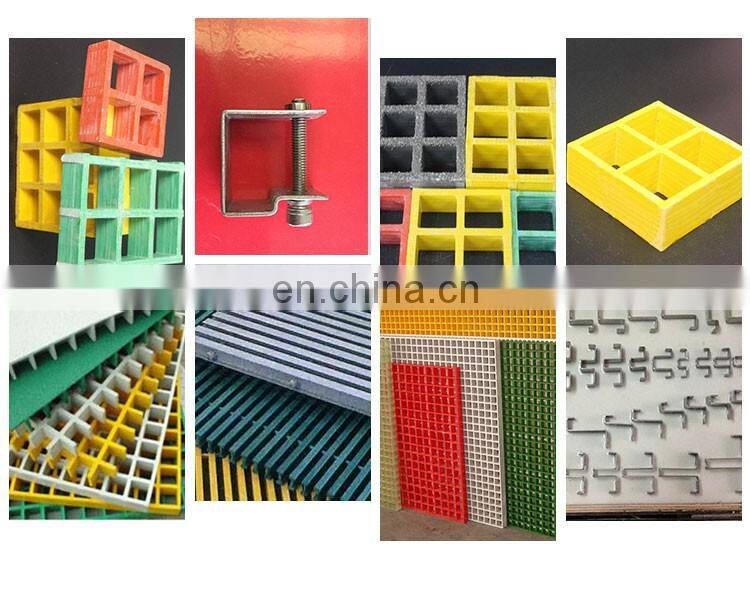

Product Displays
Our producing types of frp(fiberglass) grating, from mesh size to panel size, and we can customized size of fiberglass grating according your requirement.
Application
Fiber (frp) graiting is used as tree grating ,car wash drain grating and walkway grating and so on, have widely use value.
Process and Packing

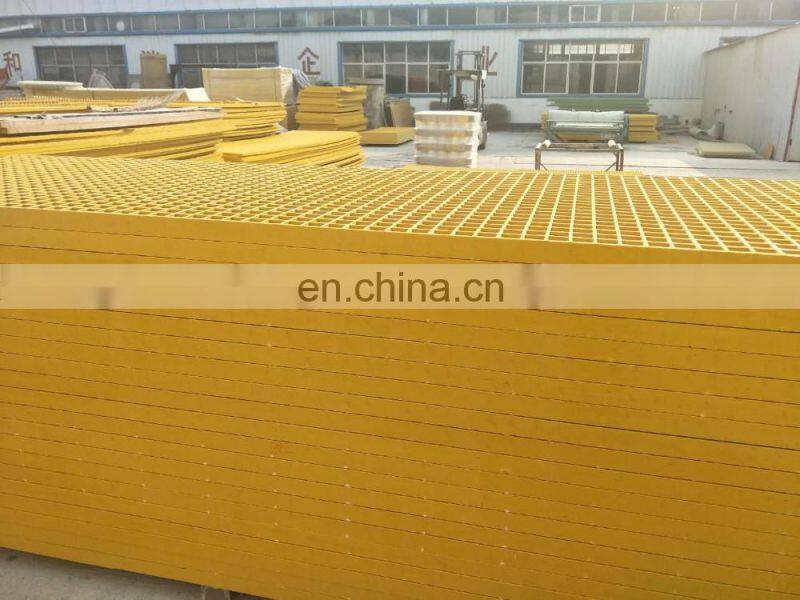

Our factory

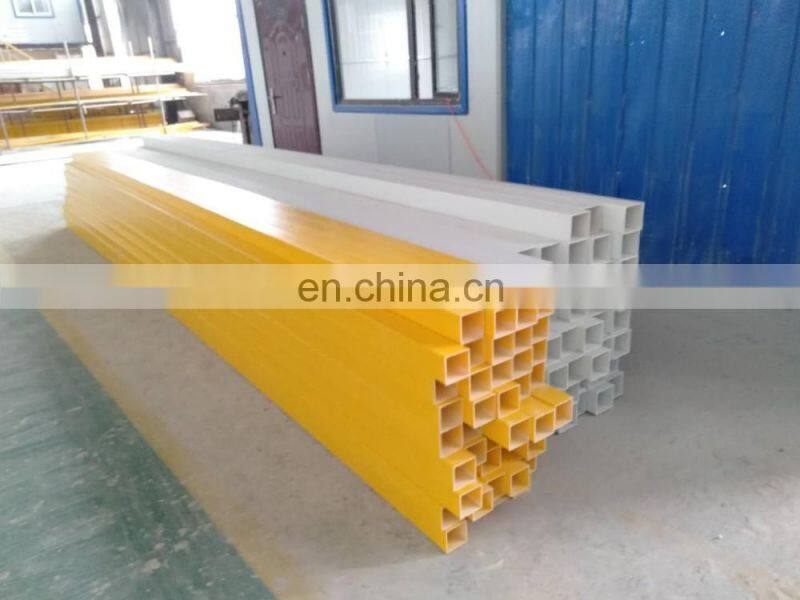

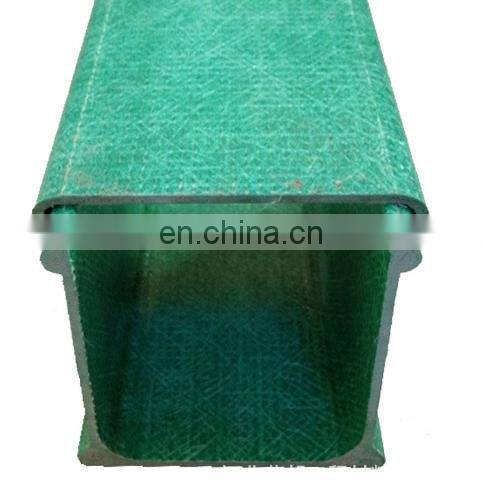

Related products
Contact us
If you are interseted in our fiberglass grating, please feel free contact with us!
