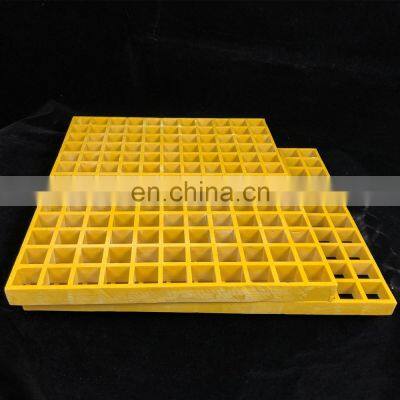

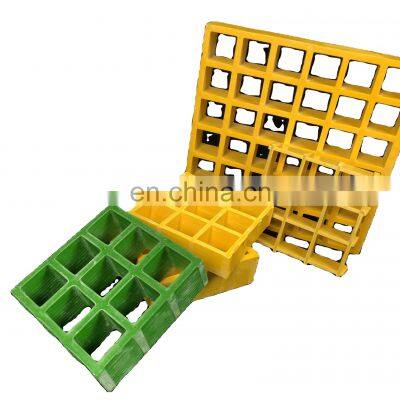

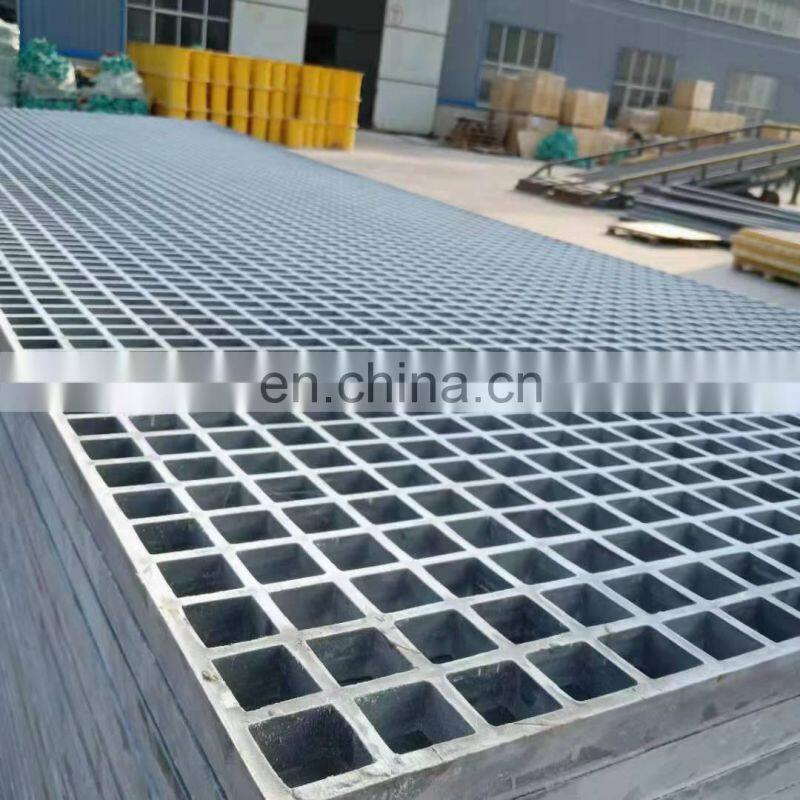

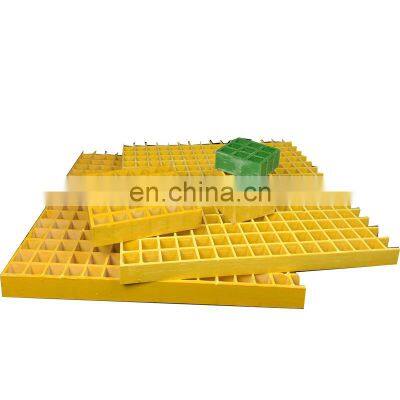

Glass fiber reinforced plastic industrial flume cover plate water grille
Firberglass Molded grating is manufactured by laying continuous glass fibres in the mould in the direction of vertical and horizontal, and thurougly wetted out with resin, layer by layer.
FRP grating are designed with a high safety factor and are manufactured according to the DIN 24537-3 standard. Our gratings are manufactured in a wide range of sizes in order to guarantee an immediate solution to various design problems and are produced in monolithic panels that are easy and fast to install.
Frp grating producing process such as post applied grit could be bonded after as a secondary operation.This continuous process produces an integral, one piece panel,Frp grating offers excellent corrosion resistance as well as bi-directional strength.
advantage of floor drain deck fibreglass sheet molded grating plastic grid :
1. Corrosion Resistance
2.Anti-slippery
3. Light Weight but High Loaded Strength
4. Various Sizes and Colors Available
5. Easy Installation and Maintenance
Specification(mm) |
Panel size(mm) |
Weight(kg) |
Customize |
38*38*25 |
1220*3660 |
54 |
yes
|
38*38*30 |
1220*3660 |
70 |
|
38*38*38 |
1220*3660 1000*4007
|
88 81
|
|
50*50*50 |
1220*3660 |
98 |
|
19*19*38*38*30 |
1075*3626 |
72 |
|
38*38*65 |
1030*4040 |
141 |
|
40*40*40 |
1010*4040 |
81 |
|
19*19*38*38*38 |
1220*3660 |
92 |
|
25*25*50*50*30 |
1220*3660 |
62 |
Frp grating with smooth surface is normal use in walkway.Grating contains strong stress resistance, Lightweight, high strength.
Yellow, green, black, grey, transparent, etc .Customized color are available.
If you are interseted in Glass fiber reinforced plastic industrial flume cover plate water grille, please feel free to contact us!
