Anti-Corrosion Structural FRP Square Tube Fiberglass Pole FRP Fiberglass Pipes
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FRP/GRP Hollow Fiberglass Rod Tube Anti-aging Pultruded Rectangle Hollow TubeNegotiableMOQ: 1 -
FRP Fiberglass Pultrued Round Rube Profiles GRP Plastic U Profiles ChannelNegotiableMOQ: 1
-
Guaranteed Quality Reasonable Price High Strength FRP Extruded Round Tube Square Tube FRP Pultruded ProfileNegotiableMOQ: 1
-
High Strength Pultruded Fiberglass FRP/GRP C ChannelNegotiableMOQ: 1
-
Quality Assured Flexible Customized Fiberglass Pultrusion Products Factory Price Durable FRP Pultruded ProfilesNegotiableMOQ: 1
Product Description
Anti-Corrosion Structural FRP Square Tube fiberglass pole FRP Fiberglass Pipes
Fiberglass Reinforced Plastic Pipe FRP Pultruded Square Round rectangular tube he glass fiber tube is a profile with a fixed cross-section shape that is continuously produced by using glass fiber as a reinforcing material to form a mold with a consistent cross-sectional shape, and after solidification and molding. The value of its longitudinal bending strength and impact strength exceeds that of ordinary profiles. The use of glass fiber mat increases the transverse strength of the profile so that it has good anti-corrosion and anti-cracking properties. Therefore, glass fiber tube have great advantages, such as light weight, high strength, good elasticity, stable and precise dimensions, insulation, non-thermal conductivity, flame retardant, beautiful and easy to maintain. Fiberglass tube are widely used, and can be used in flagpoles, awnings, tents, curtains, benchmarking poles, exhaust fan columns, car antennas, construction, bridge reinforcement, mechanical drive shafts, golf clubs, courtyard fences, kite frames, umbrella frames, and support blankets Frames, aircraft modelframes, luggage frames, fishing gear accessories, etc.,
especially in corrosive environments, are ideal products to replace steel and other materials. Features: 1: Strong corrosion resistance, good heat resistance and cold resistance, good verticality, good mechanical strength; suitable for the rotating shaft of circuit board printing equipment 2: High-strength and light-weight impact resistance: flying butterfly ring, baby carriage bracket, game blanket support rod, kite windmill, toys and other livelihood industries 3: Insulation, anti-static, good permeability: suitable for aerospace, construction machinery and equipment, transformers and other structural materials 4: Anti-aging, long life, maintenance-free: switch pins, water sports equipment, etc. 5: Fireproof and flame retardant, insulation, heat insulation and UV resistance 6: Strong designability, light weight, smooth and beautiful appearance
Items | Result |
Density | 1.85g/cm3 |
Water Absorption | 0.57% |
Flexural modulus | 18.6 GPa |
Flexural strength | 302 MPa |
Tensile strength | 210MPa |
Tensile Modulus | 22GPa |
Flame retardant rating | V0/V1 |
Dielectric breakdown voltage | 14.98KV |
Place of Origin | Hebei China |
Type | Round tube, square tube,rectangular tube, I beam,Angle , C channel, Accept customized |
Length | as your required |
Technique | Pultrusion |
Surface treament | Smooth |
Processing Service | Bending, Decoiling, Moulding, Welding, Punching, Cutting |
Fiberglass tube size | ||||
Round Tube size (Diameter)mm | Square tube(L*W)mm | Rectangular tube (L*W) mm | ||
25mm | 25*25 | 50*25mm | ||
32mm | 20*20 | 51*38mm | ||
38mm | 25*25 | 52*32mm | ||
42mm | 30*30 | 70*28mm | ||
50mm | 40*40 | 91*38mm | ||
64mm | 50*50 | 91*112mm | ||
76mm | 60*60 | |||
89mm | 100*100 | |||
101mm | 150*150 | |||
Product Features
Exquisite raw materials
The product is composited with glass fiber reinforced plastic unsaturated polyester resin
High quality
The pultruded profile has a high glass fiber content and other composite materials have high molding processes, so the longitudinal strength is higher and the pultruded profile has a lower modulus than steel. Usually only 1/7-1/10 of steel
Long use time
The pultruded profile is made of thermosetting resin fiber different from the normal service life of general thermoplastic products of 20 years
Easy maintenance
The pultruded profile is made by blending the color into the resin. The color of the product can be blended arbitrarily according to the customer's requirements. It is not easy to fade, does not require paint maintenance and has a self-cleaning function.
Customized
We accept customized, if you want other size, please contact e at any time
Product production process
Anti-Corrosion Structural FRP Square Tube fiberglass pole FRP Fiberglass Pipes
The first step in the pultrusion process is to saturate the fibers by pulling them through a resin impregnator containing a bath made of epoxy, polyurethane, polyester, and/or vinyl ester.
Often, fillers and additives such as colorant, fire inhibitors, and UV retardants are blended into the bath to enhance the
finished product. Next, the saturated fibers enter a “pre-former” tool that squeezes out excess resin and shape the fiber reinforcements. The composite is then pulled through a heated die, which cures the thermosetting resin to create a solidified polymer of the intended shape and size.
Lastly, the hardened polymer is pulled toward a cutting blade so it can be cut into the desired length. Urethane pull blocks are used to prevent the finished product from cracks,distortion, and deformation during this process.
Often, fillers and additives such as colorant, fire inhibitors, and UV retardants are blended into the bath to enhance the
finished product. Next, the saturated fibers enter a “pre-former” tool that squeezes out excess resin and shape the fiber reinforcements. The composite is then pulled through a heated die, which cures the thermosetting resin to create a solidified polymer of the intended shape and size.
Lastly, the hardened polymer is pulled toward a cutting blade so it can be cut into the desired length. Urethane pull blocks are used to prevent the finished product from cracks,distortion, and deformation during this process.
Packing & Delivery

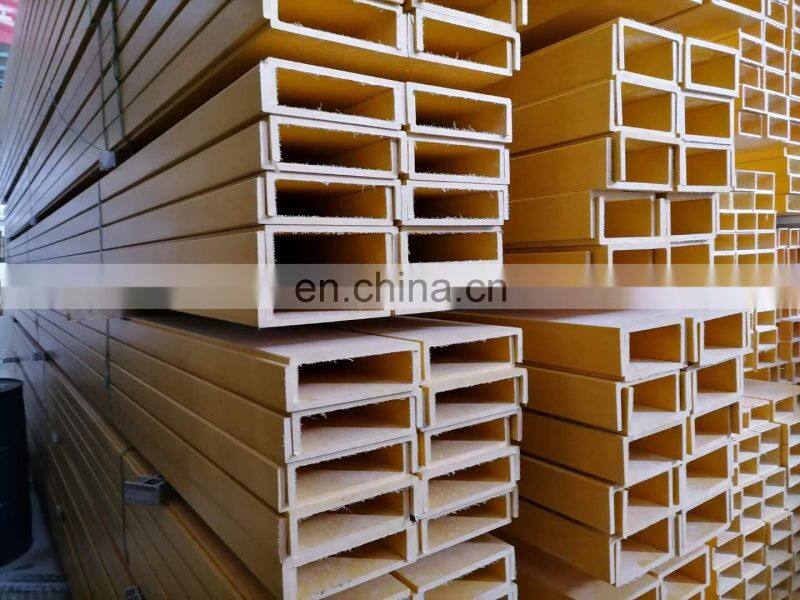

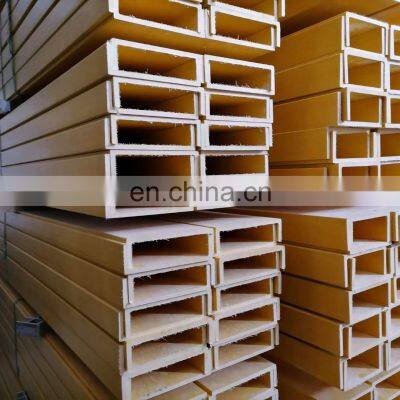

Fiberglass frp structural square beam plastic profil square frp rectangular tube packing by film
Fiberglass pultruded profiles are widely used, with full product range, various from C channel, H beam, L profile, rod, flat beam, round tube, square tube, angel, etc., also to customized-design profile. FRP pultrusion can be applied in light industry, construction platform, handrail system, walk way, cable tray, electric field, Industrial building, marine engineering, underwater project, handrail system, heavy-load operation platform
Product application
Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 7-30 days, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but you need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance and the balance before shippment.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 7-30 days, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but you need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance and the balance before shippment.
