Product Description
Features:
* This series adopts PLC control and a LCD touch-sensitive man-machine interface control system for centralized and convenient operation, which can control the automatic operation of the whole machine;
* Equipped with a dual cooler structure to ensure lower return air temperature and dew point;
* Equipped with a return air filter inside to ensure that the honeycomb rotor is not polluted by raw material dust;
* An imported full molecular sieve honeycomb rotor is used for dehumidification, which has better dehumidification effect than plastic adsorption honeycombs;
* Equipped with a weekly timing function to realize the automatic operation of the whole machine.
Optional devices:
* Optional dew point meter, convenient to monitor the dew point at any time;
* Optional electric drying heater and temperature controller, which can be used together with the drying bucket to dehumidify and dry raw materials;
* Heat-resistant air duct, support-based cyclone dust collector and oil filter are optional.
Composition and basic working principle of the “honeycomb rotor”:
The main part of the honeycomb rotor is composed of the ceramic honeycomb made of ceramic fibers and organic additives. Molecular sieve and silicone rubber are used as basic materials, which undergo high-temperature crystallization and sintering until their surface becomes hard and strongly adsorbed inside the honeycomb. The honeycomb is divided into: dehumidification area, cooling area, and regeneration area. The humid return air passes through the dehumidification area of the honeycomb rotor, then moisture in numerous small holes is quickly absorbed by the molecular sieve for dehumidification, and dry air with a very low dew point is obtained. After moisture absorption, the rotor rotates to the regeneration zone, and the high-temperature moisture is discharged from the moisture exhaust holes; after that, the rotor rotates to the cooling area to shrink the honeycomb holes to regenerate moisture absorption capacity, and then rotates to the dehumidification area again for cyclic operation.
Scope of application:
* The honeycomb rotor dehumidifier is mainly used to process engineering plastics with strong moisture absorption for efficient dehumidification;
* The average dew point can reach -50℃ under ideal conditions.
Specification table:
Model | Dry air flow rate (m3/hr) | Drying fan power (kw) | Regenerative fan power (kw) | Regenerative electric heater power (kw) | Diameter of inlet and outlet (inch) | Cooling water inlet and outlet pipe diameter (inch) | Cooling water temperature (℃) | Water pressure (kgf) | Voltage | |||||||||
LSD-400H | 400 | 4 | 0.7 | 8 | 3" | 0.75" | 15-35 | 3-4 | 3¢, 400V, 50Hz | |||||||||
LSD-700H | 900 | 5.5 | 1.6 | 12 | 4" | 1" | 15-35 | 3-4 | 3¢, 400V, 50Hz | |||||||||
LSD-1000H | 1200 | 7.5 | 3 | 15 | 5" | 1" | 15-35 | 3-4 | 3¢, 400V, 50Hz | |||||||||
LSD-2000H | 2000 | 11 | 4 | 24 | 6" | 1.5" | 15-35 | 3-4 | 3¢, 400V, 50Hz | |||||||||
LSD-3000H | 2000 | 7.5*2 | 3*2 | 24*2 | 8" | 2" | 15-35 | 3-4 | 3¢, 400V, 50Hz | |||||||||
LSD-4000H | 2000 | 11*2 | 3*2 | 24*2 | 8" | 2" | 15-35 | 3-4 | 3¢, 400V, 50Hz | |||||||||
Note: The above models adopt Siemens PLC control and a touch screen display; Nichias honeycomb rotor from Japan; the dew point can reach -40 to -50℃; standard random dew point display for real-time control of dehumidification performance. |

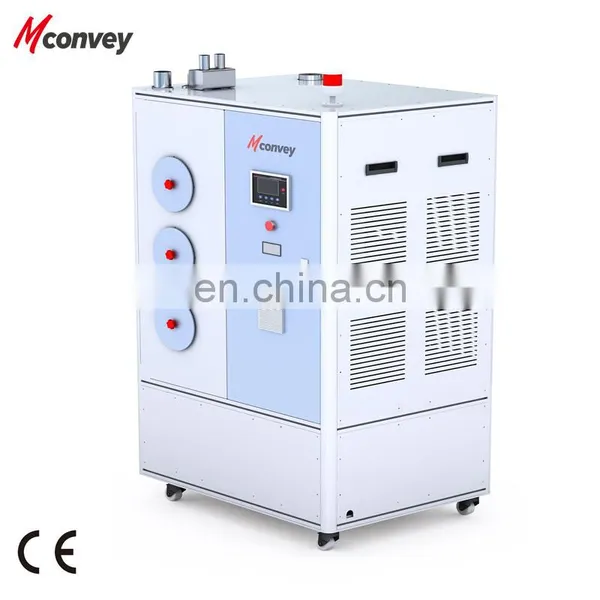

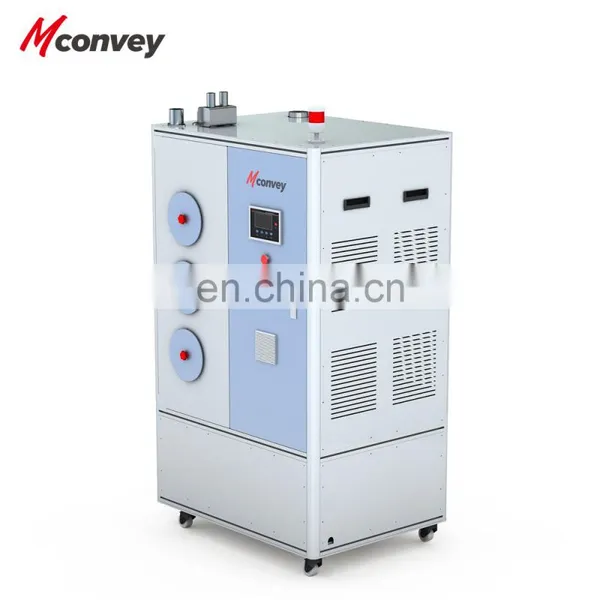

Product Display
