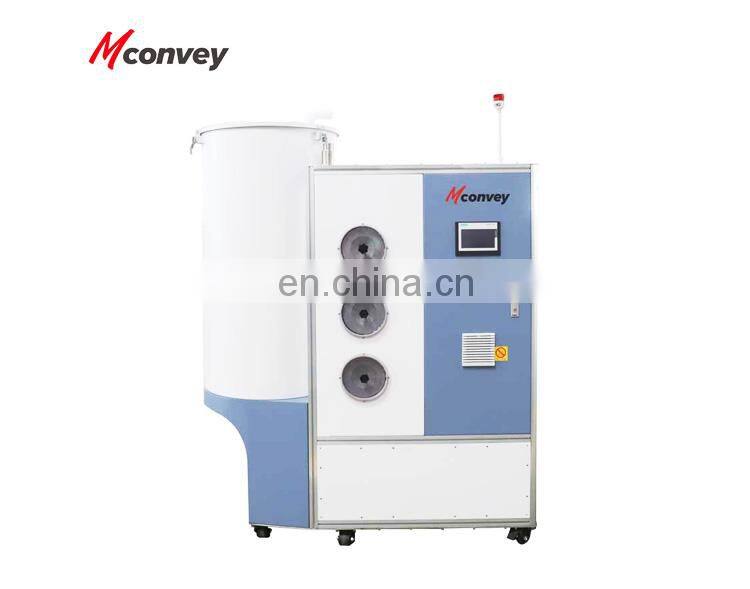

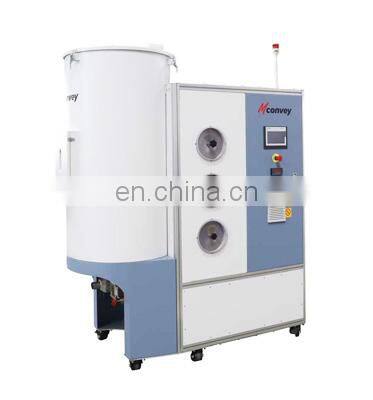

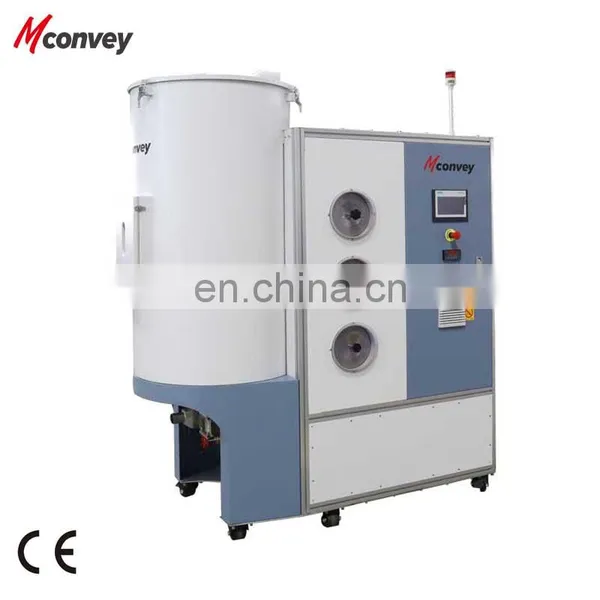

High-end Technology Manufacturing Industrial Dehumidifier Dryer Plastic Machine

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Features:

* Integrating two functions of dehumidification and drying;

* Using a full molecular sieve honeycomb rotor, which can provide stable dry air with a low dew point;

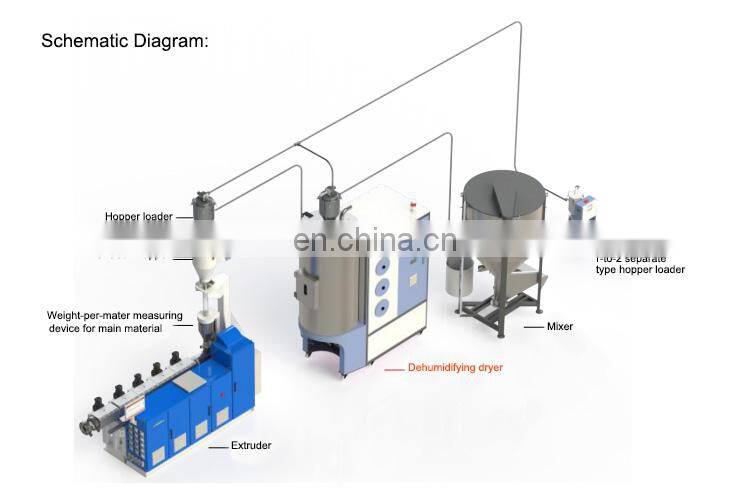

* The feeding system is equipped with a cut-off material distribution station to ensure that there is no residual material in the material pipe;

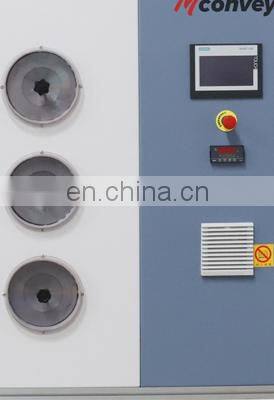

* PLC control, and touch screen display for precise control of drying temperature.

Working principle:

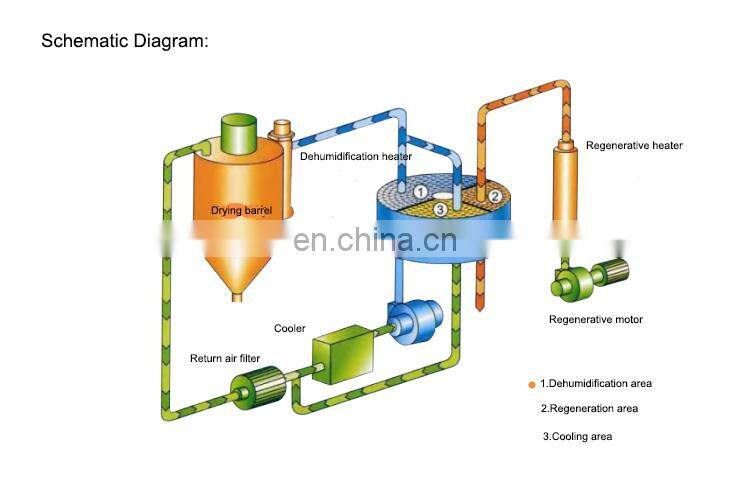

The hot and humid air returned from the drying bucket is cooled and blown into the honeycomb rotor. The moisture in the air is absorbed by the rotor and then desorbed by the regenerated heated air. The two air flows act on the rotor at the same time. As the rotor rotates, the moisture in the air is continuously absorbed and desorbed for discharge, and finally air with a stable low dew point is formed, which is heated to the drying temperature required by the plastic material and then blown into the drying bucket to form a closed circulation loop.

Specification table:

Model	Dry air flow rate (m3/hr)	Drying bucket capacity (L)	Drying fan (kw)	Regenerative fan (kw)	Regenerative electric heater (kw)	Electric drying heater (kw)	Conveying tube (inch )
LSDD-400H/600L	400	600	4	0.7	8	18	3"
LSDD-700H/900L	700	900	5.5	1.6	12	18	4"
LSDD-700H/1200	700	1200	5.5	1.6	12	24	4"
LSDD-1000H/2000L	1000	2000	7.5	3	15	36	5"
LSDD-2000H/3000L	2000	3000	11	4	24	48	6"
LSDD-2000H/4000L	2000	4000	11	4	24	60	6"
LSDD-3000H/6000L	300	6000	7.5*2	3*2	24*2	96	8"
LSDD-4000H/6000L	4000	6000	11*2	3*2	24*2	96	8"
LSDD-4000H/8000L	4000	8000	11*2	3*2	24*2	120	8"

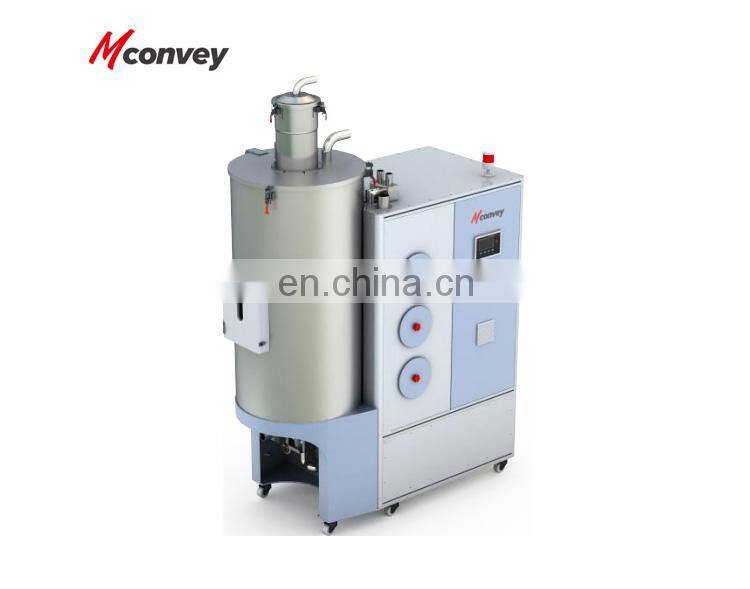

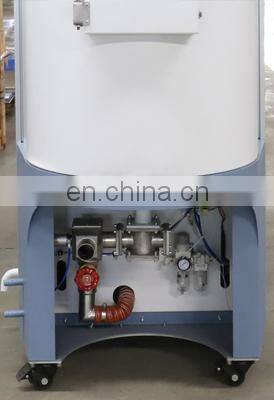

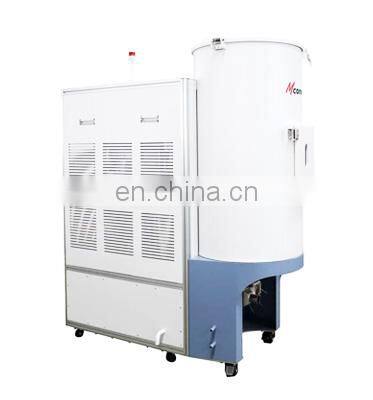

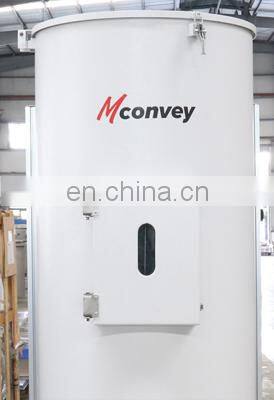

Product Display
