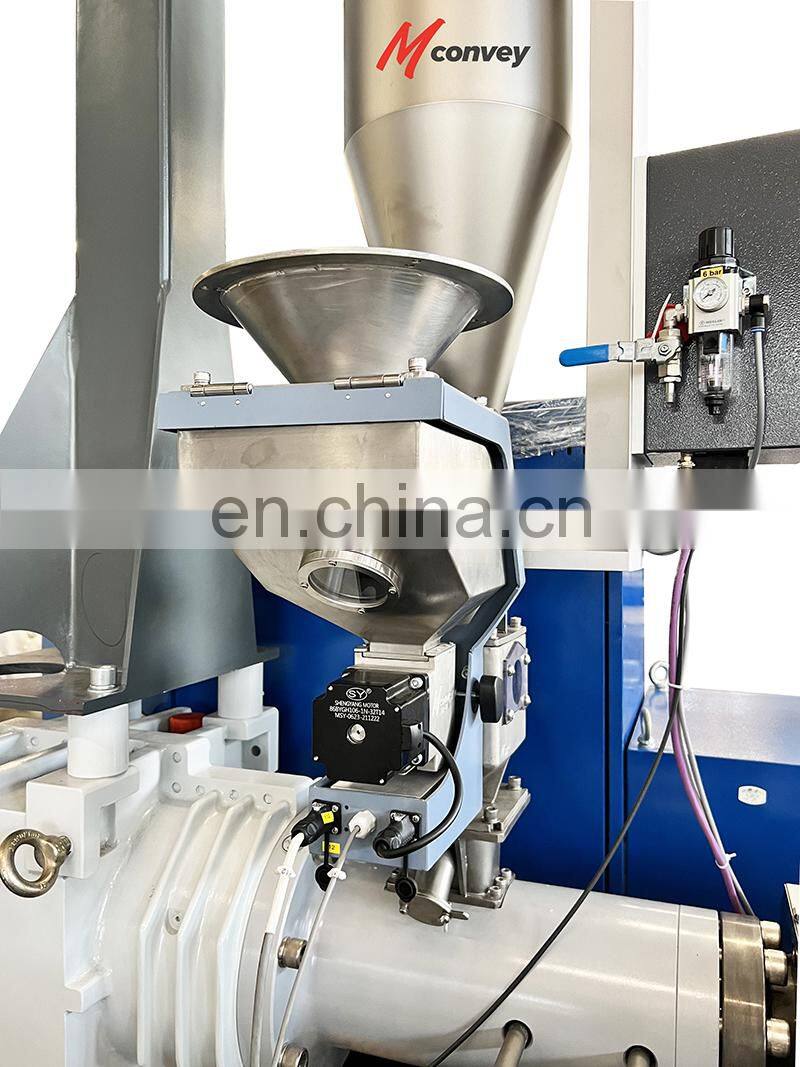

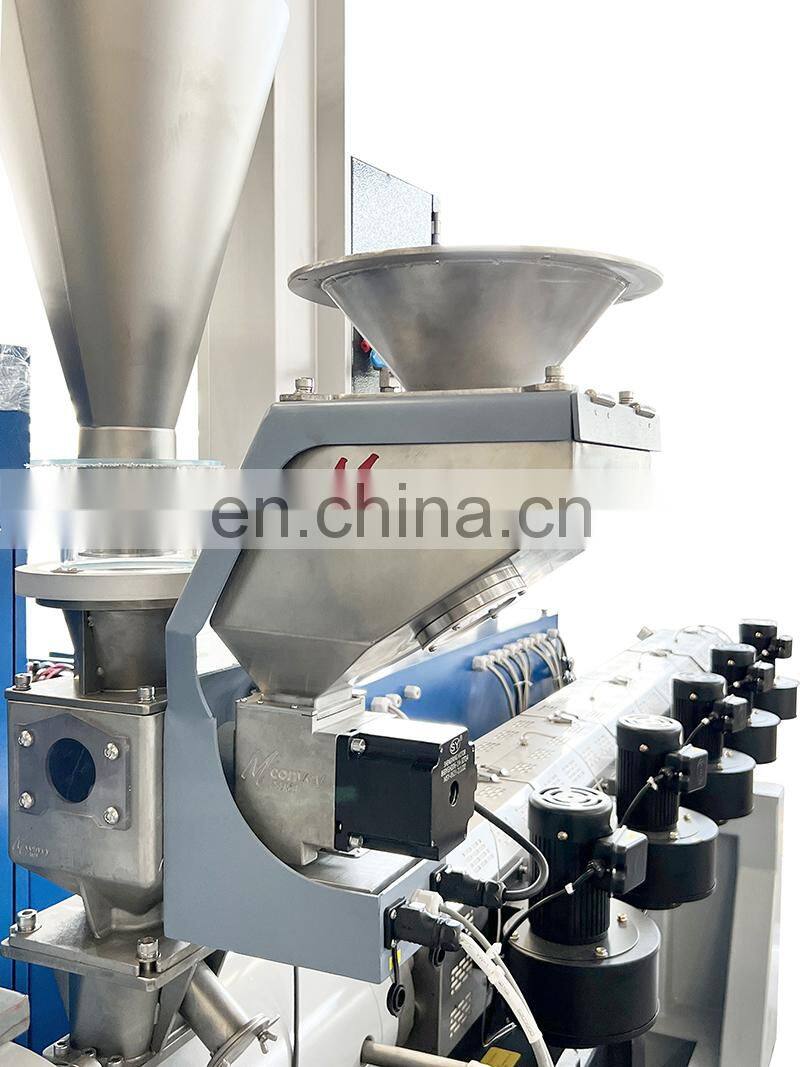

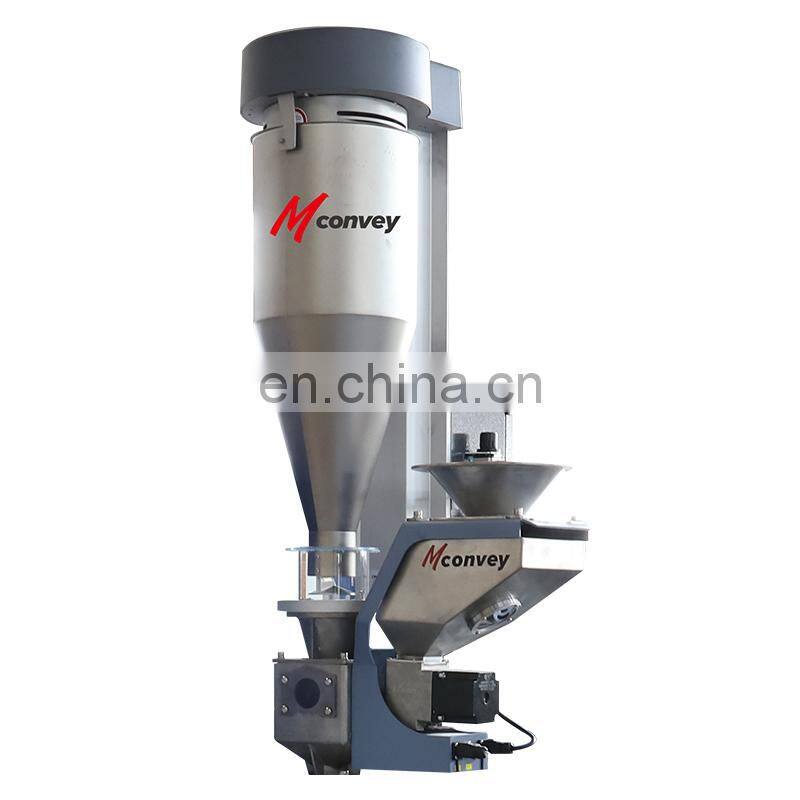

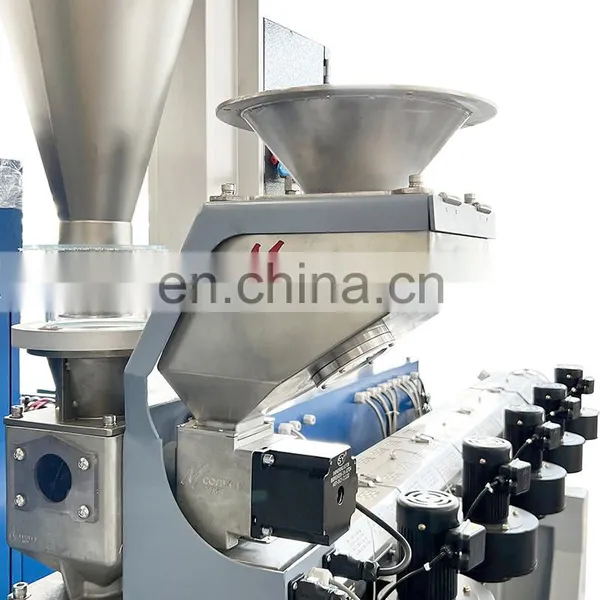

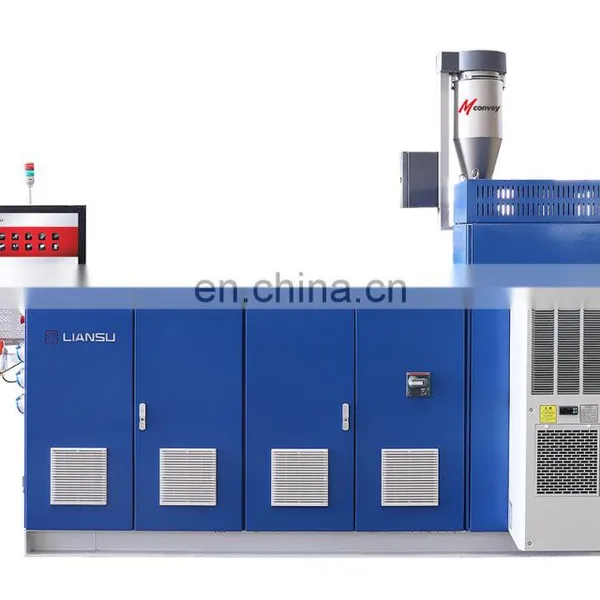

New design High quality Asymmetrical Hopper Single Screw Loss In Weight Feeder

Name: New design High quality Asymmetrical Hopper Single Screw Loss In Weight Feeder
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Features:

● Control sysetm and screw freqency coversion drive with same platform software ,it is convenient to control integration with extruder； ● Discharge valve adopts unique gear structure to prevent material blocking, pateneted product； ● All spare parts of the whole series product can be in common use ； ● With two control modes can freely swcith: ‘extrusion output mode ' and ‘ meter weight control mode ； ● With the alarm histroy function； ● With Ethernet communication function, it can realize networking with the molding machine and centralized monitoring function.

Working principle:

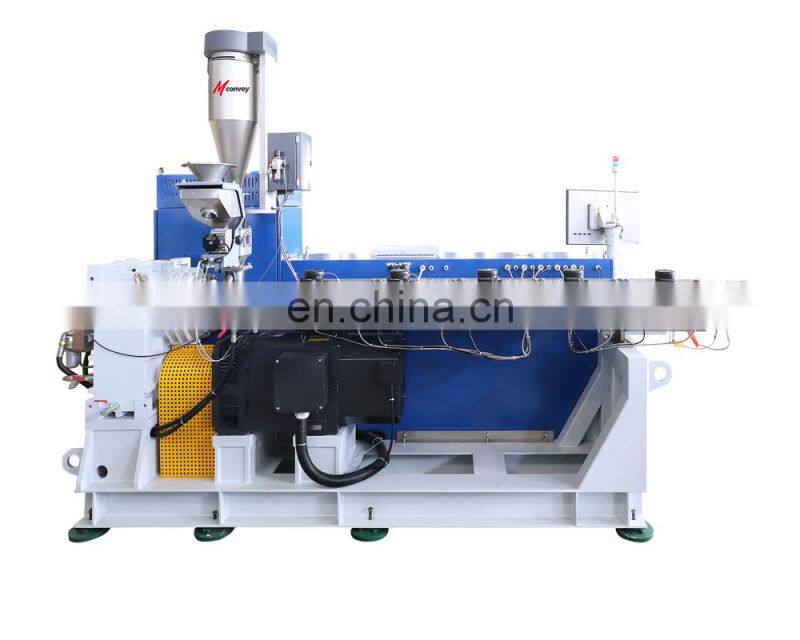

Loss in weight Feeder (granules) is generally installed on the top of the plastic extruder to realize the closed loop control of the extruder output(kg/h)：via real-time collect the weighing hopper raw material comsuption which is in unit time of extruder(actual extrusion quantity kg/h) ,and real-time comparison with the extruder setting (target extruder), if there is difference between these, the software of loss in weight feeder will fynamincally adjust the speed of the extruder screw to achieve the exact consistency between the actual and the target extrusion amount； Furthermore, the loss in weight feeder can also access the ‘line speed m/min' signal of the haul-off unit which at the end of the extruder production line.Through the internal calculations of the softward, that is:(extrusion quantity kg/h）/(linear speed m/min)=pipe weight kg/meter (linear speed can be converted from ‘meter/min' to ‘meter/h', we can get the ‘meter weight' control which is we required； Control system standard equipped with standrad ethernet interfaces which is facilitate data integration with third-party devices.

Specification table:

Model	Output (kg/hr)	Load cell（kg)	Storage bucket (L)	hopper capacity（L）	Plastic granule (mm)	power supply	Voltage
LSGC-WSZ5	5	20	6	6	3-5	1Φ220V 50/60Hz	1¢, 220V, 50Hz
LSGC- WSZ60	60	100	6	18	3-5	1Φ220V 50/60Hz	1¢, 220V, 50Hz
LSGC-WSZ120	120	100	6	50	3-5	1Φ220V 50/60Hz	1¢, 220V, 50Hz
LSGC-WSZ300	300	300		100		1Φ220V 50/60Hz
LSGC-WSZ500	500	300		150		1Φ220V 50/60Hz

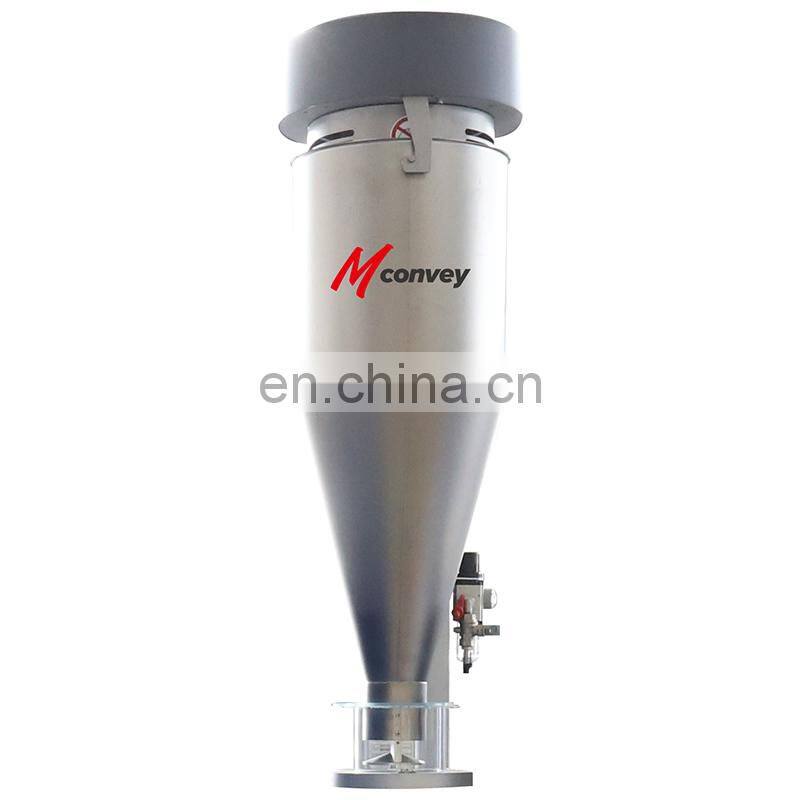

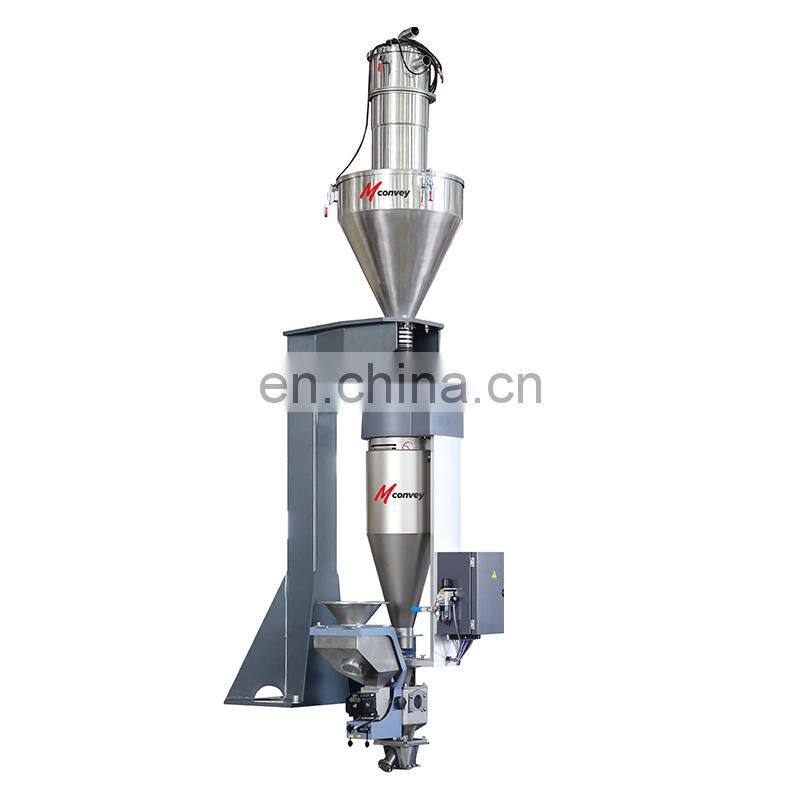

Note: A main raw material hopper is optional for the above models; hopper loader (6U) + adapter flange; PLC control, touch screendisplay; Siemens load cell.
