ITO patterning

Custom designed ITO (Ag, Au or other conductive material) coated on glass or PET film

Medical sensor of Au patterning on PET substrate

The process is developed five years ago for touch panel industry, which now is successfully replaced the wet etching process. And with long time developing and higher requirements from mobile phone industry, this process is completed and used in many other applications, mainly for developing or manufacturing sensor or circuits for OLED, medical, solar cell, consumer electronics, and many R&D cases.

We have done a lot of cases with different materials coated on different substrates, the typical one is ITO patterning, With the different absorption rates of laser, we could remove some material and no hurt to the substrate. The coating thickness usually less than 10um, and most of them is less than 1um.

The strength of this process is that it could etch 20/20um patterns which makes it possible to design the whole pattern very small and tight, and easy CAD input helps the designers have a fast prototyping and demonstration.

                                                     Transparant ITO glass with customized patterns

Resistance: 10~ 100 Ohm or any specially required

Transparent rate (ITO): >80%

Conductive material:  ITO, CNB, CNT, nano-Ag, Graphene, and all kinds of metal coating, etc.

Min etching line width:  20um

Custom circuits area: 600*600mm

ITO single layer and double layer etching, other coating film etching, such as Ag, Al, Si removing

Precision: +/-10um

Alignment: 5um

Any patterns of CAD output

Application: touch panel, OLED, solar cell, electronics, medical, etc

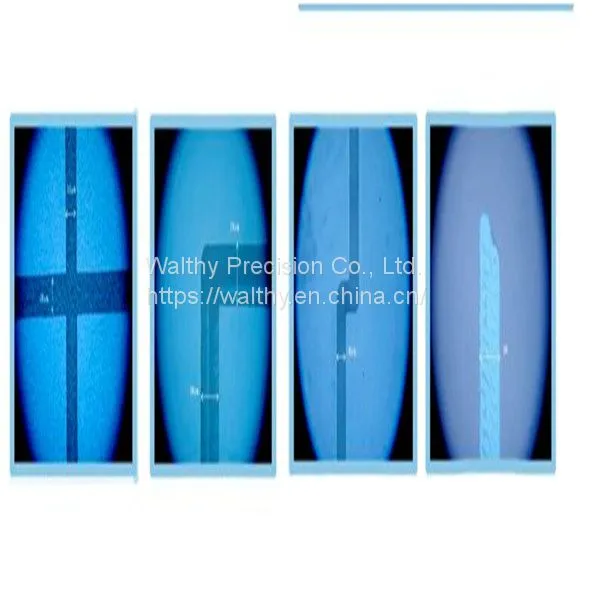

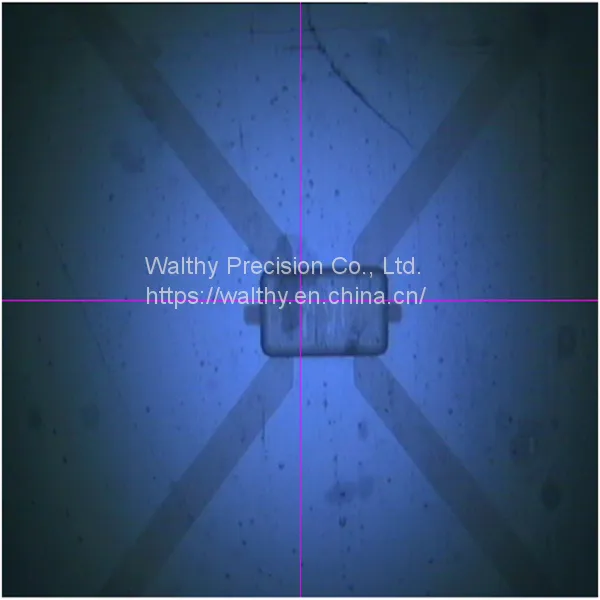

 ITO patterning under microscope
