CCTV Camera Accessory New Passive 8MP AHD CVI TVI CVBS HD Video Balun
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1992
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Arrival Single Channel HD 8MP Split Joint Passive Video Balun for HD-CVI/TVI/AHD/CVBS TransceiverNegotiableMOQ: 1 -
CCTV Accessories 1080P 3MP 4MP 5MP Passive HD Video Balum For AHD /TVI /HD-CVINegotiableMOQ: 1
-
Best Price HD CVI CCTV Camera Transceiver Passive Video BalunNegotiableMOQ: 1
-
CCTV Accessories Passive HD Video Balum For AHD /CVI /TVINegotiableMOQ: 1
-
CCTV Accessories AHD HDCVI HDTVI Transceiver Video BalunNegotiableMOQ: 1
Products Description

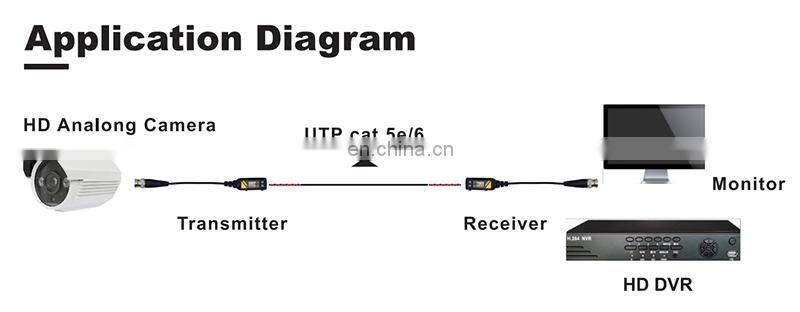

• The CF-201 video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video signal via cost-effective Unshielded Twisted Paired (DTP) cable. The CF-201 is compatible with all HD-TVI, HD-CVI, AHD and CVBS analog cameras.
• The CF-201 has a mini-coax pigtail lead which allows quick mounting onto fixed cameras, allows in-camera mounting in most dome cameras and allows flexible connection with DVR. Reliable Screw terminals block connection,the CF-201 eliminates costly and bulky coaxial cable.

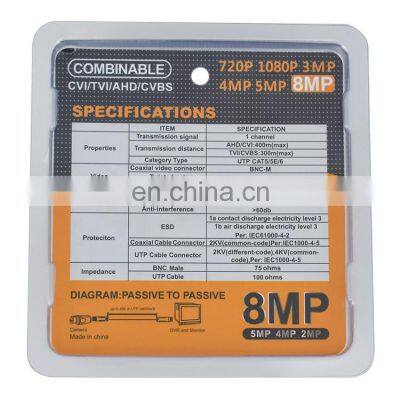

Properties | Transmission signal | 1 channel |
Transmission distance | AHD/CVI:400m(max), TVI/CVBS:300m(max) | |
Category Type | UTP CAT5/5E/6 | |
Video transmission Properties and Port | Coaxial video connector | BNC-Male |
Twisted-pair Video Connector | Push-terminal | |
Compatible Format | CVI/ TVI/ AHD/ CVBS | |
Resolution | 720P/ 960P/ 1080P/ 3MP/ 4MP/ 5MP/ 8MP | |
Anti-interference | >60db | |
Impedance | BNC Male | 75 Ohms |
UTP Cable | 100 Ohms |
Packaging
Package Type | Standard export packing |
Single package size | 15*7*5 cm |
Single gross weight | 0.075 kg |
Qty/Ctn | 250 pairs |
Carton size | 58*48*25 cm |
Gross weight | 14.6 kg |
Similar Products
Trade Show
Certifications
FAQ
Q1:Are you a trading company or manufacture?
A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last.
Q2:What is your delivery time?
A2:Normally,our delivery time is 15-20days after get your deposit. .
Q3:What is your MOQ?
A3:Usally,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually.
Q4:What is your general payment term?
A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery.
Q5: Can you produce the specfic cable strictly according to clients' requirement?
A5: Yes, we have professional technical team, so we can do ODM for customers.
Q6: Where you are located?
A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou.
If you intersting in our cables, pls send the enquiry now!!!
Free sample will be deliveried to your address soon!!
A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last.
Q2:What is your delivery time?
A2:Normally,our delivery time is 15-20days after get your deposit. .
Q3:What is your MOQ?
A3:Usally,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually.
Q4:What is your general payment term?
A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery.
Q5: Can you produce the specfic cable strictly according to clients' requirement?
A5: Yes, we have professional technical team, so we can do ODM for customers.
Q6: Where you are located?
A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou.
If you intersting in our cables, pls send the enquiry now!!!
Free sample will be deliveried to your address soon!!
