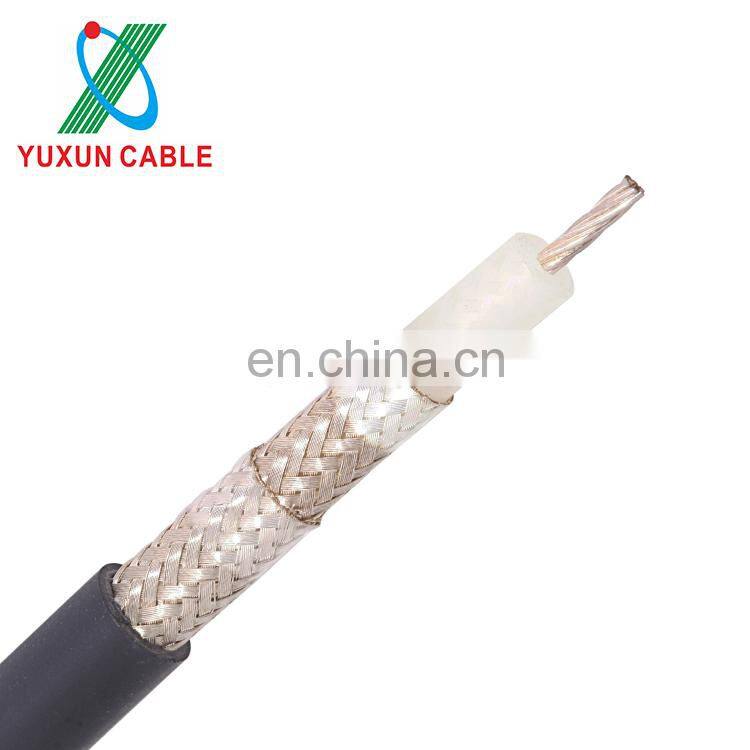

50 Ohm Double Shield Coax Cable RG214 Coaxial Cable
|

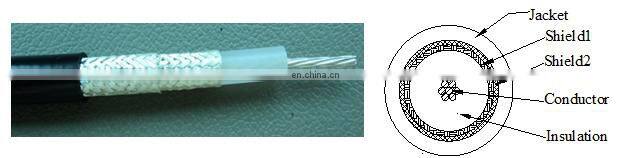

YUXUN RG214 Double Shield 50 Ohm Coaxial Cable |
||
|
|
||
|
SPECIFICATIONS |
||
|
Part No. |
RG214 |
|
|

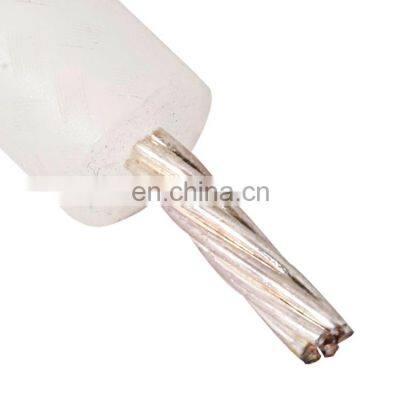

Inner Conductor |
Silvered Copper |
|
|
Diameter |
7/0.75±0.008mm |
|
|
Insulation |
Solid PE |
|
|
Diameter |
7.24± 0.2mm |
|
|

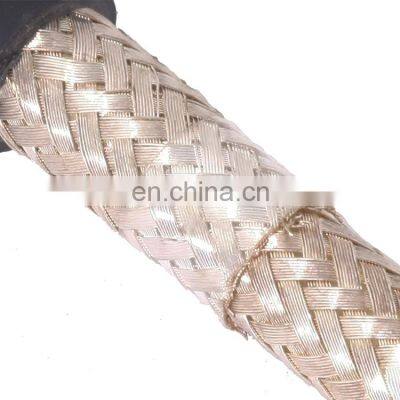

Shield 1 (Silvered Copper) |
Diameter |
0.16mm |
|
No of Wire Ends |
7cores/Spindle |
|
|
No of Spindles |
24 |
|
|
Pitch |
30mm |
|
|
Shield 2 (Silvered Copper) |
Diameter |
0.16mm |
|
No of Wire Ends |
7cores/Spindle |
|
|
No of Spindles |
24 |
|
|
Pitch |
30mm |
|
|
Jacket |
Diameter |
10.80±0.25mm |
|
Color |
Black |
|
|
ELECTRICAL CHARACTERISTICS |
||
|
Impedance (Ω) |
50 Ohm±2 |
|
|
Nominal Capacity (PF/m) |
100 |
|
|
Velocity Ratio (v/c) |
1.01 |
|
|
Loop Resistance (Ω/km) |
<9.5 |
|
|
Test Voltage (KV DC) |
2 |
|
|
ATTENUATION |
50MHz |
5.25 |
|
100MHz |
7.00 |
|
|
200MHz |
10.30 |
|
|
500MHz |
16.80 |
|
|
800MHz |
22.60 |
|
|
1000MHz |
25.50 |
|
|
1200MHz |
28.24 |
|
|
1500MHz |
31.87 |
|
|
1900MHz |
36.17 |
|
|
Mechanical CHARACTERISTICS |
||
|
Weight (kg/km) |
211 |
|
|
Min. Bending Rad (mm) |
120 |
|
|
Tempreature Rating (℃) |
-20….+70 |
|
Q1:Are you a trading company or manufacture?
A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last.
Q2:What is your delivery time?
A2:Normally,our delivery time is 15-20days after get your deposit. .
Q3:What is your MOQ?
A3:Usally,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually.
Q4:What is your general payment term?
A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery.
Q5: Can you produce the specfic cable strictly according to clients' requirement?
A5: Yes, we have professional technical team, so we can do ODM for customers.
Q6: Where you are located?
A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou.
If you intersting in our cables, pls send the enquiry now!!!
Free sample will be deliveried to your address soon!!
