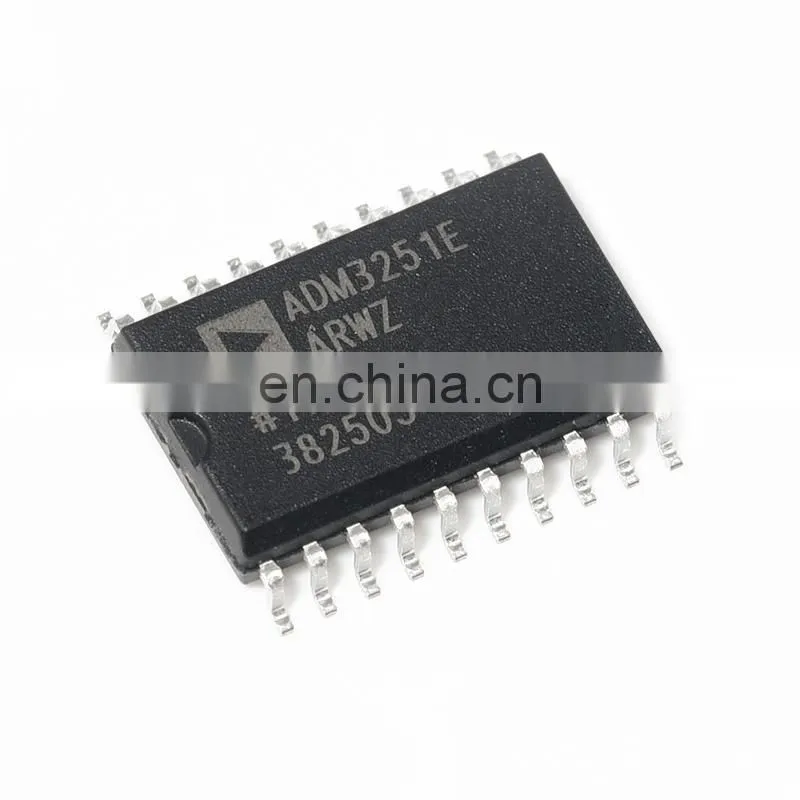

ADM3251EARWZ-REEL SOIC-20 Digital Isolators Electronic Components Original New IC Chips ADM3251EARWZ
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IC BT Chip CSR1010A05-IQQM-R SM 32QFNNegotiableMOQ: 1 -
NRF24L01+PA+LNA On-board Ceramic Antenna Cost-effective Small Size 905 / CC1101NegotiableMOQ: 1
-
Mini PCI-E To M.2 NGFF Key B SIM Card Lot Sierra Wireless EM7565 AdapterNegotiableMOQ: 1
-
Stm32 Electronic Parts Components STM32F105VCT6 Development BoardNegotiableMOQ: 1
-
Stm32 Gps Development Board STM32F030F4P6 Electronic Parts ComponentsNegotiableMOQ: 1
Description
Features and Benefits
● 2.5 kV fully isolated (power and data) RS-232 transceiver
● isoPower integrated, isolated dc-to-dc converter
● 460 kbps data rate
● 1 Tx and 1 Rx
● Meets EIA/TIA-232E specifications
● ESD protection on RIN and TOUT pins
±8 kV: contact discharge
±15 kV: air gap discharge
● 0.1 μF charge pump capacitors
● High common-mode transient immunity: >25 kV/μs
● Safety and regulatory approvals
UL recognition
2500 V rms for 1 minute per UL 1577
VDE Certificate of Conformity (pending)
DIN EN 60747-5-2 (VDE 0884 Teil 2): 2003-01
CSA Component Acceptance Notice #5A (pending)
● Operating temperature range: −40°C to +85°C
● Wide body, 20-lead SOIC package
● isoPower integrated, isolated dc-to-dc converter
● 460 kbps data rate
● 1 Tx and 1 Rx
● Meets EIA/TIA-232E specifications
● ESD protection on RIN and TOUT pins
±8 kV: contact discharge
±15 kV: air gap discharge
● 0.1 μF charge pump capacitors
● High common-mode transient immunity: >25 kV/μs
● Safety and regulatory approvals
UL recognition
2500 V rms for 1 minute per UL 1577
VDE Certificate of Conformity (pending)
DIN EN 60747-5-2 (VDE 0884 Teil 2): 2003-01
CSA Component Acceptance Notice #5A (pending)
● Operating temperature range: −40°C to +85°C
● Wide body, 20-lead SOIC package
Product Details
The ADM3251E is a high speed, 2.5 kV fully isolated, single- channel RS-232/V.28 transceiver device that operates from a single 5 V power supply. Due to the high ESD protection on the RIN and TOUT pins, the device is ideally suited for operation in electrically harsh environments or where RS-232 cables are frequently being plugged and unplugged.
The ADM3251E incorporates dual-channel digital isolators with isoPower™ integrated, isolated power. There is no requirement to use a separate isolated dc-to-dc converter. Chip-scale transformer iCoupler® technology from Analog Devices, Inc., is used both for the isolation of the logic signals as well as for the inte- grated dc-to-dc converter. The result is a total isolation solution.
The ADM3251E contains isoPower technology that uses high frequency switching elements to transfer power through thetransformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards. Refer to Application Note AN-0971, Control of Radiated Emissions with isoPower Devices, for details on board layout considerations. The ADM3251E conforms to the EIA/TIA-232E and ITU-T V. 28 specifications and operates at data rates up to 460 kbps. Four external 0.1 μF charge pump capacitors are used for the voltage doubler/inverter, permitting operation from a single 5 V supply.
The ADM3251E is available in a 20-lead, wide body SOIC package and is specified over the −40°C to +85°C temperature range.
Applications
● High noise data communications
● Industrial communications
● General-purpose RS-232 data links
● Industrial/telecommunications diagnostic ports
● Medical equipment
● High noise data communications
● Industrial communications
● General-purpose RS-232 data links
● Industrial/telecommunications diagnostic ports
● Medical equipment
