Description
4G+WIFI OBD Terminal GPS Tracker, Model No. HR-M401
Passenger Vehicle, Commercial Vehicle, Common Series
1. Products Introduction
HR-M401 is 4G+WIFI version OBD terminal Integrated advanced Netcom Qualcomm data communications module, high-precision GPS module, WIFI module, high-performance three-axis gravity sensor and vehicle ECU computer communication module. The vehicle running status, vehicle condition data, vehicle fuel consumption data and driver control data can be uploaded to the vehicle networking management cloud platform through the wireless module, and the vehicle management platform can be realized through terminal data, statistical vehicle trajectory, driving behavior, fuel consumption statistics, anti-theft tracking and the like Remote management of the fleet, reducing vehicle fuel consumption by regulating driving behavior.

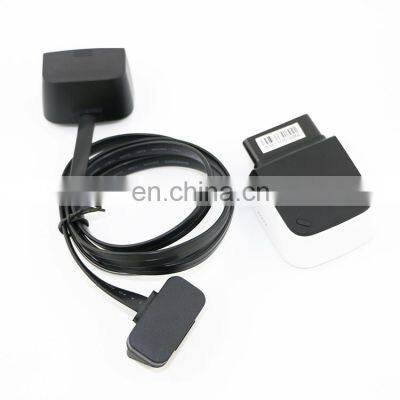

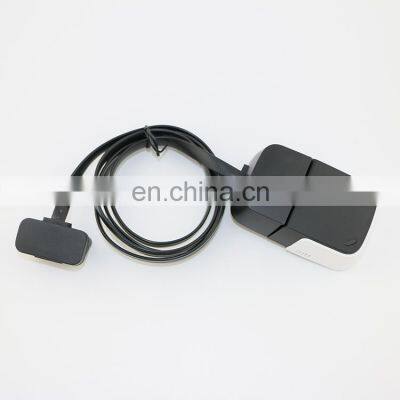

Car WiFi hotspot can be created by 4G signal to provide more people to share and experience the smooth network.Optional extension cord will be placed on top of the terminal instrument, beautiful appearance.
1.2 4G+WIFI Hot spots
4G network, data upload speed has been greatly improved.
Mobile WIFI hot spots, to meet the multi-people sharing network.
1.3 Network communication protocol
TCP Commands
2.1 OBD Protocol
ISO-15765 500K ST
ISO-15765 500K EX
ISO-15765 250K ST
ISO-15765 250K EX
ISO-14230 FAST
ISO-14230 SLOW
ISO-9141-2
SAE-J1939
ISO-15765 500K EX
ISO-15765 250K ST
ISO-15765 250K EX
ISO-14230 FAST
ISO-14230 SLOW
ISO-9141-2
SAE-J1939
2.2 Indicator light
① Green – GPS
② Blue–Communication
③ Orange – GPRS
④ Yellow– Wifi
Performance parameters |
||
physical dimension |
70*55*25mm (L*W*H) |
|
Operating Voltage |
9V-36V DC |
|
Average working current |
130mA@12V |
|
Sleep working current |
3mA@12V |
|
Operating temperature |
-30℃~+70℃ |
|
storage temperature |
-40℃~+85℃ |
|
positioning accuracy |
<10m |
|
GPS frequency range |
1575.42MHZ |
|
Frequency Range |
FDD LTE: B1/B3 |
|
TDD LTE: B38/B39/B40/B41 |
||
TDSCDMA: B34/B39 |
||
WCDMA: B1 |
||
CDMA2000 1x/EVDO: BC0 |
||
GSM: 900/1800MHz |
||
WIFI frequency range |
2400-2485M |
|
OBD type |
SUPPORT OBDII/EOBD |
|
4 ANTENNA |
BUILT IN |
|
GPS ANTENNA |
BUILT IN |
|
WIFI ANTENNA |
BUILT IN |
|
GPS receiver |
||
Cold start time (average) |
<30 seconds |
|
Hot start time (average) |
<5 seconds |
|
positioning accuracy |
<10 meters |
|
Receiver type |
L1 frequency, C/A Code 50 channel |
|
Receiving sensitivity |
<-161dB, Typical value |
|
Speed accuracy |
<0.1 m/s |
|
Network communication receiver |
||
Communication module |
EC20-CE |
|
Class 3 (23dBm±2dB) for LTE FDD |
||
Class 3 (23dBm±2dB) for LTE TDD |
||
Class 3 (24dBm +1/-3dB) for TD-SCDMA |
||
Class 3 (24dBm +1/-3dB) for UMTS |
||
Class E2 (27dBm ±3dB) for EDGE 850/900MHz |
||
Class E2 (26dBm +3/-4dB) for EDGE 1800/1900MHz |
||
Class 4 (33dBm ±2dB) for GSM 850/900MHz |
||
Class 1 (30dBm ±2dB) for GSM 1800/1900MHz |
||
Receiving sensitivity |
LTE B1: -97dBm(20M) |
|
LTE B3: -96dBm(20M) |
||
LTE B5: -99dBm(10M) |
||
LTE B7: -97dBm(20M) |
||
LTE B8: -98dBm(10M) |
||
LTE B20: -96dBm(20M) |
||
UMTS B1: -110dBm |
||
UMTS B5: -112dBm |
||
UMTS B8: -111dBm |
||
GSM 850: -111dBm |
||
GSM 900: -110dBm |
||
GSM 1800: -109dBm |
||
GSM 1900: -109dBm |
||
