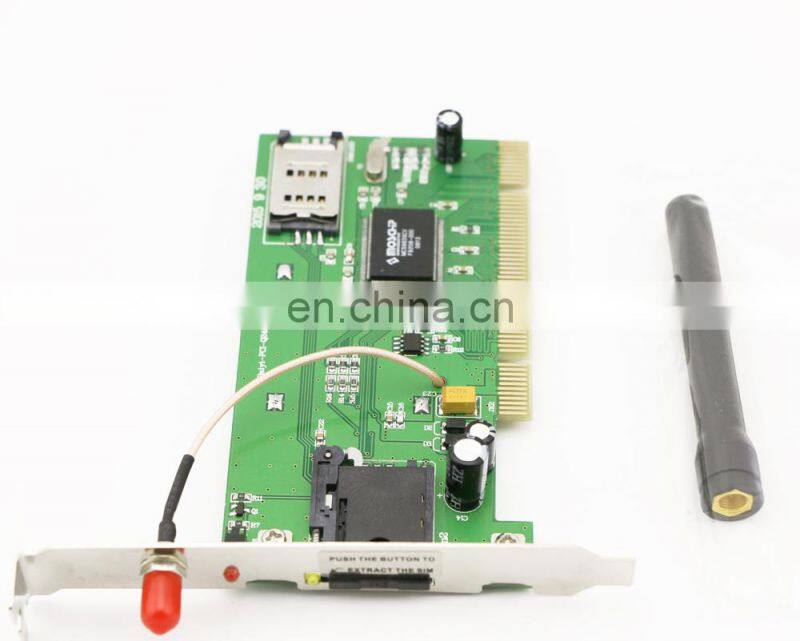

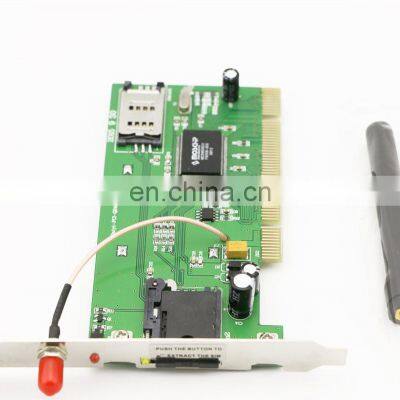

WISMO QUIK Q2406B Modem
Overview
This document defines and specifies the WISMO QUIK Q24x6 Series, available
under two GSM/GPRS Cl10 bi band versions:
• Q2406A: EGSM/GPRS 900/1800 MHz version with 16 Mb of Flash
memory and 2 Mb of SRAM (16/2)
• Q2406B: EGSM/GPRS 900/1800 MHz version with 32 Mb of Flash
memory and 4 Mb of SRAM (32/4)
• Q2406D: EGSM/GPRS 900/1800 MHz version with 64 Mb of Flash
memory and 8 Mb of SRAM (64/8). This configuration will be available
for handset application and vertical application where UART2 is not
used.
• Q2406E: EGSM/GPRS 900/1800 MHz version with 64 Mb of Flash
memory and 4 Mb of SRAM (64/4). This configuration will be available
for handset application and vertical application where UART2 is not
used.
• Q2426A: EGSM/GPRS 850/1900 MHz version with 16 Mb of Flash
memory and 2 Mb of SRAM (16/2)
• Q2426B: EGSM/GPRS 850/1900 MHz version with 32 Mb of Flash
memory and 4 Mb of SRAM (32/4)
• Q2426D: EGSM/GPRS 850/1900 MHz version with 64 Mb of Flash
memory and 8 Mb of SRAM (64/8). This configuration will be available
for handset application and vertical application where UART2 is not
used.
• Q2426E: EGSM/GPRS 850/1900 MHz version with 64 Mb of Flash
memory and 4 Mb of SRAM (64/4). This configuration will be available
for handset application and vertical application where UART2 is not
used.

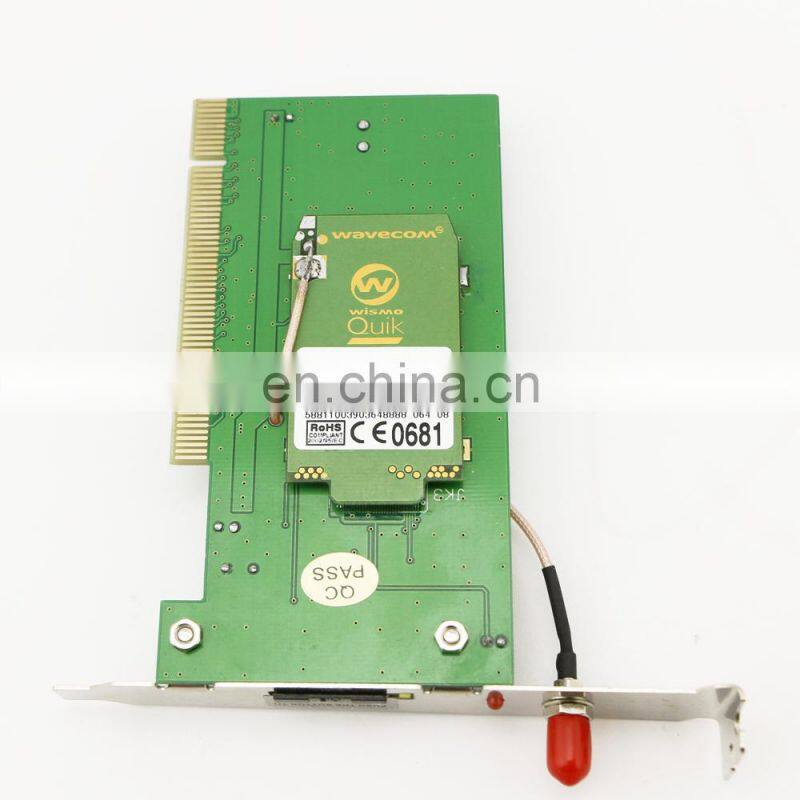

WISMO Quik Q24x6 is a self-contained E-GSM/GPRS 900/1800 or 850/1900 bi-
band module including the following features :
• 58.4 x 32.2 x 3.9 mm
• 2 Watts EGSM 900/GSM 850 radio section running under 3.6 Volts
• 1 Watt GSM1800/1900 radio section running under 3.6 Volts
• Digital section running under 2.8 Volts
• 3V SIM interface
• Real Time Clock with calendar
• Battery charger
• Echo Cancellation + noise reduction
• Full GSM or GSM/GPRS software stack
• Hardware GPRS class 10 capable
• Complete shielding
• Complete interfacing :
o Power supply
o Serial link
o Audio
o SIM card
o Keyboard
o LCD (not available with AT commands)
WISMO Quik Q24x6 Series has two external connections :
• RF connection pads (to the antenna)
• General Purpose Connector (GPC) to Digital, Keyboard, Audio and Supply
