Goldplated Right Angle Cable Assembly Connector Sma
- T/T Credit Card
You May Like
-
SMA-J-1.5 Male Connector Gold With Crimp GPS Antenna Connector
-
MMCX Straight PCB Plug for Receptacles, MMCX JEF Connector
-
Type N Connector, Waterproof NKY-1.5-24 N Connector
-
SMA-KWE Right Angle 90 Degree SMA Connector
-
High Quality MMCXKEF MMCX Connector
-
Factory Price N Type Connector, RF Coaxial Cable Accessories NKY-1.5 N Connector
Product Description

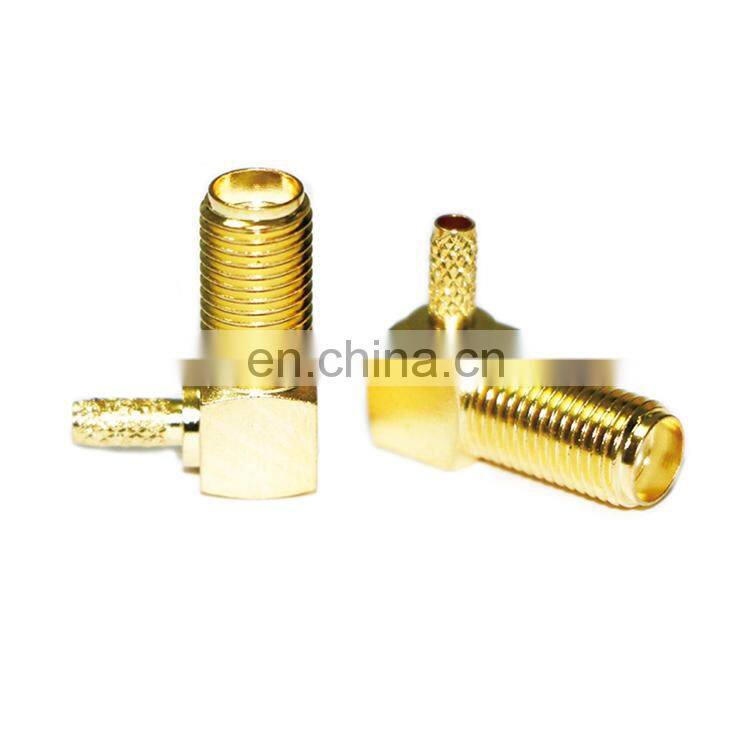

Goldplated right angle cable assembly connector sma
connector sma
Specifications1.Body:Brass/Gold Plated
2.Insulator: PTFE
3.Impedance:50 ohm
4.Frequency Range:0-18G

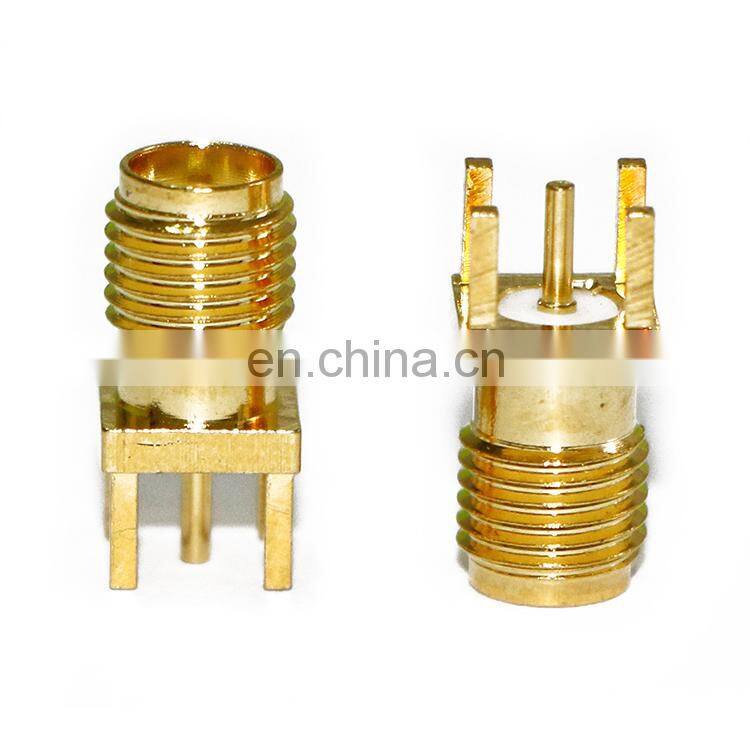

Board to board SMA connector
we can supply all kinds of RF coaxial connectors liking SMA , SMB, MMCX, MCX, BNC, TNC, UHF, HFL, IPEX and so on.
we are of factory price .we welcome OEM /ODM clients.
Model | FT-Connector-117P | |
Major Technical Characteristics | ||
Type | SMA-KWE-117P | |
Impedance | 50Ω | |
Frequency Range | DC~12.4GHz(Semi-Rigid Cable DC-18GHz) | |
Center conductor retention force | ≥0.28 N | |
Insertion Loss | ≤0.15dB/6GHz | |
Voltage Standing Wave Ratio | Straight Flexible Cable ≤1.10+0.02f Semi-Rigid Cable≤1.07+0.018f | |
Right angle Flexible Cable ≤1.20+0.03f Semi-Rigid Cable≤1.17+0.02f | ||
Durability(mating) | ≥500(cycles) | |
Cable | PCB | |
Material & Plating | ||
Body | Brass | Gold plated |
Pin contact | Brass | Gold plated |
Socket contact | Beryllium-copper Customized) | Gold plated |
Resilient contact | Beryllium-copper | Gold plated |
Insulator | PTFE | |
Crimp ferrule | Copper alloy | Nickel or gold plated |
O-ring sealing | 6146 silicone rubber | |
RP connector can not match regular connector , RP means Reverse polarity.
- SMA type are with 4 kinds type usually, for example :
- SMA male is inside screw with plug center,
- SMA female is outside screw with hole center,
- RP SMA male is inside screw with hole center,
- RP SMA female is outside screw with plug center.



Q1:Who are you?
A1: Hurryup Technology was established in 2013 with 8 year’s Gold Supplier membership. In addition, has granted our shop here as conducted by TÜV SÜD in Germany. Only few shops got the credit as us.
Q2: What products can you offer?
A2: We manufacture below products:
- GPS GNSS receiver G-Mouse,
- GPS GNSS, 4G, 3G, 2G, 2.4G, 5.8G, 433MHz external and built-in antennas,
- Digital HDTV antennas,
- GPS Trackers,
- 4G, 3G, 2G modems,
- GPS GNSS, 4G, 3G, 2G Wireless Modules,
- RF coaxial connectors and RF cable assemblies.
Q3: What is your advantages?
A3: Professional sales engineering team to help you on the right products and custom design to suit your individual needs.
Q4: How’s the quality of your products?
A4: We provide you with one year warranty for our products, and our professional QA/QC team work hard to ensure the high quality of our products before shipment.
Q5: How can I protect my transaction with your company?
A5: The transaction is secured by Trade Assurance service who provides you with Payment, Product-quality and Shipping protection. Your order will be protected up to 30 days after you receive the goods. It supports payment by below options:
