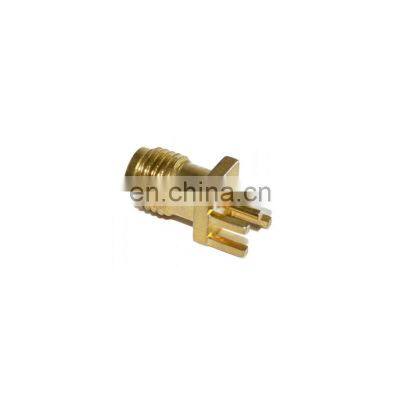

SMA RF Coaxial Connector SMB, BNC, TNC, MCX, MMCX,N-Type RF Connectors photo-2

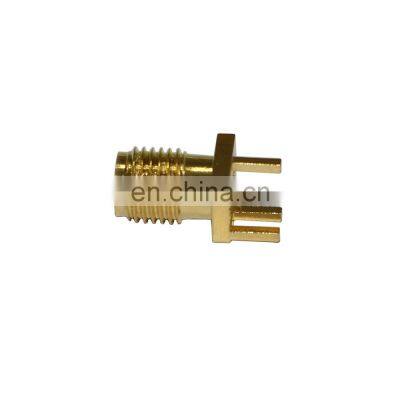

SMA RF Coaxial Connector SMB, BNC, TNC, MCX, MMCX,N-Type RF Connectors photo-3

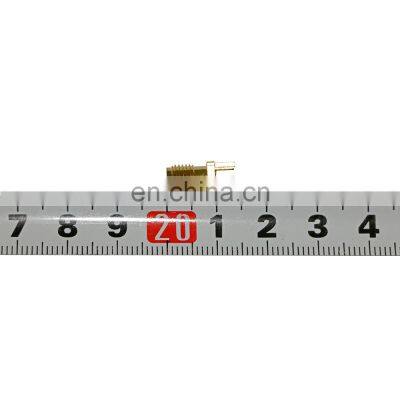

SMA RF Coaxial Connector SMB, BNC, TNC, MCX, MMCX,N-Type RF Connectors photo-4
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Description
Product Code:SMA-KE Female Connector
Product Name: SMA Connector
Part Number:C1
Environment protect information:
satisfy RoHS demand
Electrical performance
Characteristic impedance:
50Ω
Rated current:
0~18GHz
Contact resistance:
inner conductor≤3mΩ
outside conductor≤2mΩ
Dielectrically withstanding voltage:
1000VRMS
Voltage rating:
335 VRMS
Insulation Resistance:
≥ 5000MΩ
Mechanical performance
Inner conductor separating force:
≥0.28N
Durability:
500 times
Material and surface treatment:
Metal material, workmanship and surface treatment
Contact
Material of male:
copper alloy
Surface treatment:
full copper and gold-plated
Workmanship:
machining operation
Material:
copper alloy
Surface Treatment:
full copper and gold-plated
Workmanship:
machining operation Plastic, Workmanship And Forming
Insulator
Material:
polytetrafluoroethylene
Workmanship:
machining operation
Operation environment
Temperature Range:
-55℃~+155℃
Shock:
500 m/s2
Vibration:
10~2000Hz,10m/s2
Structure and Dimension

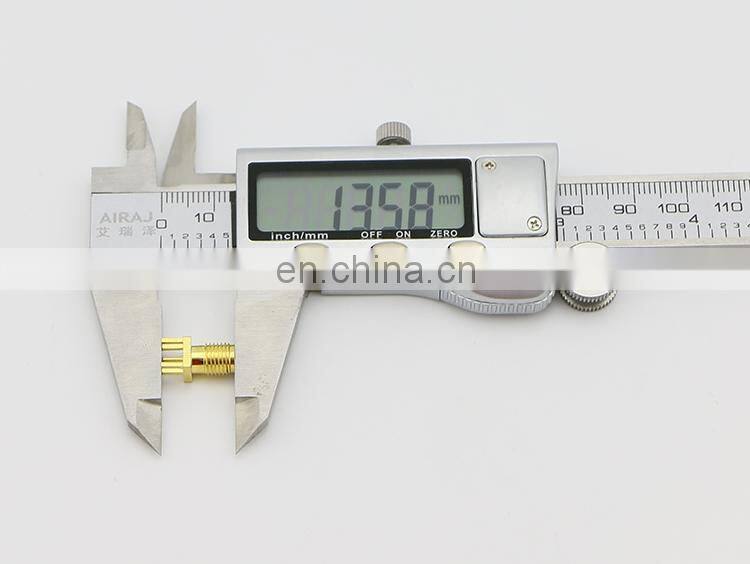

Maximum dimension of plug:
14MM/Customized
Brief Introduction
Package and Store:
100PCS/package
We are a large company manufacture RF coaxial connectors. SMA(C1) is one kind of microminiature RF coaxial connectors with snap-on coupling self-lock mechanism, Characteristic impedance is 50Ω.They are widely used in connection with RF coaxial cable or the transmission of RF signal in the mobile communication system, GSM, GPRS, CDMA, LTE, GPS, GNSS, GLONASS, BEIDOU corresponding to the network, IT field and LANS etc. The characteristic of connector is in small volume, light weight and convenient connection.
