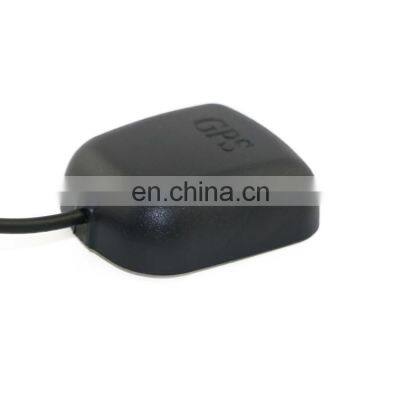

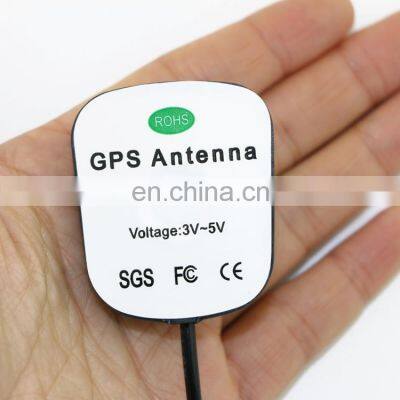

GPS Glonass Magnetic Base Car 1575.42mhz External Active GPS Antenna DIY
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Waterproof Active GPS Navigation Antenna Patch Antenna Manufacturer 1575.42 MHzNegotiableMOQ: 1 -
1575.42 MHz 28dBi External Car Active GPS Antenna MCX/ MMCX Straight/ Right-angled ConnectorNegotiableMOQ: 1
-
CE ROHS Mini 1575.42Mhz 28dbi Active External Car GPS Antenna With SMA or Fakra Connector PriceNegotiableMOQ: 1
-
1575.42mhz Active Car GNSS GLONASS GPS Antenna With Fakra ConnectorNegotiableMOQ: 1
-
12x12x7mm IPEX Connector 100mm Cable Patch Ceramic Active GNSS AntennaNegotiableMOQ: 1
Description
Model No. | GPS-A | |
Cable | RG174, Length=3M or customized | |
Cable Gain | ±2dBi | |
Dielectric | ||
Center Frequency | 1575.42±3 MHz | |
V.S.W.R | 2:1 | |
Band Width | ±5 MHz | |
Impendence | 50Ω | |
Peak Gain | >3dBic Based on 7×7cm ground plane | |
Gain Coverage | >-4dBic at -90°<0<+90°(over 75% Volume) | |
Polarization | RHCP | |
LNA/Filter | ||
LNA Gain Without Cable | 28dB Typical | |
Noise Figure | 2.0dB | |
Filter Out Band Attenuation | (f0=1575.42MHz) | |
7dB Min f0+/-20MHz; 20dB Min f0+/-50MHz; 30dB Min f0+/-100MHz | ||
V.S.W.R | <2.0 | |
DC Voltage | 3V to 5V | |
DC current | 7-10MA | |
Weight | 60 gram | |
Size | 45X38X15mm | |
Cable Type | RG174 Cable, 3 Meters (customized) | |
Kindly Reminder:
-For your customized requirements on the GPS receiver antenna, like frequency ranges, connector type,cable type and length, ect, please kindly contact us before purchasing.
The GPS antenna options:
-Frequency: GPS 1575.42MHz (with GLONASS, BEIDOU frequencies optional)
-Connector Type: SMA Male (with Fakra, MCX, MMCX, SMB, ect optional)
-Magnetic or Adhesive Mounting
-IP65 Strong Shield (with IP67 Waterproof Shield Optional)
-Cable Length: 3 meter by default (customized)
-Cable Type: RG174 (with RG316, RG58, ect optional)
Applications:
GPS Navigation, Positioning for Automobile, Car, Bus, Trailer, ect;
Car DVD Navigation, Night Vision Camera, Dash Camera, Car DVR, Anti-theft, ect;
GPS Positioning for M2M Applications, Environmental Monitoring, Bridge Mapping, ect.
Excellent signal reception with this ultra small GPS external antenna and built in low noise amplifier (LNA). This GPS antenna provides 28 dB of gain with its built in LNA. The industry standard SMA connector will work with most GPS systems and the magnetic base allows you to conveniently attach it to your objects.
Highlights:
Active GPS antenna with SMA male connector;
Magnetic Mounting (Please contact us for the Adhesive mounting option);
CE RoHS compliant;
Lightweight in size 45x38x15mm, weight 60g.
Cable length: 3 meters;
DC Voltage: 3V to 5V;
Plug and Play.
