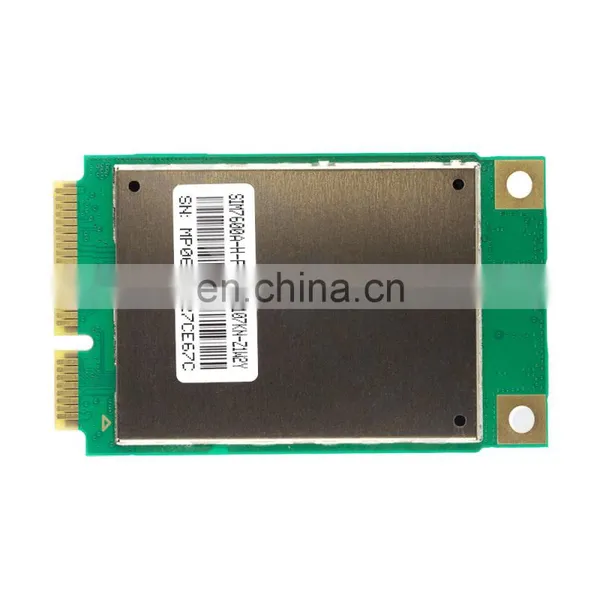

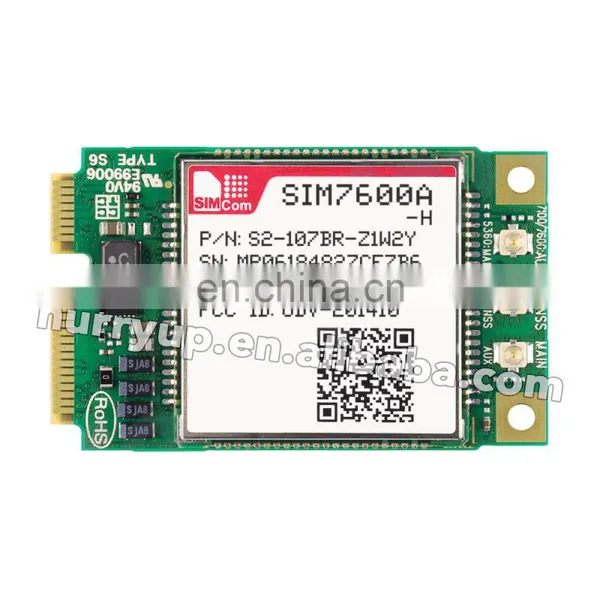

150Mbps/50Mbps 4G LTE Cat.4 Module SIMCom SIM7600A-H MiniPCIe
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
150Mbps/50Mbps 4G LTE Cat.4 Module MiniPCIe SIMCom SIM7600JC-HNegotiableMOQ: 1 -
SIMCom SIM7600JC-H MiniPCIe 150Mbps/50Mbps 4G LTE Cat.4 ModuleNegotiableMOQ: 1
-
M2 to USB/MiniPCIe Adapter Support 4G 5G M.2 Module USB3.0 M2 MiniPCIe AdapterNegotiableMOQ: 1
-
4G 5G M.2 Module Switch to USB/MiniPCIe Support 30*42 30*52 M2 USB/MiniPCIe AdapterNegotiableMOQ: 1
-
150Mbps/50Mbps Cat.4 SIM7600G-H Breakout Board GNSS LTE 4G Development Core BoardNegotiableMOQ: 1
Description
SIM7600X-H-PCIE
LTE CAT.4
● The SIM7600-H-PCIE series is the LTE Cat 4 module which supports wireless communication modes of LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.
● The SIM7600-H-PCIE series adopts mini PCIE form factor and consists of a SIM7600-H series module and a mini PCIE adapter board. It is easy for customers to integrate.
● The SIM7600-H-PCIE series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600 series modules.
● Mean while the SIM7600-H-PCIE series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.
Product Advantages
● Mini-PCIE interface with strong compatibility;
● Multi-constellation GNSS receiver support;
● Suitable for LTE, UMTS and GSM networks with global coverage;
● Abundant software functions: FOTA, LBS, TLS, VoLTE;
● AT commands of the SIM7600-H-PCIE series are compatible with the SIM7500/SIM7600 series modules.
● Mini-PCIE interface with strong compatibility;
● Multi-constellation GNSS receiver support;
● Suitable for LTE, UMTS and GSM networks with global coverage;
● Abundant software functions: FOTA, LBS, TLS, VoLTE;
● AT commands of the SIM7600-H-PCIE series are compatible with the SIM7500/SIM7600 series modules.
Product |
SIM7600A-H-PCIE |
SIM7600V-H-PCIE |
SIM7600SA-H-PCIE |
SIM7600JC-H-PCIE |
SIM7600E-H-PCIE |
SIM7600NA-H-PCIE |
SIM7600G-H-PCIE |
||||||
Form Factor |
Mini PCIE |
Mini PCIE |
Mini PCIE |
Mini PCIE |
Mini PCIE |
Mini PCIE |
Mini PCIE |
||||||
Dimensions(mm) |
50.8*31*5.35 |
50.8*31*5.35 |
50.8*31*5.35 |
50.8*31*5.35 |
50.8*31*5.35 |
50.8*31*5.35 |
50.8*31*5.35 |
||||||
Frequency Bands |
LTE-FDD |
B2/B4/B12 |
B2/B4/B5/B13 |
B1/B2/B3/B4/B5/ B7/B8/B28/B66 |
B1/B3/B8/B18/B19/B26 |
B1/B3/B5/B7/B8/B20 |
B2/B4/B5/B12/B13/ B14/B25/ B26/B66/B71 |
B1/B2/B3/B4/B5/ B7/B8/B12/B13/ B18/B19/B20/B25/ B26/B28/B66 |
|||||
LTE-TDD |
B40 |
B38/B40/B41 |
B41 |
B34/B38/B39/ B40/B41 |
|||||||||
WCDMA |
B2/B5 |
B1/B2/B5/B8 |
1/B5/B8 |
B1/B2/B4/B5/ B6/B8/B19 |
|||||||||
GSM |
850/900/1800/1900MHz |
900/1800MHz |
850/900/1800/1900MHz |
||||||||||
Temperature GNSS |
-40℃ ~ +85℃ Optional |
-40℃ ~ +85℃ Optional |
-40℃ ~ +85℃ Optional |
-40℃ ~ +85℃ Optional |
-40℃ ~ +85℃ Optional |
-40℃ ~ +85℃ Optional |
-40℃ ~ +85℃ Optional |
||||||
Electrical Features |
|||||||||||||
Supply Voltage(V) |
3.0~ 3.6 |
3.0~ 3.6 |
3.0~ 3.6 |
3.0~ 3.6 |
3.0~ 3.6 |
3.0~ 3.6 |
3.0~ 3.6 |
||||||
Power Consumption(mA) |
LTE |
2.3 |
2.3 |
2.3 |
2.3 |
2.3 |
2.3 |
2.3 |
|||||
WCDMA, DRX=9 |
3.3 |
3.3 |
3.3 |
3.3 |
|||||||||
GSM,BS_PA_MFRMS=2 |
2.8 |
2.8 |
2.8 |
||||||||||
Data Transfer |
|||||||||||||
LTE(Mbps) |
150(DL)/50(UL) |
150(DL)/50(UL) |
150(DL)/50(UL) |
150(DL)/50(UL) |
150(DL)/50(UL) |
150(DL)/50(UL) |
150(DL)/50(UL) |
||||||
HSPA+(Mbps) |
42(DL)/5.76(UL) |
42(DL)/5.76(UL) |
42(DL)/5.76(UL) |
42(DL)/5.76(UL) |
|||||||||
WCDMA(Kbps) |
384(DL)/384(UL) |
384(DL)/384(UL) |
384(DL)/384(UL) |
384(DL)/384(UL) |
|||||||||
GPRS/EDGE(Kbps) |
236.8(DL)/236.8(UL) |
236.8(DL)/236.8(UL) |
236.8(DL)/236.8(UL) |
||||||||||
Software Features |
|||||||||||||
Protocol |
TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS |
TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS |
TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS |
TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS |
TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS |
TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS |
TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS |
||||||
TLS |
● |
● |
● |
● |
● |
● |
● |
||||||
File System |
● |
● |
● |
● |
● |
● |
● |
||||||
Audio Record/Play |
o |
o |
o |
o |
o |
o |
o |
||||||
TTS |
o |
o |
o |
o |
o |
o |
o |
||||||
DTMF |
o |
o |
o |
o |
o |
o |
o |
||||||
LBS |
● |
● |
● |
● |
● |
● |
● |
||||||
FOTA |
● |
● |
● |
● |
● |
● |
● |
||||||
Jamming Detection |
● |
● |
● |
● |
● |
● |
● |
||||||
Android RIL |
Android 5.0/6.0/7.0/8.0/9.0 |
Android 5.0/6.0/7.0/8.0/9.0 |
Android 5.0/6.0/ 7.0/8.0/9.0 |
Android 5.0/6.0/ 7.0/8.0/9.0 |
Android 5.0/6.0/ 7.0/8.0/9.0 |
Android 5.0/6.0/ 7.0/8.0/9.0 |
Android 5.0/6.0/ 7.0/8.0/9.0 |
||||||
USB Driver |
Microsoft Windows 7/8/10 Linux/Android |
Microsoft Windows 7/8/10 Linux/Android |
Microsoft Windows 7/8/10 Linux/Android |
Microsoft Windows 7/8/10 Linux/Android |
Microsoft Windows 7/8/10 Linux/Android |
Microsoft Windows 7/8/10 Linux/Android |
Microsoft Windows 7/8/10 Linux/Android |
||||||
WWAN (RNDIS) |
● |
● |
● |
● |
● |
● |
● |
||||||
ECM |
● |
● |
● |
● |
● |
● |
● |
||||||
MBIM |
Win8/Win10 |
Win8/Win10 |
Win8/Win10 |
Win8/Win10 |
Win8/Win10 |
Win8/Win10 |
Win8/Win10 |
||||||
NDIS |
Linux/Windows 7/8/10 |
Linux/Windows 7/8/10 |
Linux/Windows 7/8/10 |
Linux/Windows 7/8/10 |
Linux/Windows 7/8/10 |
Linux/Windows 7/8/10 |
Linux/Windows 7/8/10 |
||||||
Open Linux |
o |
o |
o |
o |
o |
o |
o |
||||||
Firmware Upgrade |
USB/FOTA |
USB/FOTA |
USB/FOTA |
USB/FOTA |
USB/FOTA |
USB/FOTA |
USB/FOTA |
||||||
Interfaces |
|||||||||||||
SIM Card |
1.8V/3.0V |
1.8V/3.0V |
1.8V/3.0V |
1.8V/3.0V |
1.8V/3.0V |
1.8V/3.0V |
1.8V/3.0V |
||||||
UART |
● |
● |
● |
● |
● |
● |
● |
||||||
USB |
● |
● |
● |
● |
● |
● |
● |
||||||
PCM |
o |
o |
o |
o |
o |
o |
o |
||||||
Analog Audio |
o |
o |
o |
o |
o |
o |
o |
||||||
Embedded SIM card socket |
o |
o |
o |
o |
o |
o |
o |
||||||
Diversity Receiver |
● |
● |
● |
● |
● |
● |
● |
||||||
Certification |
|||||||||||||
Regulatory |
RoHSREACHFCCPTCRBICAT&T |
RoHSREACHFCCGCFVerizon |
RoHSREACHFCCNCCACMACE(RED)Anatel |
RoHSREACHTelecJateDocomoSoftban |
RoHSREACHCE(RED)GCFIMDADTAGVodafo |
RoHSREACHFCCICPTCRBGCFAT&TVerizonT-Mobile |
RoHSREACHCE(RED)FCCICRCMCCCTelecJateAnatelNCCAT&TVerizonT-Mobile |
||||||
Carrier |
AT&T |
Verizon |
Docomo/Softbank |
Deutsche Telekom /Vodafone |
AT&T*/Verizon*/ Sprint*/T-mobile* |
||||||||
