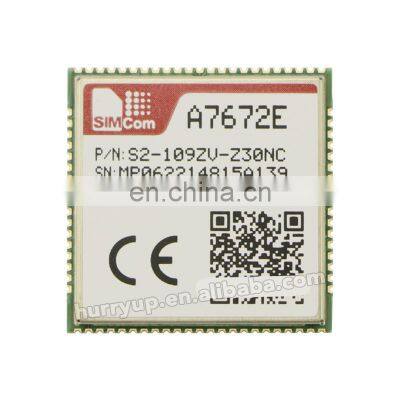

10Mbps/5Mbps 4G Cat1 LTE/GSM/GPRS/EDGE Module A7672E A7672 photo-2

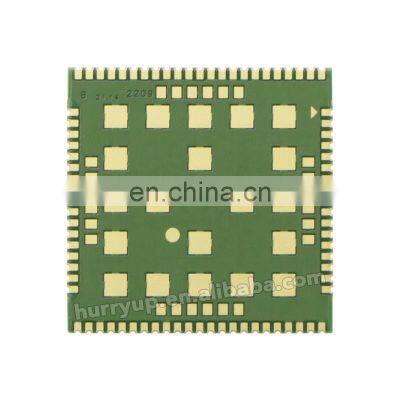

10Mbps/5Mbps 4G Cat1 LTE/GSM/GPRS/EDGE Module A7672E A7672 photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Contact Supplier Request Quote Chat Now
Shenzhen Hurryup Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Description
A7672X
A7672E is the LTE Cat 1 module that supports wireless communication modes of LTE-FDD/GSM/GPRS/EDGE. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate. A7672E adopts LCC+LGA form factor and is compatible with SIM7000/SIM7070 series (NB/Cat M modules), and SIM800A/SIM800F series (2G modules), which enables smooth migration from 2G/NB/Cat M products to LTE Cat 1 products, and greatly facilitates more compatible product design for the customer needs. A7672E supports both multiple built-in network protocols and the drivers for main operation systems (USB driver for Windows, Linux and Android). The software functions, AT commands are compatible with the SIM800 series modules. A7672E also supports BLE* and GNSS* and it integrates abundant industrial standard interfaces with powerful expansibility, such as UART, USB, I2C and GPIO, which makes it perfectly suitable for main IOT applications such as telematics, POS, surveillance devices, industrial routers, and remote diagnostics etc.

Product Advantages
- Compact size with abundant interfaces - Supports BLE and GNSS functions* - Abundant software functions: FOTA, LBS, SSL - Form factor is compatible with the SIM7000/SIM7070 series

Product
A7672S
A7672E
A7672SA
Form Factor
LCC+LGA
LCC+LGA
LCC+LGA
Dimensions(mm)
24.0*24.0*2.4
24.0*24.0*2.4
24.0*24.0*2.4
Frequency Bands
LTE-FDD
B1/B3/B5/B8
B1/B3/B5/B7/B8/B20
B1/B2/B3/B4/B5/B7/B8/B28/B66
LTE-TDD
B34/B38/B39/B40/B41
GSM
900/1800MHz
900/1800MHz
850/900/1800/1900MHz
Temperature
-40℃ ~ +85℃
-40℃ ~ +85℃
-40℃ ~ +85℃
Electrical Features
Supply Voltage(V)
3.4~ 4.2
3.4~ 4.2
3.4~ 4.2
Power Consumption
(mA)
LTE
TBD
TBD
TBD
GSM,BS_PA_MFRMS=2
TBD
TBD
TBD
Data Transfer
LTE(Mbps)
10(DL)/5(UL)
10(DL)/5(UL)
10(DL)/5(UL)
GPRS/EDGE(Kbps)
236.8(DL)/236.8(UL)
236.8(DL)/236.8(UL)
236.8(DL)/236.8(UL)
Software Features
Protocol
TCP/IP/IPV4/IPV6/Multi-PDP/FTP/ FTPS /HTTP/HTTPS/DNS
TCP/IP/IPV4/IPV6/Multi-PDP/FTP/ FTPS /HTTP/HTTPS/DNS
TCP/IP/IPV4/IPV6/Multi-PDP/FTP/ FTPS /HTTP/HTTPS/DNS
TLS
●
●
●
MQTT
●
●
●
File System
●
●
●
Audio Record/Play
o
o
o
TTS
●
●
●
LBS
●
●
●
FOTA
●
●
●
Android RIL
Android 5.0/6.0/7.0/8.0/9.0
Android 5.0/6.0/7.0/8.0/9.0
Android 5.0/6.0/7.0/8.0/9.0
USB Driver
Microsoft Windows 7/8/10
Linux/Android
Microsoft Windows 7/8/10
Linux/Android
Microsoft Windows 7/8/10
Linux/Android
WWAN (RNDIS)
●
●
●
ECM
●
●
●
Embedded AT
o
o
o
Firmware Upgrade
USB/FOTA
USB/FOTA
USB/FOTA
Interfaces
SIM Card
1.8V/3.0V
1.8V/3.0V
1.8V/3.0V
UART
●
●
●
USB
●
●
●
PCM
o
o
o
ADC
●
●
●
GPIO
●
●
●
I2C
●
●
●
GNSS
o
o
o
BLE
o
o
o
Certification
Certification
CE-RED*/RoHS*/ REACH*
Anatel*/RoHS*/ REACH*
