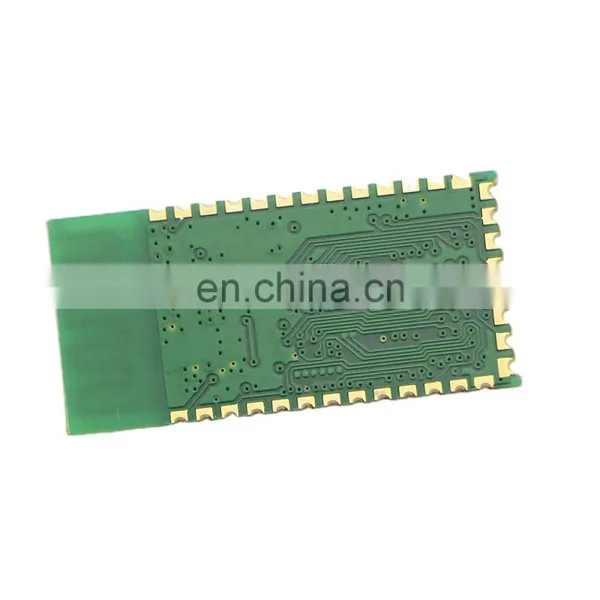

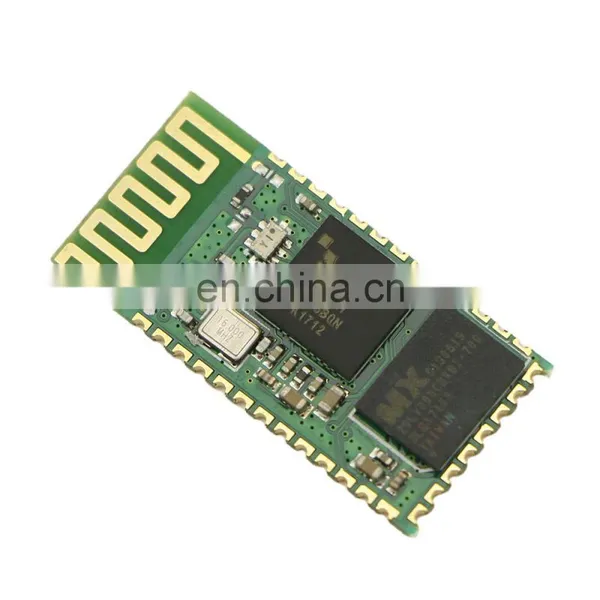

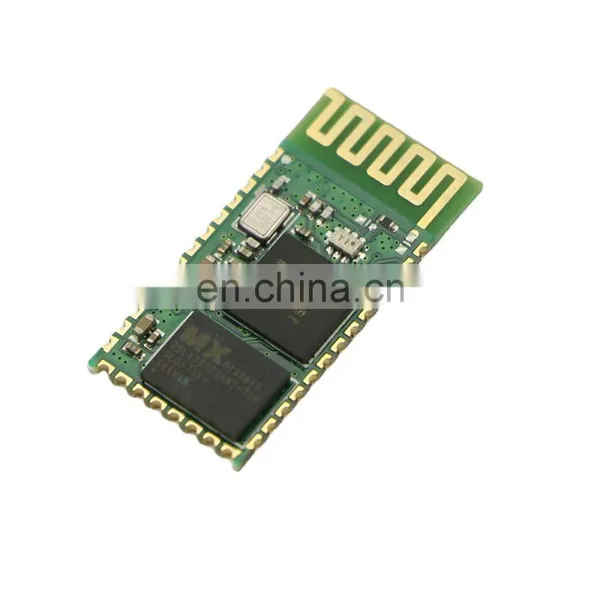

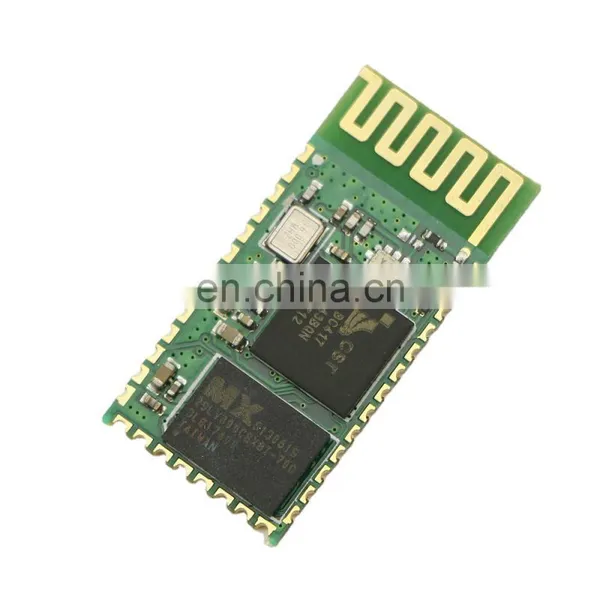

Low Price Original HC-06 RF Wireless BT Transceiver Slave Module

HC-06 BLE

Serial port BLE, Drop-in replacement for wired serial connections, transparent usage. You can use it simply for a serial port replacement to establish connection between MCU and GPS, PC to your embedded project and etc.

Feature:

• Use the CSR BLE chip, compatible with the BLE V2.0 protocol
• Operating Voltage 3.3V
• Adjustable baud rate : 1200,2400,4800,9600,19200,38400,57600,115200
• Size: 28mm x 15 mm x 2.35mm
• Operating Current 40 mA
• Sleep Current < 1mA

Default:

Slave, 9600 baud rate, N, 8, 1. Pincode 1234

AT command:

1. Communications Test :

Sent : AT

receive : OK

2. Change baud rate :

Sent : AT+BAUD1

receive : OK1200

Sent : AT+BAUD2

receive : OK2400

1---------1200
2---------2400
3---------4800
4---------9600
5---------19200
6---------38400
7---------57600
8---------115200

Baud rate setting can be save even power down.

3. Change BLE device name:

Sent : AT+NAMEdevicename

receive : OKname

(devicename is the name you want the device to be , and it will be searched with this name)

Name setting can be save even power down.

4. Change Pincode:

Sent : AT+PINxxxx

receive : OKsetpin

(xxxx is the pin code you set)

Pin code can be save even power down.
