Description

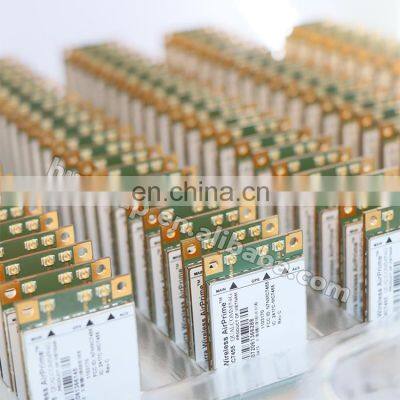

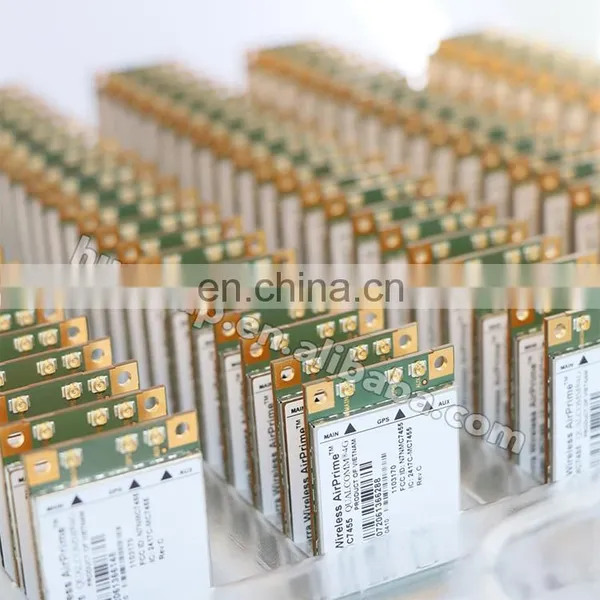

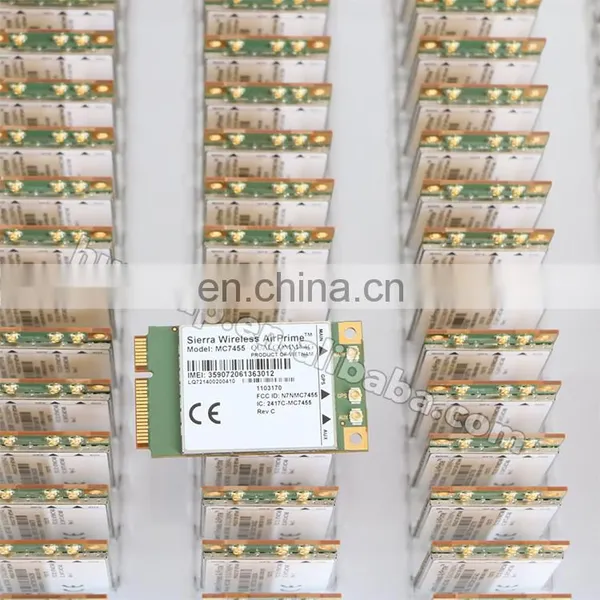

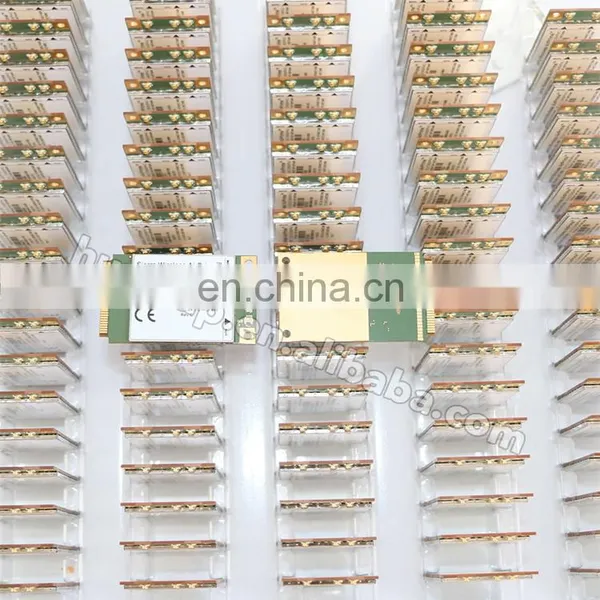

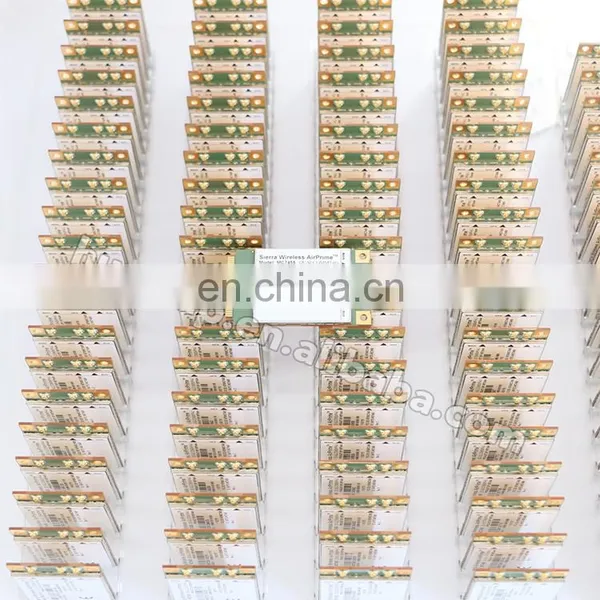

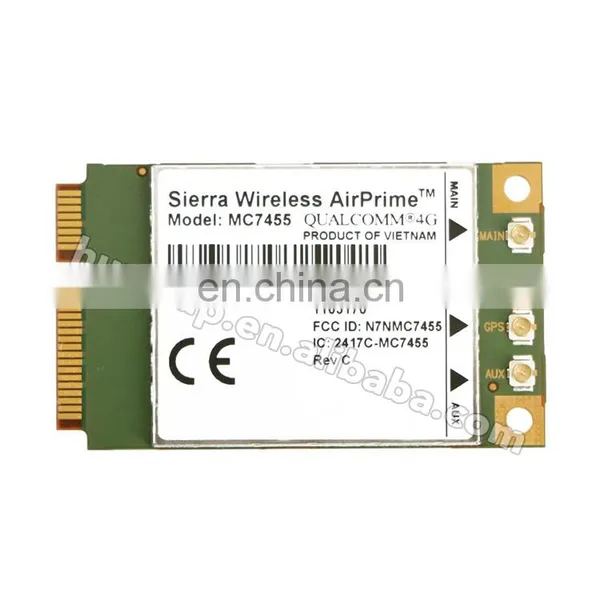

AirPrime MC7455 M2M Module
Optimized 4G LTE Cat-6 IoT connectivity with 3G fallback for the Americas and EMEA
The MC7455 module is part of the MC Series offering unprecedented LTE speeds, bandwidth, and network performance on the PCI Express Mini Card form factor commonly used in networking equipment.
This LTE-Advanced Cat-6 embedded module delivers up to 300 Mbps download speed and supports most 4G LTE bands in the market providing coverage for the Americas and EMEA on a single SKU. With automatic fallback to 3G networks and integrated GNSS receiver (GPS, GLONASS, Beidou, and Galileo satellite systems supported), the MC7455 is ideal for networking and telematics applications.
Coupled with the most operator certifications in the industry and network switching capability, MC7455 (MC7430 for APAC) allows customers to change their network provider anytime, providing more flexibility in manufacturing.
Region
● Region: Americas/EMEA
● Carrier: AT&T, Bell, Rogers, Sprint, Telus, US Cellular, Verizon, Vodafone, T-Mobile, SouthernLinc
● Air Interface: 4G LTE Cat-6 with 3G fallback
Benefits
● Enhanced Coverage
Dual SIM single standby (DSSS) switches between networks quickly to stay connected
● Network Switching
Switch networks anytime with up to three different certified firmware variants on board
● FOTA Upgrades
FREE unlimited firmware over-the-air (FOTA) upgrades future-proof deployments and keep them secure
● Cloud Connected
Securely collect data and remotely manage your IoT deployments with integrated AirVantage® cloud services
● Location Services
GNSS receiver enables tracking and location-based services
● TCP/IP Stack
Embedded stack to easily communicate over the internet
● Programmability
Basic and Extended AT Commands simplify development
● Industrial-Grade
Tested for harsh environments and extreme temperatures
4G LTE |
||
Category |
Cat-6 |
|
Frequency Bands |
B1,B2,B3,B4,B5,B7,B8,B12,B13,B20,B25,B26,B29,B30,B41 |
|
3G |
||
WCDMA |
B1, B2, B3, B4, B5, B8 |
|
Data Speed |
||
Peak Download Rate |
300Mbps |
|
Peak Upload Rate |
50Mbps |
|
Location Services |
||
Satellite Systems |
Galileo, Glonass, GPS, BeiDou |
|
Embedded Software |
||
System Drivers |
Windows® 7, Windows® 8.1, Windows® 10, Linux Driver: Standard ECM, Android RIL |
|
Interfaces |
||
USB |
USB 3.0, USB 2.0 High Speed |
|
GPIO |
4 |
|
SIM interface 1.8V/3V |
2 |
|
Control Options |
APIs, AT Commands |
|
Hardware |
||
Dimensions |
51x30x2.7mm |
|
Antenna |
Diversity, MIMO, GNSS Bias, Connectors: Main, Aux/GNSS, GNSS |
|
Temperature Range |
Industrial Grade: -40°C / + 85°C |
|
Approvals |
||
Carrier |
AT&T, Bell, Rogers, SouthernLINC, Sprint, T-Mobile, Telus, Verizon, Vodafone, US Cellular |
|
Regulatory |
Anatel, FCC, GCF, IC, NCC, PTCRB |
|
