Sierra Wireless AirPrime WP7605 IoT Module 3G 4G LTE Cat-4 Module for Japan
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sierra Wireless AirPrime WP7608-1 IoT Module 4G LTE 3G 2G ModulesNegotiableMOQ: 1 -
Sierra Wireless AirPrime WP7601 4G LTE IoT ModuleNegotiableMOQ: 1
-
IMEI Changer Software for Wavecom/Cinterion Modules Based on DWLWin ProgramNegotiableMOQ: 1
-
Sierra WISMO228 Module WISMO 228 Integrated CircuitNegotiableMOQ: 1
-
Sierra Wireless 4G MC7750 Module ManufacturersNegotiableMOQ: 1
Description

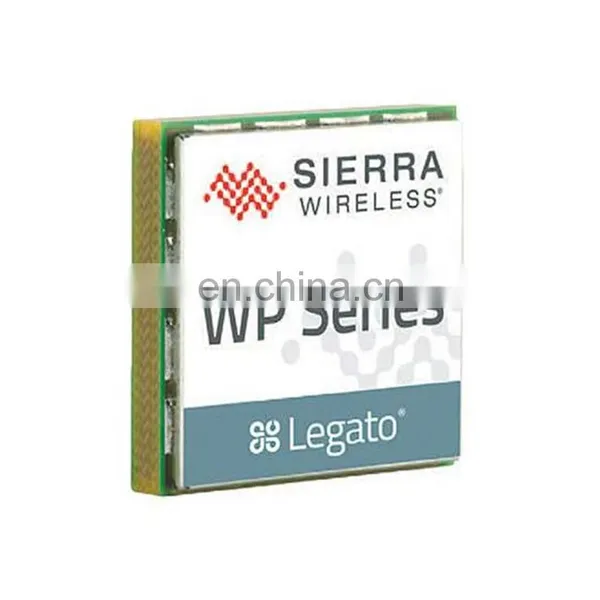

AirPrime WP7605 IoT Module
Reliable 4G LTE Cat-4 wireless connectivity with 3G fallback for Japan
• The WP7605 module is part of the WP Series offering a secure device-to-cloud architecture enabling IoT developers to build a Linux-based product on a single module.
• This LTE Cat-4 embedded module delivers up to 150 Mbps download speed and is ideal for IoT applications requiring broadband connectivity such as industrial gateways, transportation, and mission-critical networking applications.
• Offering an application processor running the open source Legato® platform, optional GNSS receiver, and cellular modem with an ultra-low power domain, WP modules reduce system complexity and get you to market faster.
Reliable 4G LTE Cat-4 wireless connectivity with 3G fallback for Japan
• The WP7605 module is part of the WP Series offering a secure device-to-cloud architecture enabling IoT developers to build a Linux-based product on a single module.
• This LTE Cat-4 embedded module delivers up to 150 Mbps download speed and is ideal for IoT applications requiring broadband connectivity such as industrial gateways, transportation, and mission-critical networking applications.
• Offering an application processor running the open source Legato® platform, optional GNSS receiver, and cellular modem with an ultra-low power domain, WP modules reduce system complexity and get you to market faster.
4G LTE
• Category
Cat-4
• Frequency Bands
B1, B3, B8, B11, B18, B19, B21
3G
• HSPA+, UMTS
B1, B6, B19
DATA SPEED
• Peak Download Rate
150Mbps
• Peak Upload Rate
50Mbps
LOCATION SERVICES
• Satellite Systems
Optional: GPS, Galileo, Glonass, Beidou
CORES
• Application Core
ARM® Cortex™- A7 (1.3GHz)
• Telecom Core
QDSP6
EMBEDDED SOFTWARE
• Firmware
Secure boot, Pre-certified firmware
• Embedded Platform
Legato® open source
• Linux Distribution
Yocto, Long-term supported Linux Kernel (LTSI)
• Audio
Codec: HR, FR, EFR, AMR, Digital Audio, DTMF, Echo Cancellation & Noise Reduction, I2S, PCM
• System Drivers
Windows® 7, Windows® 8, Windows® 10, Linux Driver: Standard ECM
INTERFACES
• UART
2
• USB
1
• I2C
1
• ADC
2
• GPIO
18
• Tx ON Indicator
1
• SIM interface 1.8V/3V
1
• SPI
1
• SDIO
1
• Flash LED output
1
HARDWARE
• CF3 Form Factor
Snap-in socket option
• Dimensions
22x23x2.5mm
• Antenna
Diversity, MIMO
• Temperature Range
Industrial Grade: -40°C / +85°C
APPROVALS
• Carrier
NTT (Data Only), Softbank (Data Only/LTE Only)
• Planned Carrier
Sierra Wireless, KDDI (Data Only)
• Regulatory
FCC, IC, JRF/JPA
EMBEDDED SIM
• Optional Ready-to-Connect (Sierra Wireless USIM)*
CLOUD SERVICES
• Free Unlimited FOTA upgrades, Connectivity Management option, Device Management option
----------------------------------------------------------------------------------------------------------------------------------
*Future release / firmware upgrade
• Category
Cat-4
• Frequency Bands
B1, B3, B8, B11, B18, B19, B21
3G
• HSPA+, UMTS
B1, B6, B19
DATA SPEED
• Peak Download Rate
150Mbps
• Peak Upload Rate
50Mbps
LOCATION SERVICES
• Satellite Systems
Optional: GPS, Galileo, Glonass, Beidou
CORES
• Application Core
ARM® Cortex™- A7 (1.3GHz)
• Telecom Core
QDSP6
EMBEDDED SOFTWARE
• Firmware
Secure boot, Pre-certified firmware
• Embedded Platform
Legato® open source
• Linux Distribution
Yocto, Long-term supported Linux Kernel (LTSI)
• Audio
Codec: HR, FR, EFR, AMR, Digital Audio, DTMF, Echo Cancellation & Noise Reduction, I2S, PCM
• System Drivers
Windows® 7, Windows® 8, Windows® 10, Linux Driver: Standard ECM
INTERFACES
• UART
2
• USB
1
• I2C
1
• ADC
2
• GPIO
18
• Tx ON Indicator
1
• SIM interface 1.8V/3V
1
• SPI
1
• SDIO
1
• Flash LED output
1
HARDWARE
• CF3 Form Factor
Snap-in socket option
• Dimensions
22x23x2.5mm
• Antenna
Diversity, MIMO
• Temperature Range
Industrial Grade: -40°C / +85°C
APPROVALS
• Carrier
NTT (Data Only), Softbank (Data Only/LTE Only)
• Planned Carrier
Sierra Wireless, KDDI (Data Only)
• Regulatory
FCC, IC, JRF/JPA
EMBEDDED SIM
• Optional Ready-to-Connect (Sierra Wireless USIM)*
CLOUD SERVICES
• Free Unlimited FOTA upgrades, Connectivity Management option, Device Management option
----------------------------------------------------------------------------------------------------------------------------------
*Future release / firmware upgrade
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
