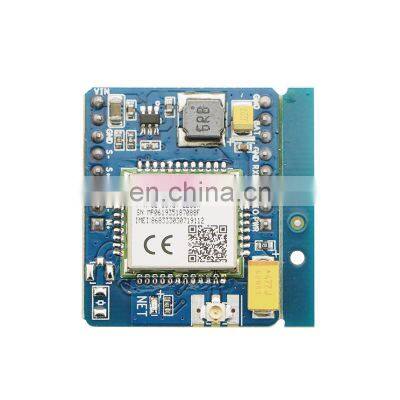

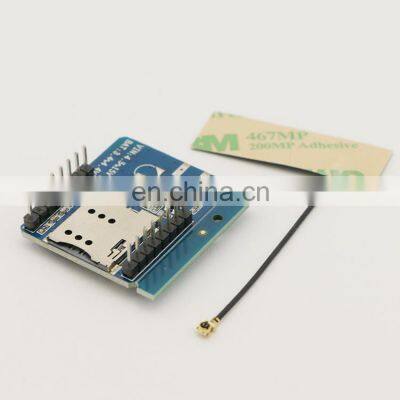

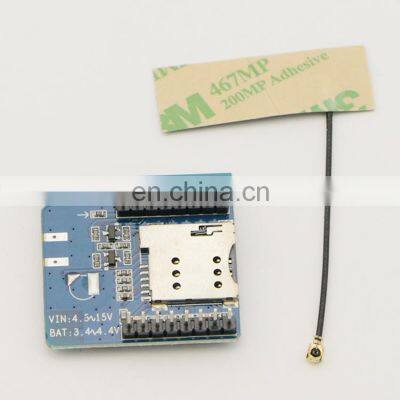

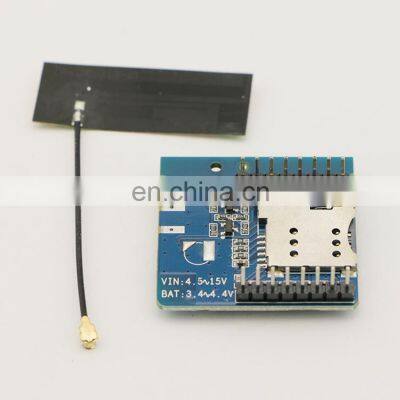

SIMCOM SIM7020 SIM7020E Development Board LTE NB IoT Module
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SIM800L GSM GPRS Module With PCB Board and AntennaNegotiableMOQ: 1 -
SIMCOM SIM7070E Multi Band Module for M2M Applications SIM7070NegotiableMOQ: 1
-
SIMCOM SIM7070G LPWA Module for M2M/IoT ApplicationNegotiableMOQ: 1
-
SIMCOM SIM7070G LPWA Module, SIM7070G CAT-M & NB-IoT LTE ModuleNegotiableMOQ: 1
-
Multi-Band LPWA CAT-M/NB-IoT and GSM Module SIMCOM SIM7070 SIM7070GNegotiableMOQ: 1
Description
SIMCOM SIM7020E Module
• The SIM7020X is Multi-Band NB-IoT module solution in a SMT type.
• It has strong extension capability with rich interfaces including UART, GPIO etc. The module provides much flexibility and ease of integration for customer's application.
• The package of SIM7020 is compatible with SIM800C. This also minimizes the investments of customers, and enables a short time-to-market.
• It is designed for applications that need low latency, Low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring , E-health etc..
Key Benefits
● With Power Save Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7020 can extend battery life to 10 years;
● SIM7020 provides deeper coverage enhancement compared to GSM;
● The package and AT commands of SIM7020 mostly are compatible with SIM800C.
General features
• SIM7020C: B1/B3/B5/B8
• SIM7020E: B1/B3/B5/B8/B20/B28
• Control Via AT Commands
• Supply voltage range: 2.1V-3.6V
• Operation temperature: -40°C to +85°C
• Dimensions: 17.6 X 15.7 X 2.3mm
• Weight: 1.3g±0.2g
Data
• Uplink: 62.5Kbps
SMS
• Downlink:26.15Kbps
• Text and PDU mode
Consumption
• PSM: 5 uA
* In development
Other Features
• Firmware update via UART
• TCP/UDP
• LWM2M/COAP*
• MQTT
• FTP/HTTP/HTTPS*/SSL*/DTLS*
• FOTA *
• PSM/eDRX
Interfaces
• UART
• SIM card (1.8V/3V) GPIO
• ADC
• Netlight
• PSM_EINT
• Reset
• Powerkey
Certifications(plan)
• CCC / TA / CTA (SIM7020C)
• CE/GCF (SIM7020E)
• RoHS / REACH
