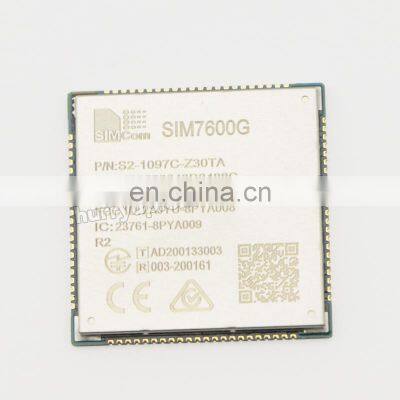

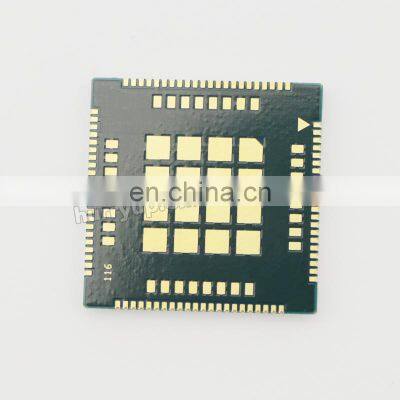

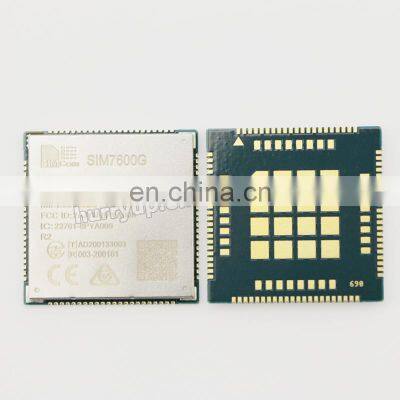

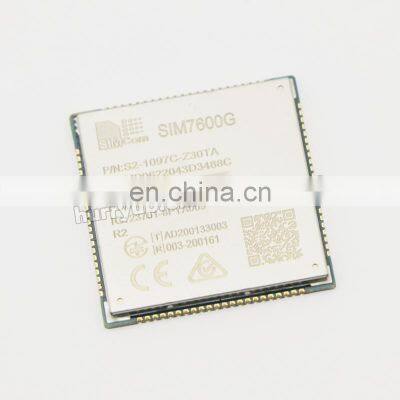

SIMCOM SIM7600G R2 4G LTE Module, SIM7600 LTE Cat1 Module
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SIMCOM SIM7600G 2G 3G 4G Chip, SIM7600 Wireless Communication Chip 2G 3G 4G ModuleNegotiableMOQ: 1 -
EG06 LTE Cat6 Module, EG06 EG06-A EG06-ENegotiableMOQ: 1
-
BG95-M3 Mini PCIe LTE Cat M1/Cat NB2/EGPRS Module BG95M3NegotiableMOQ: 1
-
LTE Cat M1/Cat NB2/EGPRS Module BG600L-M3NegotiableMOQ: 1
-
LTE BG600L-M3 Cat M1/Cat NB2/EGPRS Module BG600LNegotiableMOQ: 1
Description
SIM7600G R2
The SIM7600G R2 is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/
LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.
The SIM7600G R2 adopts LCC+LGA form factor and is compatible with SIM5320/SIM5360 series(UMTS/HSPA+ modules), and SIM7600/SIM7600-H series(LTE modules) , which enables smooth migration from 3G products to LTE products, and greatly facilitates more compatible product design for the customer needs.
The SIM7600G R2 integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600-H series modules. Meanwhile the SIM7600G R2 integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.
Product Advantages
• LCC+LGA form factor with abundant interfaces
• Suitable for LTE, UMTS and GSM networks with global coverage
• Abundant software functions: FOTA, TLS, VoLTE
• Multi-constellation GNSS receiver*
• AT commands of the SIM7600G R2 are compatible with the SIM7500/SIM7600-H series modules
General Features
• Frequency Bands:
LTE-TDD B34/B38/B39/B40/B41
LTE-FDD
B1/B2/B3/B4/B5/B7/B8/B12/B13/
B18/B19/B20/B25/B26/ B28/B66
UMTS/HSPA+
B1/B2/B4/B5/B6/B8/B19
GSM/GPRS/EDGE
850/900/1800/1900MHz
• Supply Voltage: 3.4V ~ 4.2V, Typ: 3.8V
Control Via AT Commands
• Operation temperature: -40℃ ~ +85℃
• Dimensions : 30.0*30.0*2.5mm
• Weight : 5.7±0.1g
Data Transfer
• LTE Cat 1 : Uplink up to 5Mbps
Downlink up to10Mbps
• HSPA+: Uplink up to 5.76Mbps
Downlink up to 42 Mbps
• UMTS: Uplink/Downlink up to 384Kbps
• EDGE: Uplink/Downlink up to 236.8Kbps
• GPRS: Uplink/Downlink up to 85.6Kbps
Other Features
• USB Driver for Microsoft Windows 7/8/10
• USB Driver for Linux /Android
• RIL supporting for Android 5.0/6.0/7.0/8.0/9.0
• Firmware update via USB/FOTA
• TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNS
• RNDIS/NDIS/ECM
• MBIM to Win8
• SSL3.0/TLS1.0/TLS1.2
• DTMF*/Audio Playing*
• USB Audio* and VoLTE*
• FOTA
Interfaces
• USB2.0
• UART
• (U)SIM card(1.8V/3V )
• PCM*
• SGMII*
• MMC/SD
• SDIO
• ADC
• I2C
• GPIO
• Antenna: Support Primary/Rx-diversity/GNSS*
Certifications
• CE/RCM#/FCC/IC#/Anatel#/
• KC#/ICASA#/NBTC#
• Telec#/Jate#
• PTCRB#/GCF#
• AT&T#/Verizon#/T-mobile#/DT#
• RoHS/REACH
Note
• *: optional
• #: on going
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
