1.About Us
DongJie Wire Mesh Filter Products Co.,Ltd.
We are a professional manufacturer engaged in the deep processing of various industrial filters and
mesh products. Our product portfolio primarily encompasses metal mesh series, industrial filter series,
filter end covers and stamping parts, stainless steel mesh products, as well as deep-processed mesh
product series.
Our stamping end cover and metal mesh series include car de-dusting equipment, air compressors,
over 10,000 categories of filter end covers and stamping parts for ships, as well as perforated meshes,
steel plate meshes, aluminium plate meshes, copper plate meshes, and nickel plate meshes of various
specifications.
Our industrial filter series include: de-dusting filters and filter cylinders, stainless steel filters,
melt filters, sintering screen filters, filtering plates, filtering pieces, and dust filters. In particular, our
company may develop purifying and filtering products of specific specifications used in specific
environments as required by different clients
2.Product Description
|
Hole Shape |
Diamond, Hexagonal |
|
|
Thickness |
0.5-8 mm |
|
|
Surface Treatment |
Spray anti rust paint, hot dip galvanized, electro galvanized, dip plastic |
|
|
Feature |
The net surface smooth, uniform mesh, no fracture, high tensile strength, bearing, anti-skid, wear - resistant |

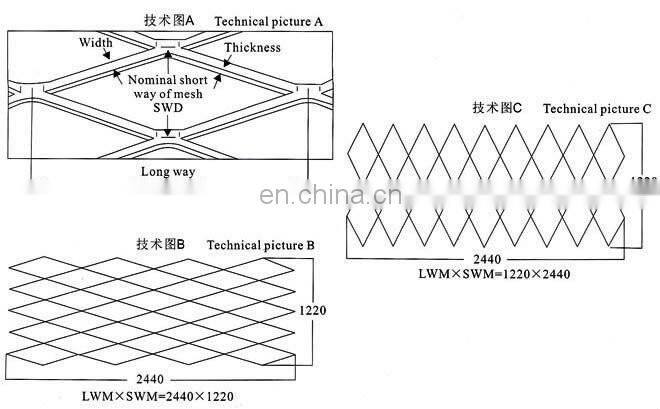

| Specification | ||||||

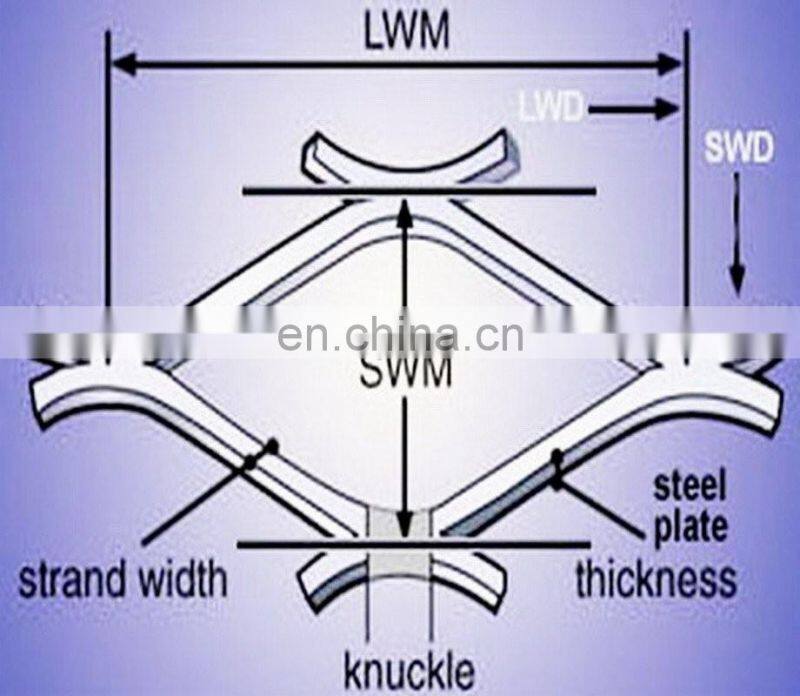

| Thickness (mm) | SWD (mm) | LWD (mm) | Wire stems wodth (mm) | Width (m) | Length (m) | Weight (kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4 | 60 | 120 | 4 | 2 | 7.5 | 4.0 |
| 4 | 80 | 180 | 4 | 2 | 10 | 3.0 |
| 4 | 100 | 200 | 4 | 2 | 12 | 2.5 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 5 | 75 | 150 | 5 | 2 | 10 | 3.0 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |

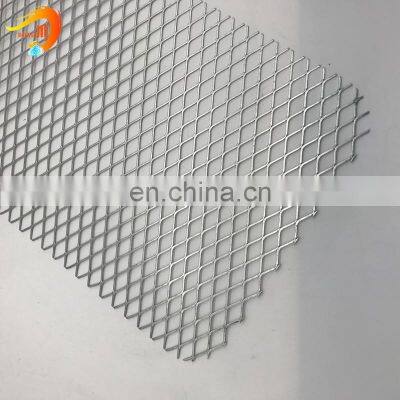

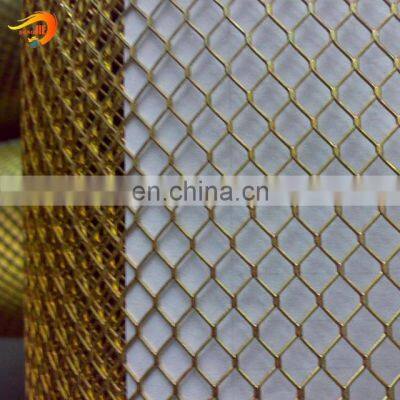

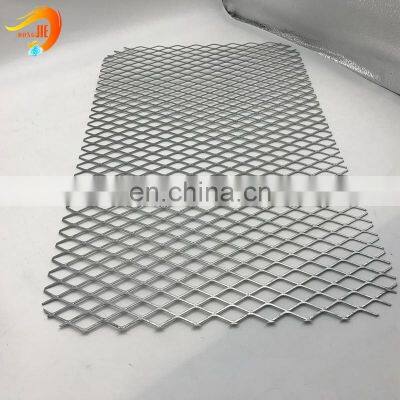

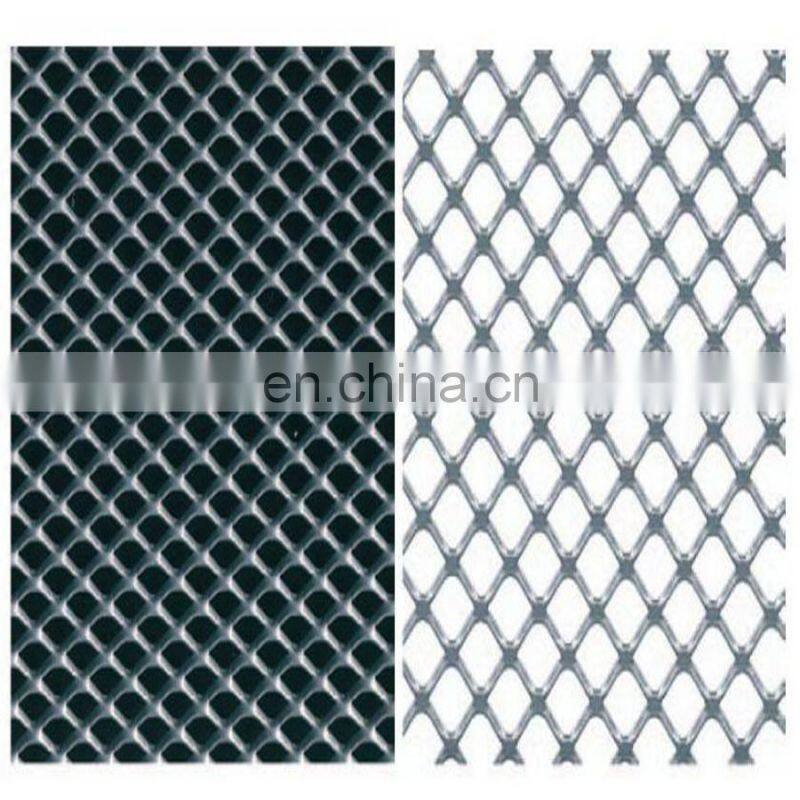

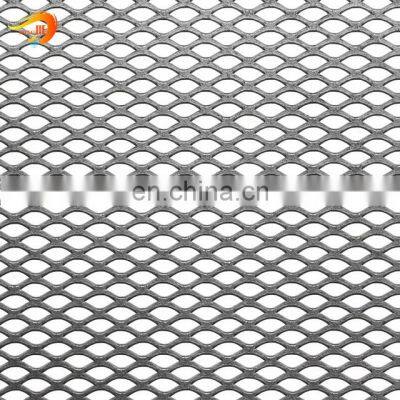

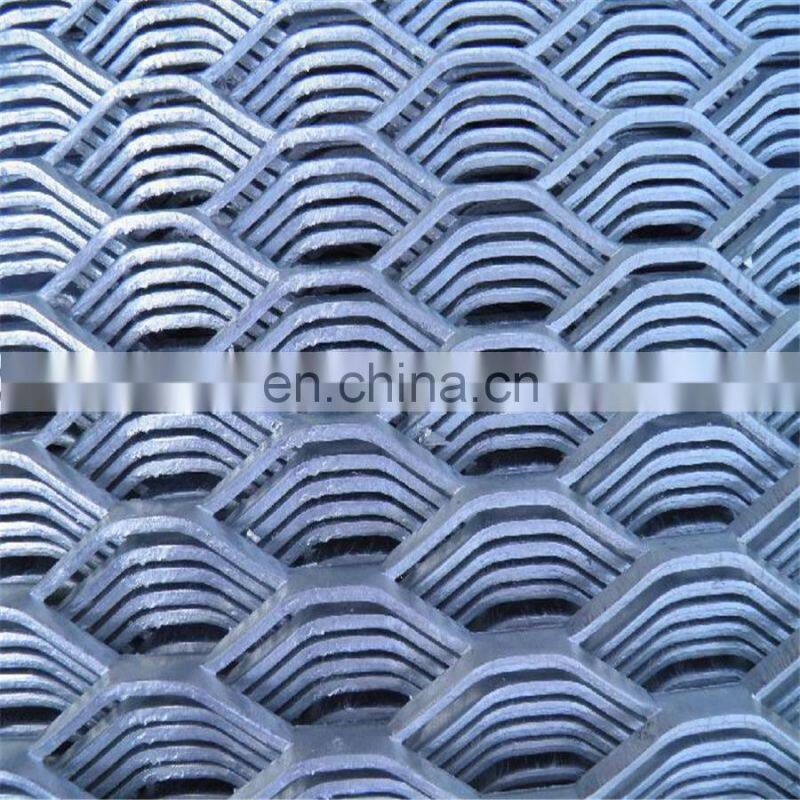

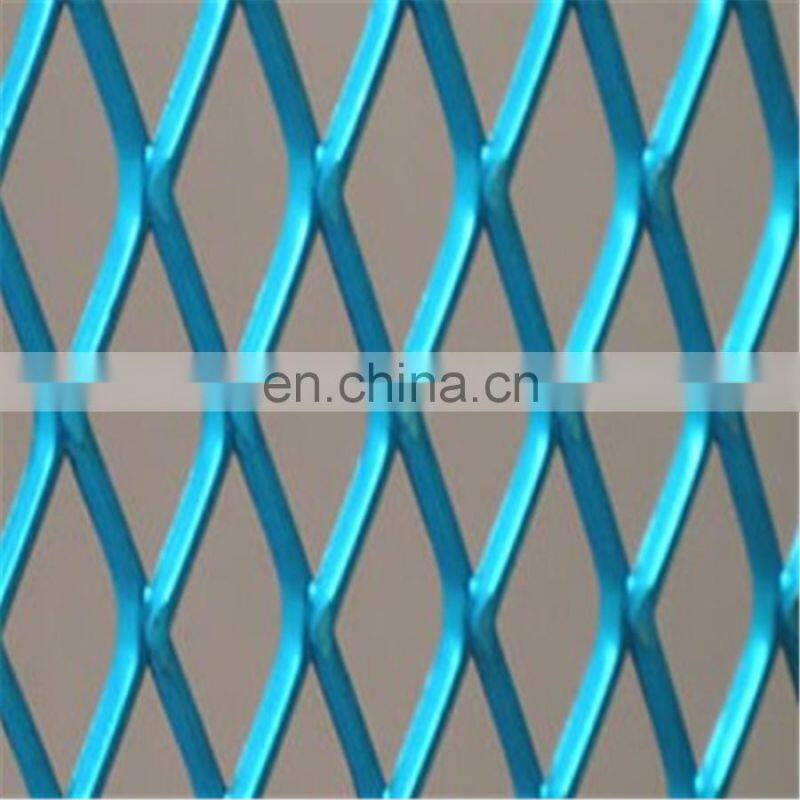

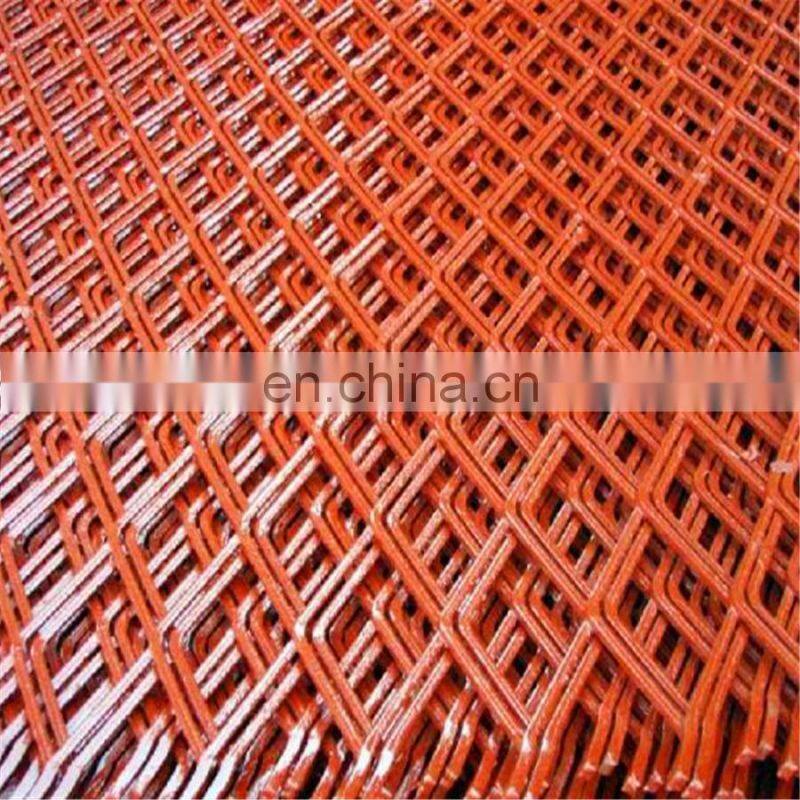

3. Product Show

4.Application

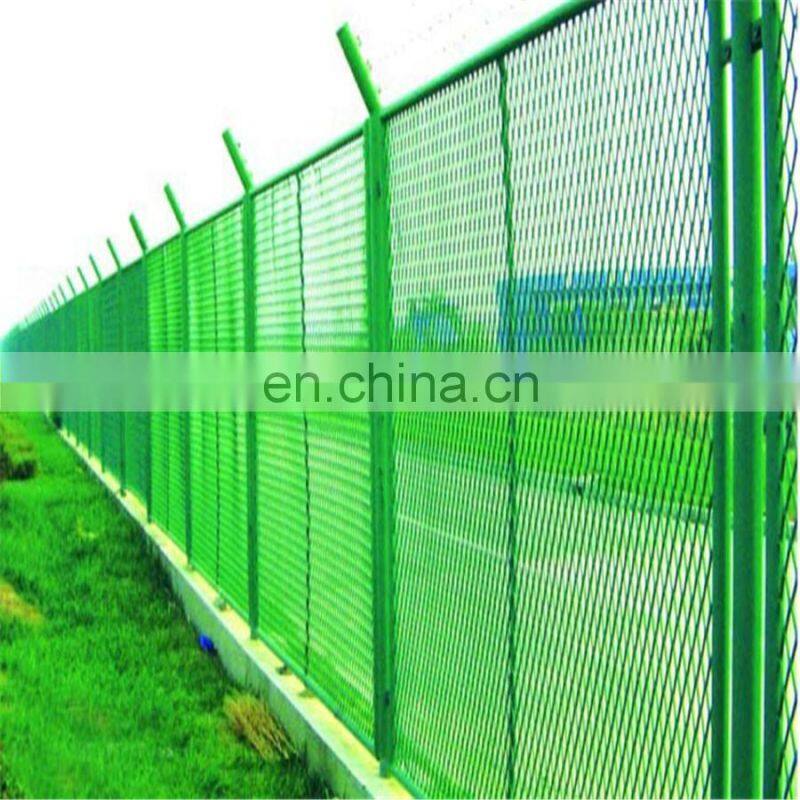

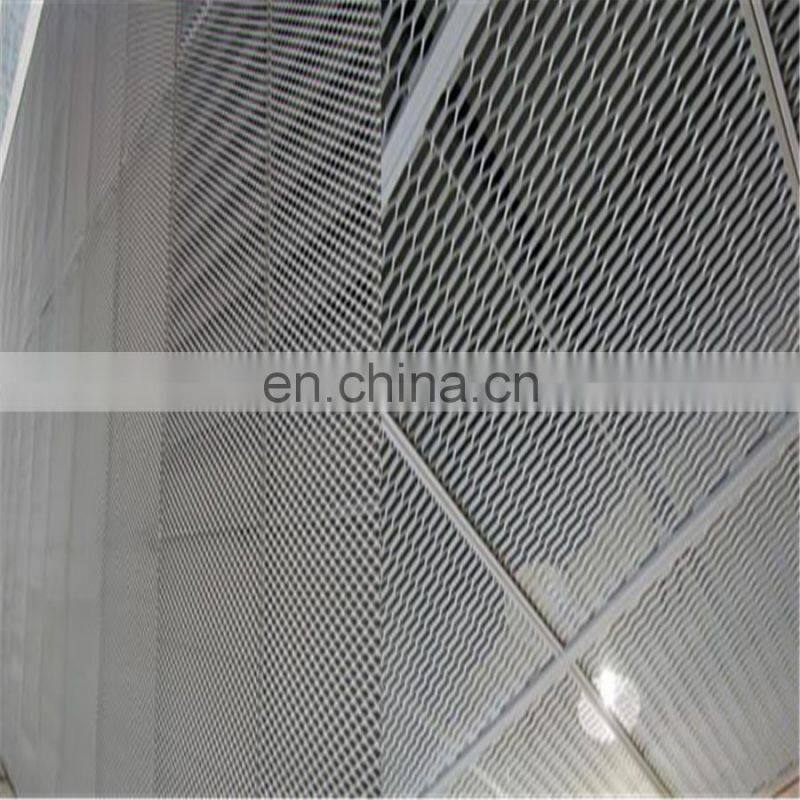

Mainly used for the construction of cement, machinery and equipment protection, handicrafts manufacturing, high-end speaker mesh enclosure. Highway guardrail, sports venues fence, the road green belt protection net. Heavy steel plate net can be used for tanker foot net, heavy machinery and boilers, oil wells, locomotive, million tons of ships and other platforms, escalators, walkways. Can also be used in the construction industry, roads, bridges to do reinforcement.
5.Package and Delivery
Packing Details
inside with a moisture-proof wrapping paper or other packaging materials outside wooden boxes or wooden pallets available or as customers' requirement.
Expanded Metal Mesh
Q1. What is your terms of packing?
A: Generally, inside with a moisture-proof wrapping paper or other packaging materials outside wooden boxes or wooden pallets available or as customers' requirement.
Q2. What is your terms of payment?
A: We usually accept Trade Assurance and Western Union. Also as your requirement.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 20-30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Welcome to Dongjie ! http://www.dongjiewiremesh.en.china.cn
