Chicken Coops for Bird Cage Expanded Metal Mesh
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Mopping Small Hole Aluminium Foil Expanded Metal Mesh
-
Ventilated Aluminum Facade Perforated Sheet Metal Panels
-
Wind and Dust Proof Galvanized Perforated Metal Sheet Malaysia
-
Factory Supplied PVC Coated Perforated Metal Mesh Screen
-
China Factory Wholesale Architectural Wind Dust Wave Net Perforated Corrugated Metal Panel
-
Tennis Court Fence Netting Aluminum Wire Mesh for Decoration
Product Description
Expanded Metal Mesh
Expanded Metal is manufactured in 2 ways - Flattened and Raised.
Raised Expanded metal, also referred to as standard expanded metal, is the format of steel, aluminum or stainless steel after it has been put through the expanding press. The shearing and stretching of the expanding process creates strands and bonds that are set at a uniform angle to the plane on the sheet. This adds strength and rigidity to the material, while providing a directional skid-resistant surface.
Flattened Expanded metal is manufactured by passing the raised expanded sheet through a cold roll reducing mill. This turns the strands and bonds down to provide a flattened surface, reducing the thickness (gauge) and elongating the pattern. Expanded Grating is milled in a similar manner to expanded metal.
Ask for a Quote >>>>>>

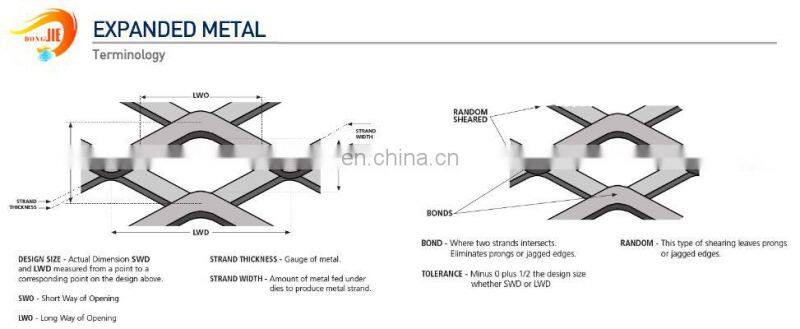

| Expanded Metal Mesh Specifications | |||||||
| Stytle | LBS.PER4 X 8 Sheet | Design Size(IN.) | Strand Width(IN.) | Overall Thickness(IN.) | %Open Area | ||
| Plain | Galv.WT | SWD | LWD | Width | |||
| 3/16''#22 | 18.0 | N/R | 0.203 | 0.500 | 0.047 | 0.070 | 55 |
| 3/16''#20 | 29.0 | N/R | 0.203 | 0.500 | 0.063 | 0.080 | 40 |
| 1/4''#20 | 27.5 | N/R | 0.312 | 1.000 | 0.072 | 0.130 | 54 |
| 1/4''#18 | 36.5 | N/R | 0.312 | 1.000 | 0.072 | 0.130 | 54 |
| 5/16''#20 | 18.0 | N/R | 0.333 | 1.000 | 0.063 | 0.125 | 60 |
| 5/16''#18 | 33.0 | N/R | 0.333 | 1.000 | 0.094 | 0.170 | 48 |
| 1/2''#20 | 14.0 | 16.0 | 0.500 | 1.200 | 0.072 | 0.140 | 80 |
| 1/2''#18 | 22.5 | 27.0 | 0.500 | 1.200 | 0.088 | 0.172 | 72 |
| 1/2''#16 | 27.5 | 31.0 | 0.500 | 1.200 | 0.087 | 0.175 | 65 |
| 1/2''#13 | 47.0 | 55.0 | 0.500 | 1.200 | 0.096 | 0.204 | 57 |
| The above specifications for your reference,we can make according to your requirement. | |||||||

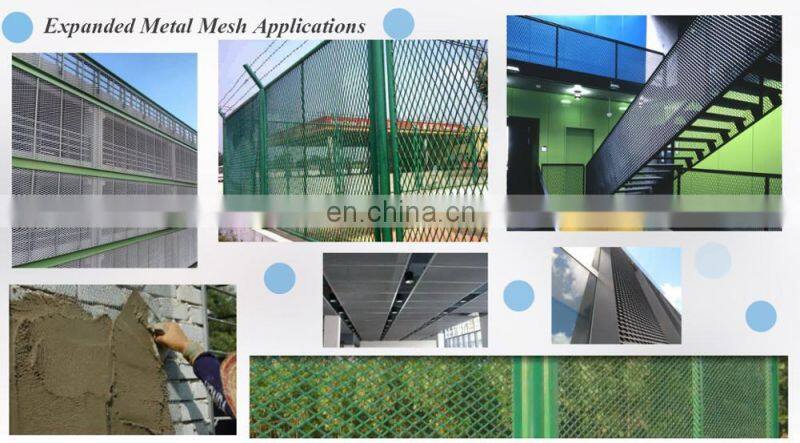

Applications
Manufacture Process
