J Type Concrete Expansion M16 Stainless Steel Anchor Bolt

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Specification :
Standards : ASTM F1554, ASTM / ASME / BS / DIN / BS EN ISO
Size : Nom Dia: 1" to 4" [M12-M100] *Tailor made if required.
Length : As Per Standard or Upto any Length
Threads : UNC, 8UN, UNF, Metric Coarse & Fine Series

Material & Grades

Stainless Steel Anchor Bolts :
304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Duplex & Super Duplex Steel Anchor Bolts :
UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462
Nickel Alloy Anchor Bolts :
UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS
6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

Details

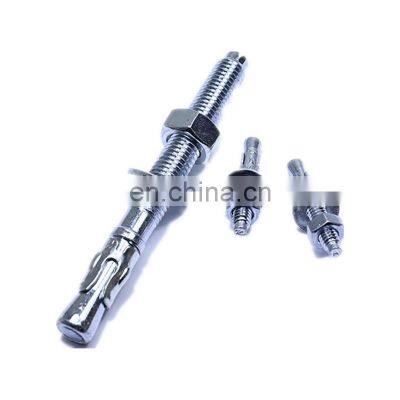

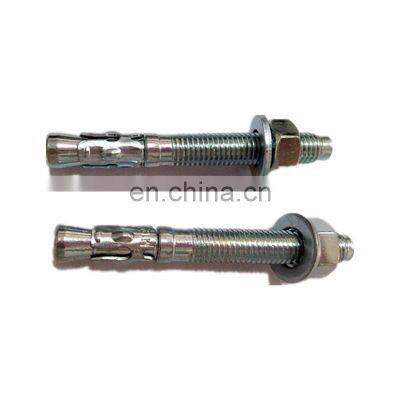

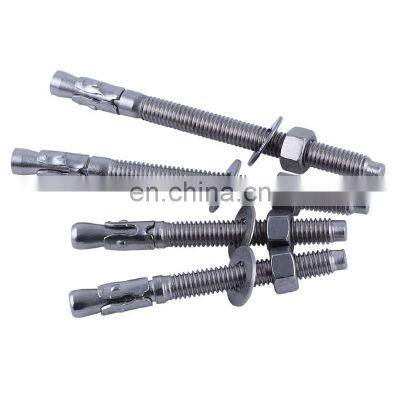

This carbon steel wedge anchor is a non-bottom bearing, wedge-style expansion anchor for use in solid concrete, lightweight concrete, and even grout-filled concrete masonry. Use this heavy-duty wedge anchor bolt to secure flanges, plates etc.

Features:
• Non-Bottom Bearing Bolt
• For Fastening Items To Concrete
• Zinc Plated Finish Ideal For Indoor Use
• Designed For Use In Solid Concrete Or Grout-Filled Masonry

Wedge Bolt
Wedge Bolt DiameterWedge-BitSizeANSI Drill Bit RangeFixture Hole Clearance1/4”1/4”.255”- .259”5/16”7/16”3/8”3/8”.385” - .389”7/16”
9/16”1/2”1/2”.490” - .495”9/16”3/4”5/8”5/8”.600” - .605”11/16”15/16”3/4”3/4”.720” - .725”13/16”1-1/8”Hole Depth - The depth of the hole to be drilled in the base material must be a minimum of one anchor diameter deeper than the
depth the wedge bolt penetrates the base material. This provides space for the dust as it forms during the installation process
and prevents it from interfering with the installation process.
Minimum Embedment - Each diameter of wedge bolt requires a different minimum embedment of the wedge bolt into the base material:
Wedge Bolt DiameterMinimum Embedment1/4”1”3/8”1-1/2”1/2”1-3/4”5/8”2-1/2”3/4”3”Determining Anchor Length - Adding the thickness of the material being fastened plus the minimum embedment of the diameter of
wedge bolt being used can determine the minimum length of wedge bolt for any application.
Torque Values - The wedge bolt should not be over-torqued once installed in the base material because this could cause stripping
of the threads and spinning of the wedge bolt in the hole. The maximum torque values for each diameter of wedge bolt is based on
the psi of the base material that the wedge bolt is installed in:
Wedge Bolt Diameter2000 PSI Concrete4000 PSI Concrete6000 PSI Concrete1/4”510103/8”3040401/2”4560605/8”7595953/4”150200200

Specification

item	value
Finish	ZINC, Plain
Material	Stainless Steel, Steel
Place of Origin	China
	Shanghai
Brand Name	Ruici
Model Number	RC-EXP-BLT
Standard	ANSI
Material	Stainless Steel
Surface treatment	Hot Dip Galvanized
Size	M2.5-M100
Application	Metal Buliding
Packing	Cartons+plastic Bags
Keyword	Types Nuts Bolts
Thread type	UNC UNF METRIC INCH
Delivery time	5-15 Days
Standard	ASTM F1554
Service	OEM Customized Services

Packing & Delivery

Caron box and pallet, or plywood case

Company Profile

Dalian Ruici Industry Co., Ltd. is a leading manufacturer and exporter of high profile casting, machining, molds and assembly products, etc. Featuring optimum combination of price and performance, our products are widely used on valves, water pumps, speed reducers, ejectors and automobiles, etc. With over two decades of perseverance and dedication in production and total quality management, we have established a long-term loyal customer base in North America, Europe, East Asia, and Mid East. Our core competitiveness edge lies in total customer solutions. By integrating manufacturing with foreign trade sectors, we can provide total customer solutions by guaranteeing the delivery of right products to the right place at the right time, which is supported by our abundant experiences, powerful production capability, consistent quality, diversified product portfolios and the control of the industry trend as well as our mature before and after sales services. We'd like to share our ideas with you and welcome your comments and questions.

FAQ

1. who are we?
We are based in Liaoning, China, start from 2005,sell to Western Europe(60.00%),North America(20.00%),Southeast Asia(10.00%),Oceania(10.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Castings,Forgings,Stampings,Valve Parts,CNC Machining

4. why should you buy from us not from other suppliers?
Over 20 years export experience on casting and machining business, advanced production(CNC and machining center) and inspection equipments (CMM), fully quality control system(ISO 9001:2008), perfect after-sales service. Main market Germany, Japan, USA.....

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,Japanese
