Home > Industrial Equipment & Components > Fastener & Fitting > Bolts > Carbon Steel Double Ended Stud Bolts Rough Pole Clamping Type Coarse Teeth

Carbon Steel Double Ended Stud Bolts Rough Pole Clamping Type Coarse Teeth

Name: Carbon Steel Double Ended Stud Bolts Rough Pole Clamping Type Coarse Teeth
Brand: FLRS
SKU: 171063355
Availability: InStock

Carbon Steel Double Ended Stud Bolts Rough Pole Clamping Type Coarse Teeth thumbnail-1

Carbon Steel Double Ended Stud Bolts Rough Pole Clamping Type Coarse Teeth thumbnail-2

Carbon Steel Double Ended Stud Bolts Rough Pole Clamping Type Coarse Teeth thumbnail-3

Carbon Steel Double Ended Stud Bolts Rough Pole Clamping Type Coarse Teeth photo-1

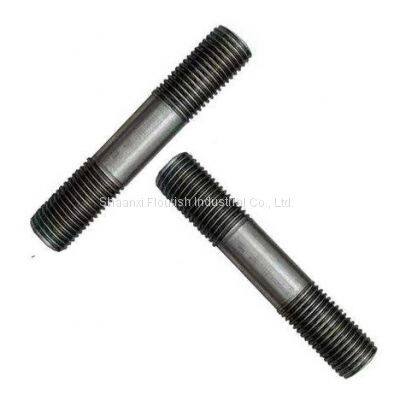

Carbon Steel Double Ended Stud Bolts Rough Pole Clamping Type Coarse Teeth photo-2

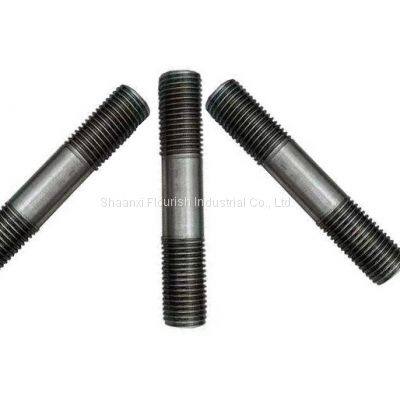

Carbon Steel Double Ended Stud Bolts Rough Pole Clamping Type Coarse Teeth photo-3

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

FLRS

Place of Origin:

China

Model Number:

B-083

Contact Supplier Request Quote Chat Now

Shaanxi Flourish Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xingang or Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name FLRS

Place of Origin China

Model Number B-083

Standard Other, DIN,ISO, JIS, EN, BS, SH,ASME Or Customized As Your Request

Name:	Rough Pole Clamping Type Studs Coarse Teeth	Material:	Carbon Steel
Standard:	ASME B18.31.2	Finish:	Black Oxide
Table:	Table2	Thread:	Coarse Teeth
High Light:	Double Ended Stud Bolts Coarse Teeth, Rough Pole Clamping Stud Bolts, Carbon Steel Double Ended Stud Bolts

ASME B18.31.2 Carbon Steel High Strengthl Stud Bolt / Black Oxide Rough Pole Clamping Type Studs Coarse Teeth

Double-headed stud connection features:

1,One of the connected parts is thicker, blind holes are made in it and threads are cut in the blind holes.

2. Thin parts with through-holes and no threads. Connected by double-headed studs with nuts.

3,Allows multiple assembly and disassembly without damaging the connected parts. The connection is made with a double-ended stud.

Double-headed stud connection for the following occasions:

1,Usually used for one of the connected parts is too thick, inconvenient to pierce, compact structure requirements, must use the blind hole connection or must be often assembled and disassembled.

2, double-headed stud connection is a double-headed stud screwed into one of the connected parts of the screw hole, the other end through the other connected parts through the hole, and then set the washer, tighten the nut. This connection is often used when one of the connected parts is too thick or not convenient for assembly and disassembly. When dismantling, usually only remove the nut and not the stud, to prevent damage to the screw holes of the connected parts by repeated assembly and disassembly. Mainly used for one of the connected parts is thicker, requires a compact structure, or because of frequent disassembly, should not be used for bolting occasions.

Drawing:

Size:

d	1/4	5/16	3/8	7/16	1/2	9/16	5/8	3/4	8/7	1	1-1/8	1-1/4
p	20	18	16	14	13	12	11	10	9	8	7	7
cmax	0.1	0.111	0.125	0.143	0.154	0.167	0.182	0.2	0.222	0.25	0.286	0.286
ds max	0.25	0.3125	0.375	0.4375	0.5	0.5625	0.625	0.75	0.875	1	1.125	1.25
ds min	0.241	0.303	0.364	0.426	0.488	0.55	0.611	0.735	0.859	0.985	1.106	1231
d	1-3/8	1-1/2	1-3/4	2	2-1/4	2-1/2	2-3/4	3	3-1/4	3-1/2	3-3/4	4
p	6	6	s	4.5	4.5	4	4	4	4	4	4	4
cmax	0.333	0.333	0.4	0.444	0.444	0.5	0.5	0.5	0.5	0.5	0.5	0.5
ds max	1.375	1.5	1.75	2	225	2.5	2.75		3.25	3.5	3.75	4
ds min	1.354	1479	1.727	1.975	2.225	2473	2.723	2.973	3.223	3.473	3.723	3.973
