Product Description

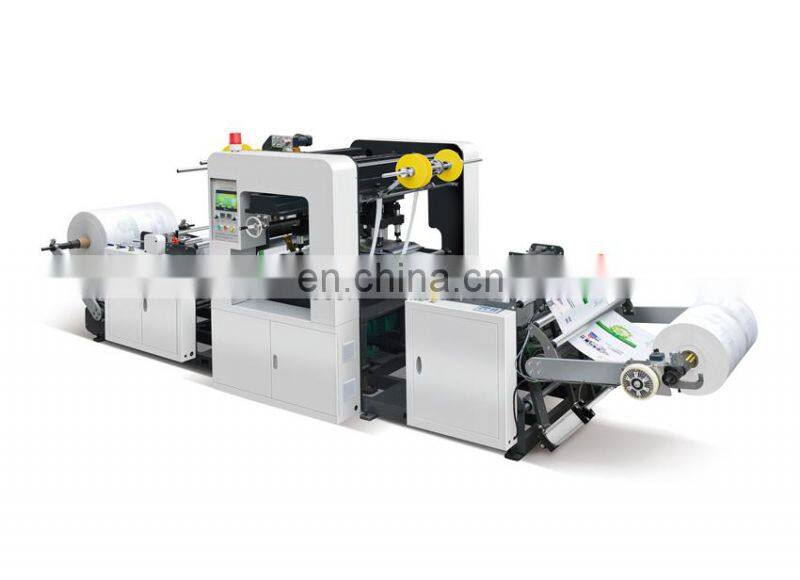

UT1200 Automatic Biodegradable PP Polypropylene Nonwoven Fabric Cloth Roll Box Kraft Paper Bag Hot Foil Stamping Machine
Video demonstration only for reference
Video : /watch?v=9GylPh91BLQ
Features:
1. Simple operation: one person can handle all the process of the machine.
2. Full stamping: The way to hot stamping on the nonwoven fabric is different from the way to work on the paper. As nonwoven fabric has grooves on the surface, the special designed structure on the machine ensures that each single stamping is full and clean.
3. Stamping Plate adjustment: The stamping plate can be adjusted freely in both longitudinal and transverse direction. In addition the plate position can be operated easily only by inputting the number on the touch screen.
4. Less foil waste: Two independently computer controlled stamping stations bring to easy adjustment and less foil waste when stamping on front and back side of the nonwoven bags in the same time.
5. Continuous foil feed: Double foil releasing rack guarantees that the stamping machine can work in non-stop mode when one roll of foil runs out.
6. Stamping time adjustment: hot stamping touching time can be adjusted based on actual job required.
Parameters:
Model |
UT1200 |
Foil stamping speed |
40-50pcs/min |
Stamping plate size |
300x500mm*2pcs |
Unwinding width |
1200mm |
Unwinding diameter |
1300mm |
Power apply |
380v 3phase 50/60hz |
Total power |
22kw |
Overall dimension |
6000x2000x1900mm |
Total weight |
4000kg |

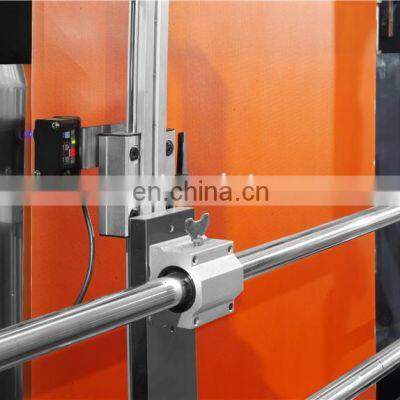

Eye Photocell Positioning
Stamping Pressure Adjustment

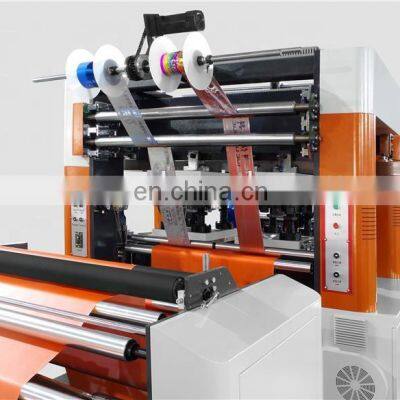

Max 4 Foil Roll Unwinding

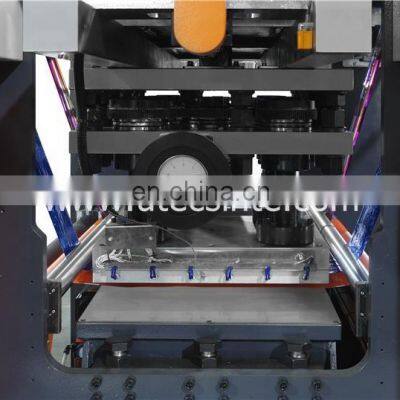

Heavyduty Stamping Station
Automatic Oil Lubrication
High-precision Positioning by Ball Screw
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
1.Q: What information should i let you know if i want to get a quotation?
A: Detailed size of your finished products in Max and Min?
B: Paper thickness in GSM
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
Wooden Case Loading and Transport
