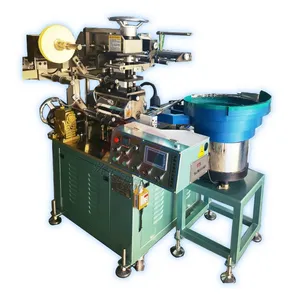

Automatic pen heat transfer machine Circular tube printing machine Marker pen whiteboard pen logo heat transfer machine manufacturer
Functional features:
1. Programmable controller control, programmable terminal LCD display, built-in various operation control programs and adjustable parameters.
2. Roller rotary heat transfer stamping, stamping head can adjust the front and back slope, so it can print small taper of circular workpiece.
3. With high-precision photocell (electric eye), the transfer paper with contact is tracked and controlled in place. The transfer paper without contact is fed at a fixed time.
4. Automatic feeding and unloading. It is suitable for mass production of stationery and cosmetics pipe fittings.
5. Using stepper motor to receive paper can greatly improve the positioning accuracy of transfer paper.
6. Hot stamping pressure, temperature, speed can be adjusted.
7. Built-in five-digit counter.
8. The stamping head is adjustable
Technical parameters:
Roller size: φ180×102mm
Hot printing workpiece size: φ8-20mm×170mm(can be customized according to size)
Hot stamping temperature selection range: room temperature ~280 degrees
Air pressure: 5-7bar
Max pressing pressure: 2138 (7bar)
Maximum hot stamping speed: 2000pcs/hr
Power supply: 110/220V 60/50H
Heating power: 1200W
Air consumption: 281L/mi
Dimensions: 1750×1100×1050mm
Weight: 480kg
