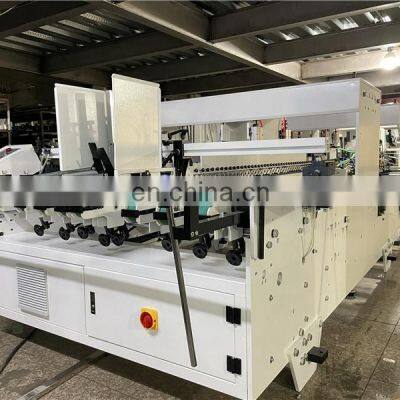

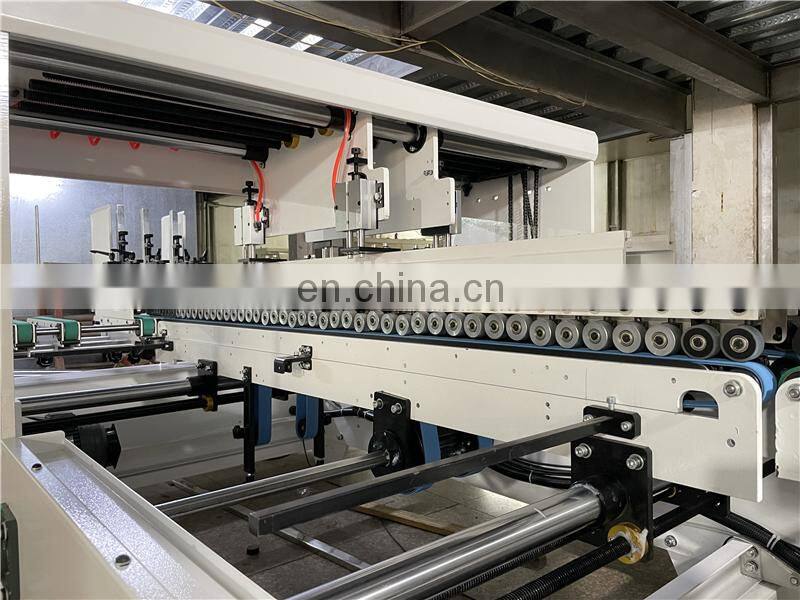

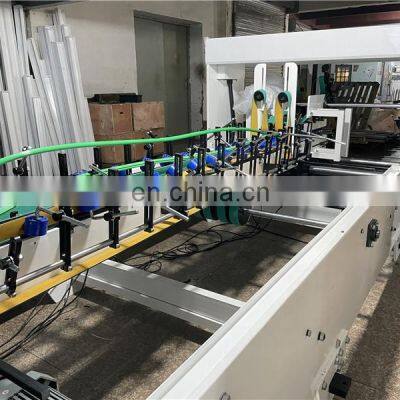

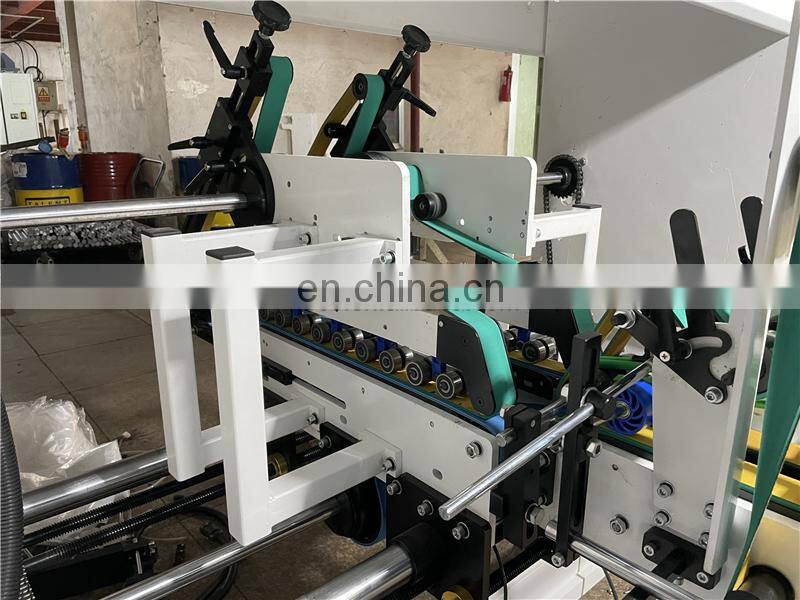

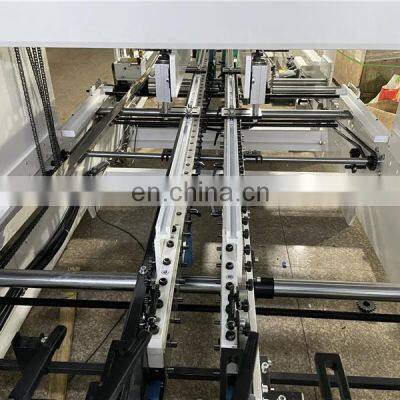

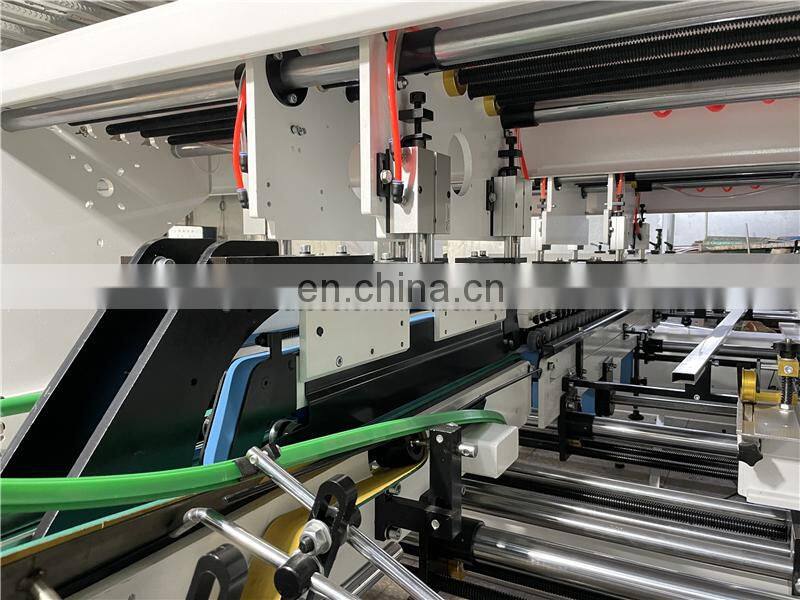

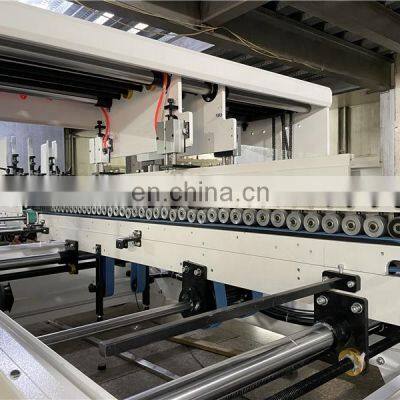

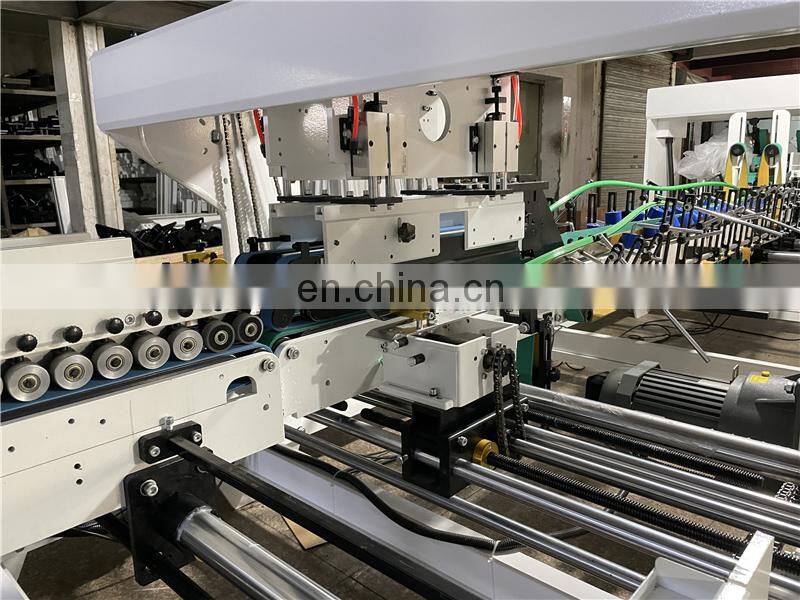

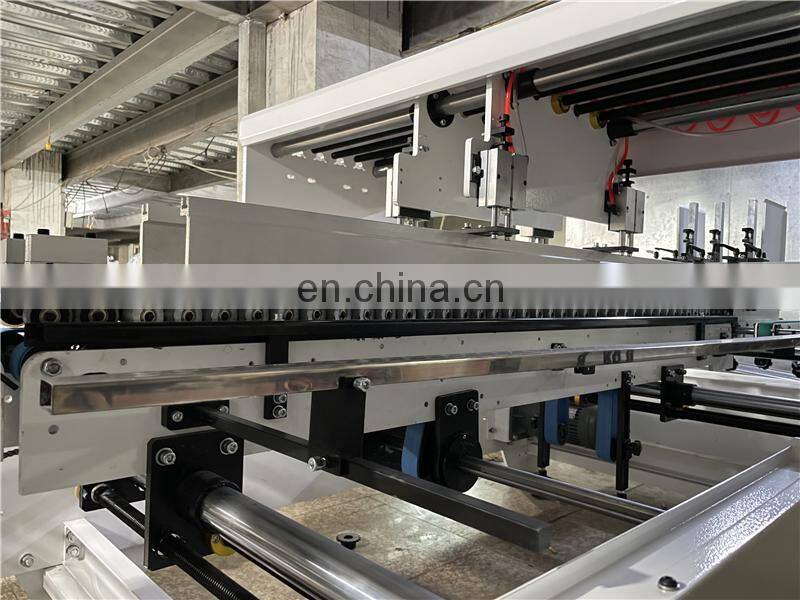

UFG1650B2A high speed Automatic french fry cake food delivery 3 5 ply corrugated carton paper box folding & gluing machine
Video demonstration only for reference
Video 1: /watch?v=LzyGwPNYOl8
Video 2: /watch?v=LjKhKJyI0EQ
Video 3: /watch?v=dfpNbq67acw
Features:
UFG-E is a new economic high speed machine with alignment correction function. It has two separate frequency converters controlling the front and rear for much convenient operation. This machine is widely used to produce various types of cardboard and corrugated cartons etc. Equipped with alignment guiding system, it makes corrugated cartons perfectly meeting the requirements of packaging industry. The speed can be turned up max to 220m/m.
Parameters:
|
Model |
UFG1050/1250/1450/1650/1850/2050B2A |
|
Paper type |
Cardboard 200-800g and A/B/C/E/F flute paper |
|
Max speed |
Max. 220m/minute |
|
Feeding way |
Automatic and continuously feeding |
|
Folding way |
Fold 2 and fold 4 are 180° |
|
Glue type |
Water-base cold glue |
|
Electric power |
9KW 380V50HZ 3PH |
|
Weight |
3400(3800)(4200)(4600)(5000)(5400)KG |
|
Dimension |
12000 x1600 (1800)(2000)(2200)(2400)(2600)x 1400mm |
Box Specification:
Common box size:
|
Model |
1050B2A |
1250 B2A |
1450 B2A |
1650 B2A |
1850B2A |
2050B2A |
|
A |
150-800 |
150-800 |
150-800 |
150-800 |
150-800 |
150-800 |
|
B |
200-900 |
200-1100 |
200-1300 |
200-1500 |
200-1700 |
200-1900 |
|
C |
Min:15 |
Min:15 |
Min:15 |
Min:15 |
Min:15 |
Min:15 |
|
D |
Min:120 |
Min:120 |
Min:120 |
Min:120 |
Min:120 |
Min:120 |
|
F |
Min:100 |
Min:100 |
Min:100 |
Min:100 |
Min:100 |
Min:100 |
The Patting Size
|
Model |
1050B2A |
1250 B2A |
1450 B2A |
1650 B2A |
1850B2A |
2050B2A |
|
A |
150-800 |
150-800 |
150-800 |
150-800 |
150-800 |
150-800 |
|
B |
280-900 |
280-1100 |
280-1300 |
280-1500 |
280-1700 |
280-1900 |
|
C |
Min:15 |
Min:15 |
Min:15 |
Min:15 |
Min:15 |
Min:15 |
|
D |
Min:120 |
Min:120 |
Min:120 |
Min:120 |
Min:120 |
Min:120 |
|
F |
Min:100 |
Min:100 |
Min:100 |
Min:100 |
Min:100 |
Min:100 |
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
