ML1040 CE Approved Heavy Duty Manual Feed Corrugated Paper Die Cutting and Creasing Machine, paperboard flatbed plane die cutter
- 1000 per Month
- T/T Credit Card
You May Like
-
ML930 Manual Flatbed Paper Die Cutting and Creasing Machine, Plastic PVC PET Cardboard Flat bed Die Cutter Punching Press
-
ML750 Manual Fed Carton Flatbed Die Cutting and Creasing Machine, corrugated cardboard Paper platen punching press
-
ML1200 industrial large beer jigsaw puzzle die cutting & creasing machine, flute corrugated board punching press cutter
-
ML2500 Large Hand Feed Corrugated Carton Die Cutting & Creasing Machine, Flat Bed Paper Cardboard Die Punching Cutter Press
-
ML2600 Industrial Fluting Carton Board Clam Manual Die Cutting Creasing Machine, Fruit Box Plane Die Punching Press Cutter
-
TYMB750 Manual Sheet Feed Paper Cardboard Card Hot Foil Stamping & Die Cutting Machine, plane Dieline die Cutter
Product Description

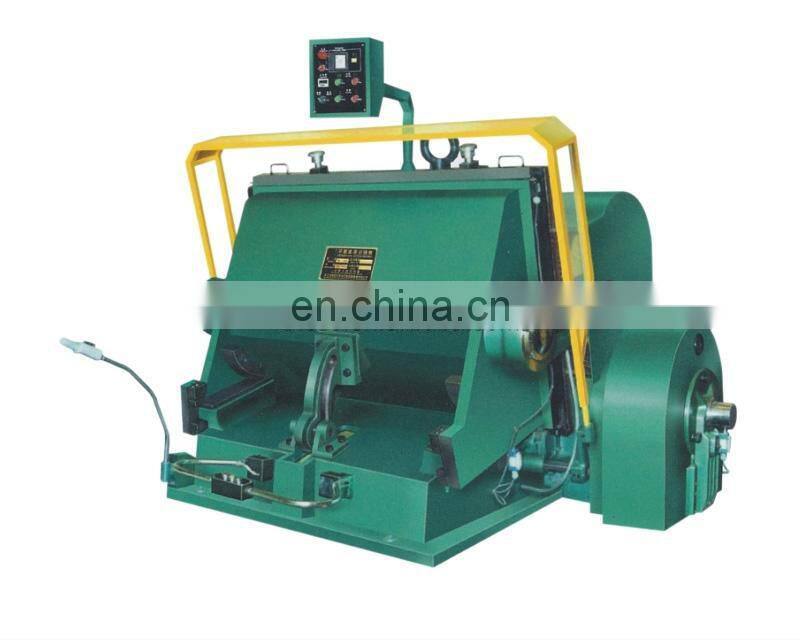

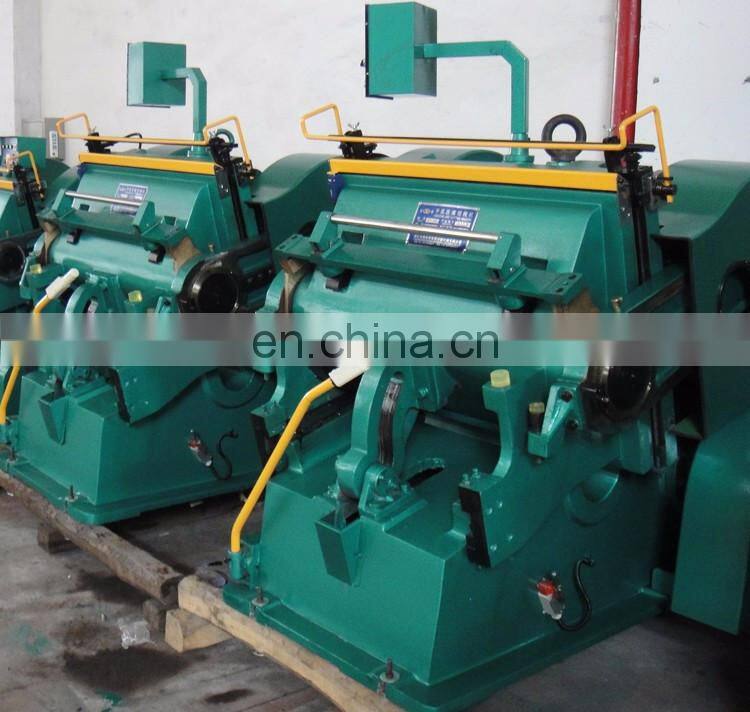

ML1040 CE Approved Heavy Duty Manual Feed Corrugated Paper Die Cutting and Creasing Machine, paperboard flatbed plane die cutter
Video demonstration only for reference
Video 01: /watch?v=-qMwRB4c7Jw
Video 02: /watch?v=yjOq1u-Gig8
This die cutting & creasing machines are widely used in paper converting and plastic industry. It can cuts and crease a lot of products such as cardboard, corrugated board, plastic and leather etc. The machine features high durability and stability.
Features:
1. Sliding bearings are made of high quality alloy cooper ensuring to get effect of anti-friction and less shakings.
2. Flywheel applies large moment of force and large pressure.
3. One casting structure by using top-grade materials provides high strength.
4. Single plate electromagnetic clutch is sensitive and reliable.
5. Operation altitude is reasonably arranged where the movable platen can be opened to its optimum.
6. Reliable safety system
7, Centralized automatic lubricating system, stainless steel plate and pneumatic plate push up are optional to be equipped.
Parameters:
Model |
Inner rule size (mm) |
Speed (strokes/min) |
Max Rule length (m) |
Motor power (Kw) |
Overall dimension (mm) |
Weight (kg) |
ML750 |
750x520 |
25±2 |
<15 |
2.2 |
1450x1600x1450 |
1900 |
ML930 |
930x670 |
23±3 |
<25 |
4 |
1750x1900x1700 |
3000 |
ML1040 |
1040x720 |
23±3 |
<28 |
4 |
2000x2010x1900 |
3500 |
ML1100 |
1100x800 |
20±2 |
<32 |
4 |
2020x2010x1900 |
4500 |
ML1200 |
1200x820 |
20±2 |
<32 |
5.5 |
2020x2020x1950 |
5000 |
ML1300 |
1300x920 |
15±2 |
<40 |
5.5 |
2600x2100x1950 |
6000 |
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.

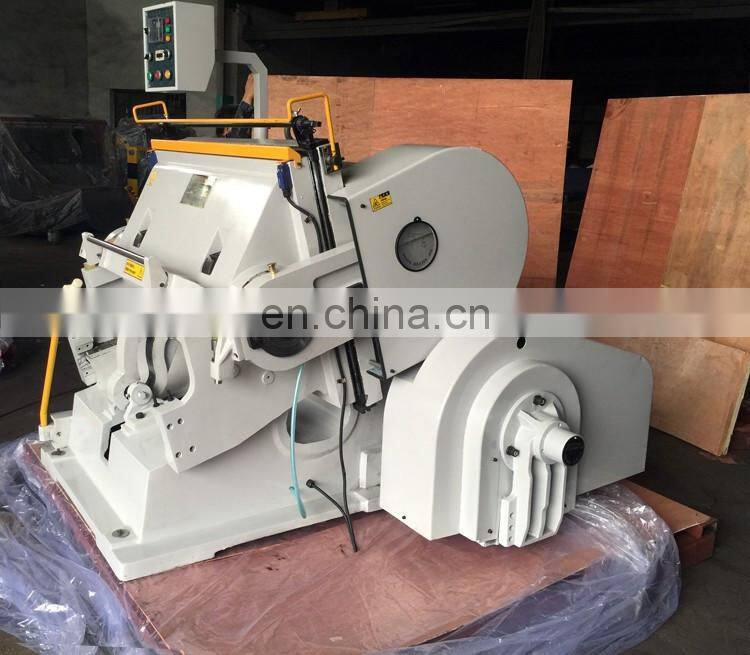

Wooden Case Loading and Transport
YOU ARE WELCOME TO CONTACT US ANYTIME AVAILABLE.
Mobile/Whatsapp/Wechat: +86-18258286679
Email: utecs@ , utecsinter@ , danielsuer@
Skype: danielsuer
Web:
